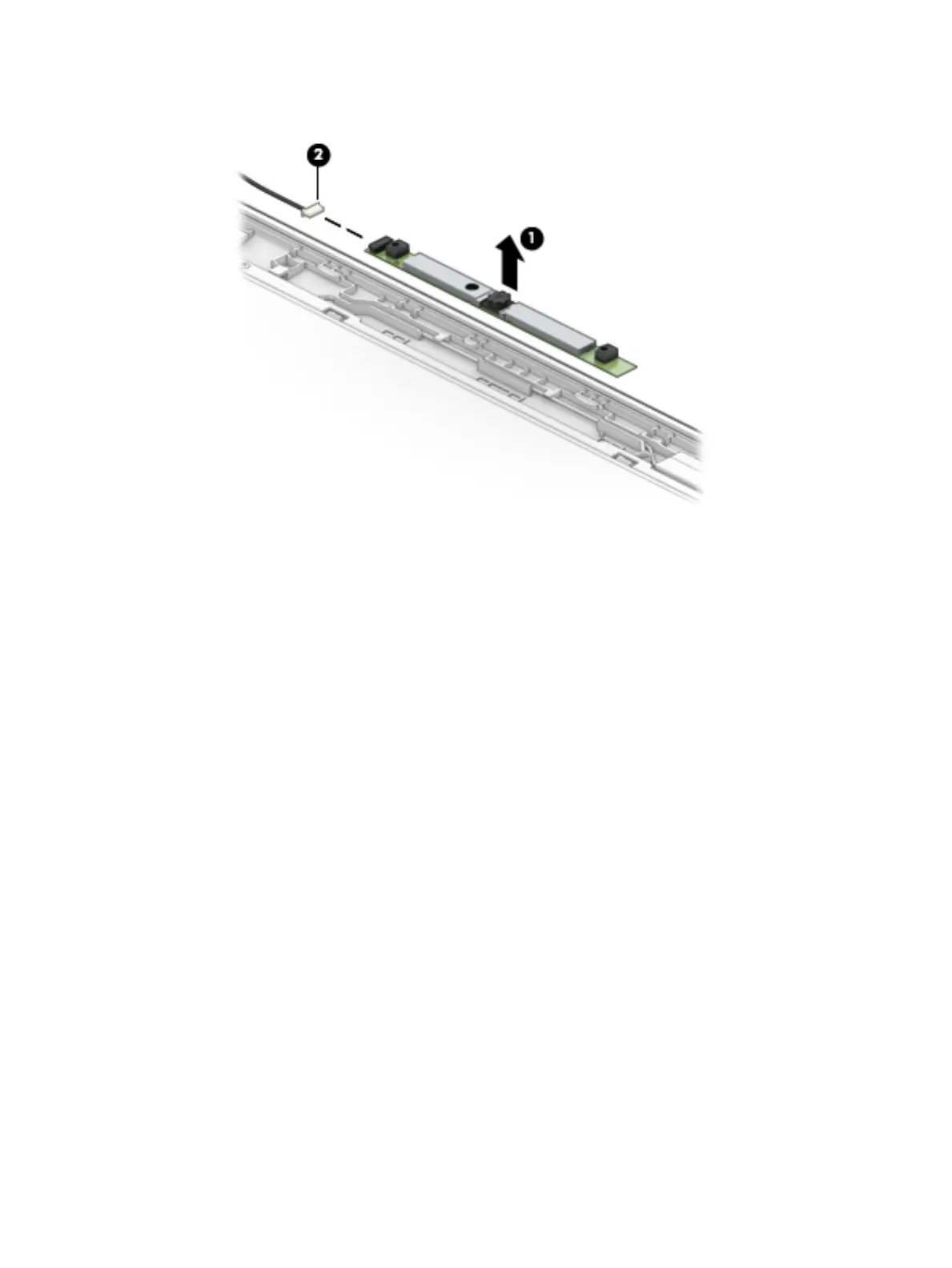

c. Disconnect the webcam/microphone module cable (2) from the webcam/microphone module.
d. Remove the webcam/microphone module.
The webcam/microphone module is available using spare part number M54840-001.
10. If it is necessary to replace the display panel:
a. Remove the display bezel.
b. Remove the six Phillips PM2.0×2.8 screws (1) that secure the display panel and display panel bracket
to the display back cover.
c. Remove the display panel bracket (2).
The display panel bracket is available using spare part number xxx.
ENWW Component replacement procedures 43
