HP Chromebook 11a

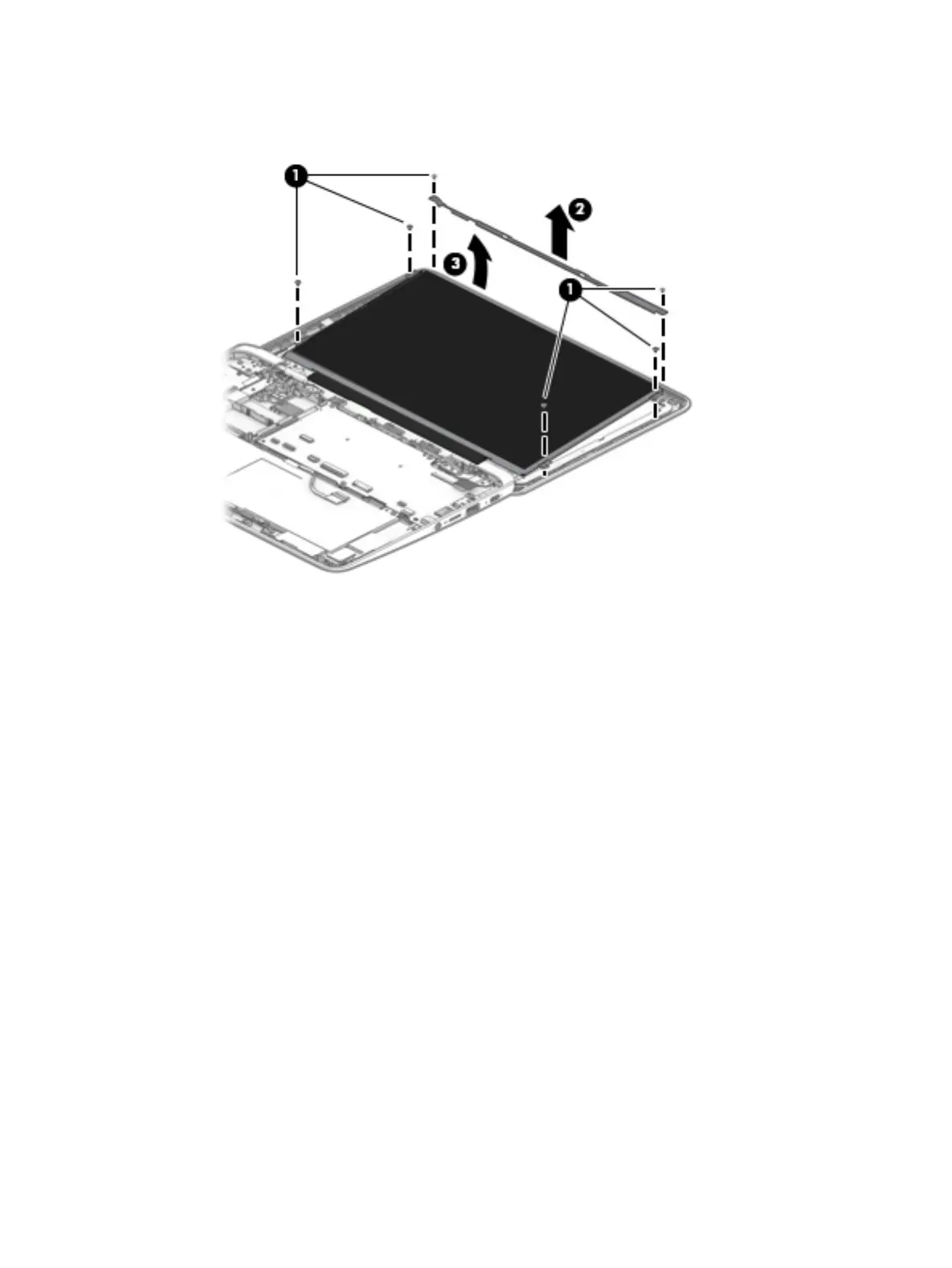

d. Lift the top edge of the display panel (3) and swing it up and forward until it rests upside down on the
computer.
e. Release the adhesive support strip (1) that secures the display panel cable connector to the display
panel.
f. Disconnect the display panel cable (2) from the display panel.
44 Chapter 5 Removal and replacement procedures for authorized service provider parts ENWW
