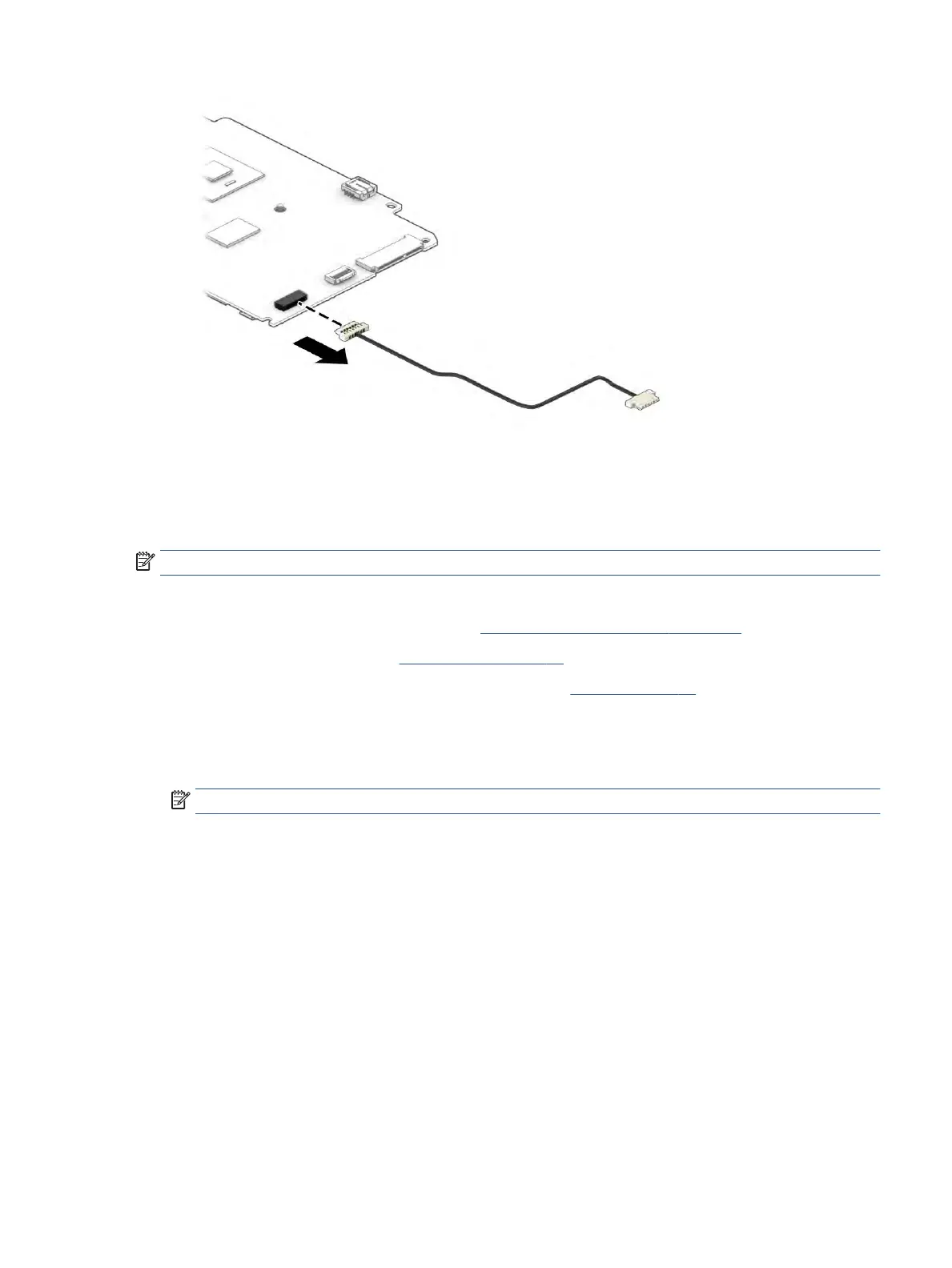

Reverse this procedure to install the power connector cable.
Display assembly
To remove and disassemble the display assembly, use these procedures and illustrations.
NOTE: Display assemblies are oered as spare parts only at the subcomponent level.
Before removing the display panel, follow these steps:
1. Prepare the computer for disassembly (see Preparation for disassembly on page 26).
2. Remove the bottom cover (see Bottom cover on page 26).
3. Disconnect the battery cable from the system board (see Battery on page 28).
Remove the display assembly:
1. Disconnect the antenna cables from the WLAN module (1), and then remove the cables from the clips
(2).
NOTE: One antenna cable routes through each hinge.
Component replacement procedures 39
