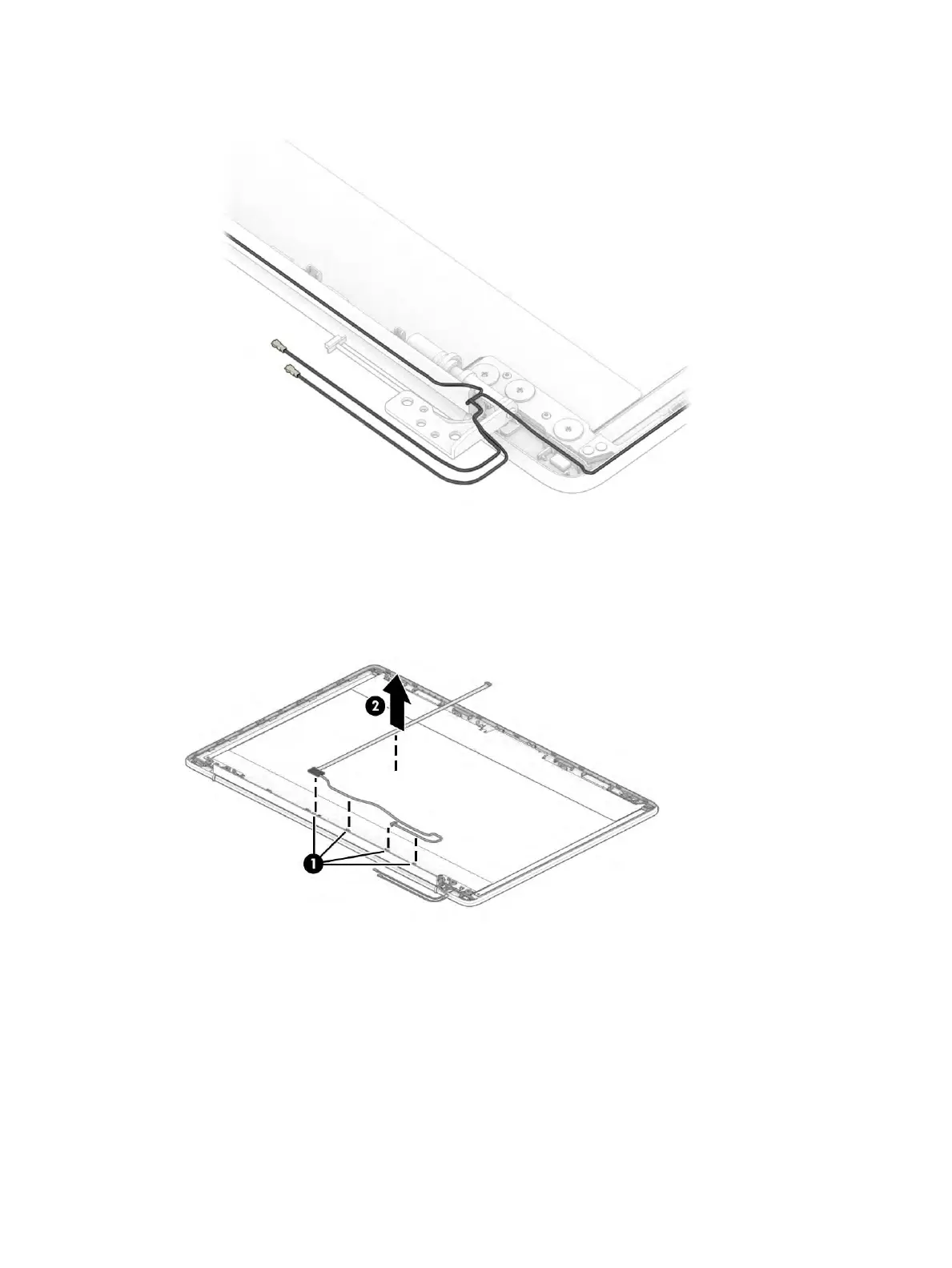

f. For removal and reinstallation, note the antenna cable routing around the right hinge.
10. If you need to remove the camera cable, remove the cable from the routing along the bottom of the
display rear cover (1), and then peel the camera cable o the cover (2). The cable is secured with
adhesive.
The camera cable is available as spare part number L91541-001.
46 Chapter 5 Removal and replacement procedures for authorized service provider parts
