Display assembly subcomponents

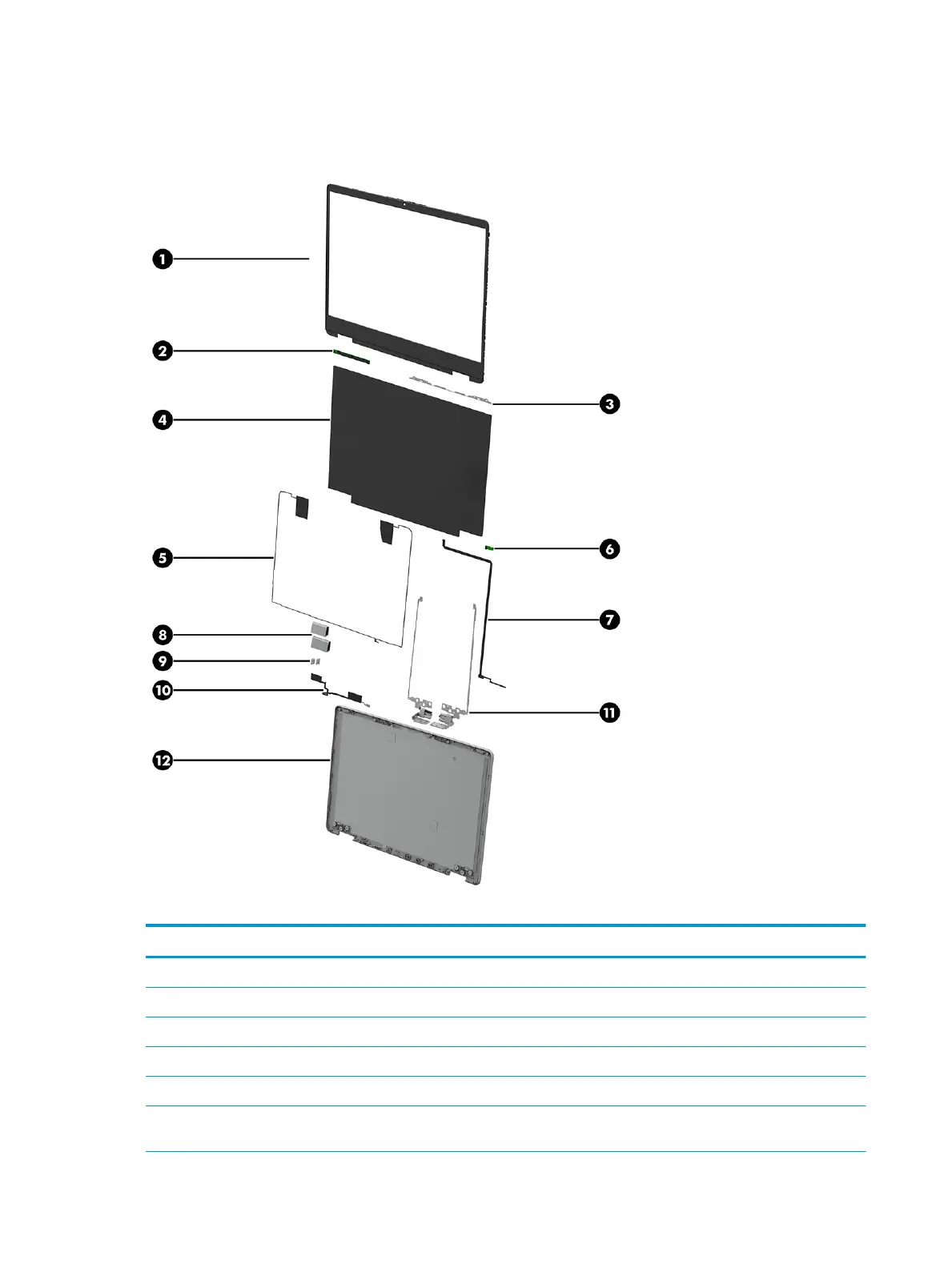

To identify the display assembly subcomponents, use this illustration and table.
Table 3-2 Display component descriptions and part numbers
Item Component Spare part number
(1) Display bezel M15307-001
Adhesive Kit (not illustrated, for use on display bezel) M27496-001
(2) Webcam/microphone module (includes double-sided adhesive) M26773-001
(3) Display panel bracket (not included as a spare part component)
(4) 35.6 cm (14.0 in) display panel:
FHD (1920×1080) LCD, antiglare, WLED, UWVA 45, eDP, slim, touchscreen display panel with narrow
bezel; typical brightness: 250 nits
M15330-001
14 Chapter 3 Illustrated parts catalog ENWW
