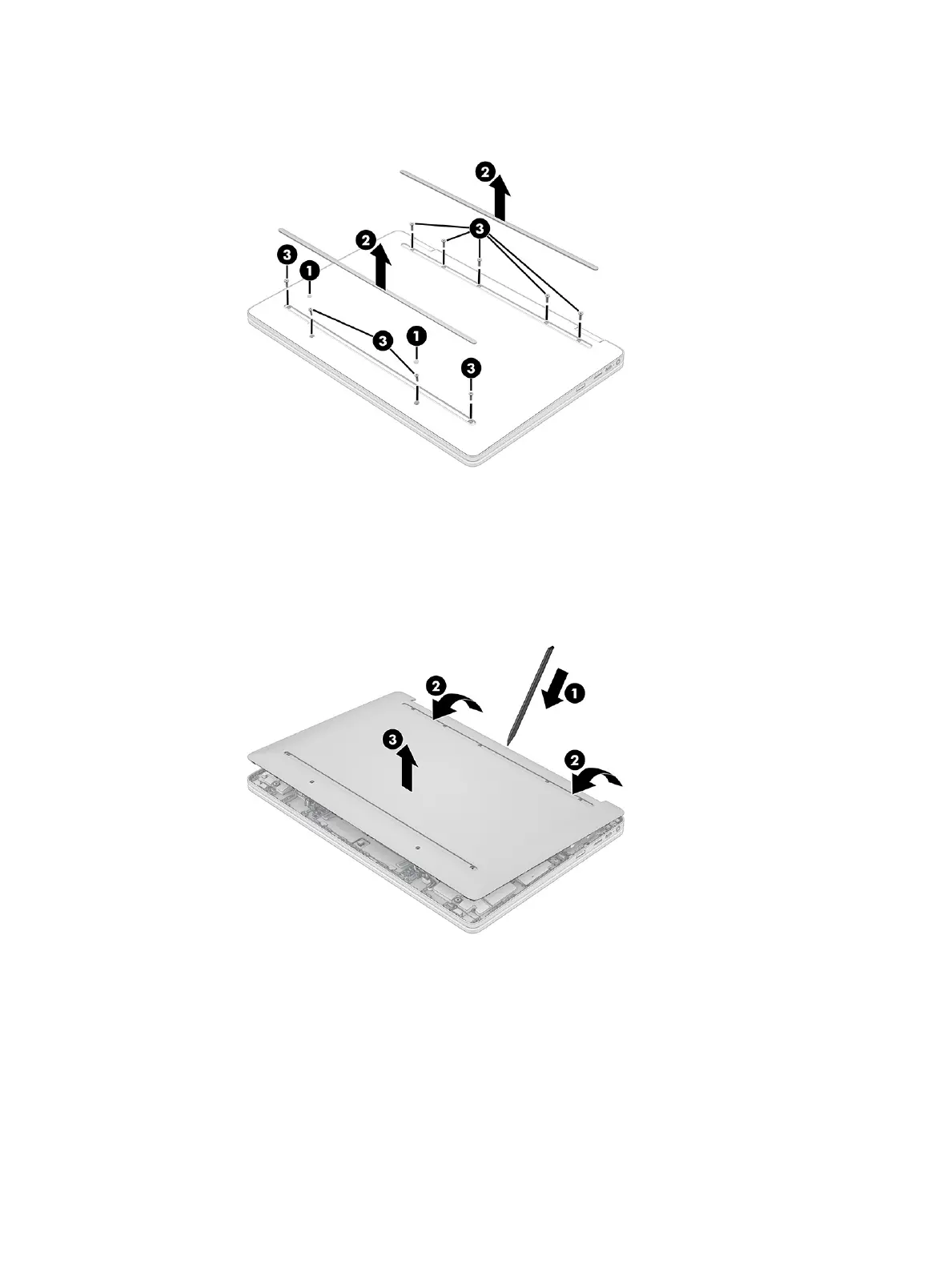

3. Remove the nine Phillips M2.0 × 7.6 screws (3) that secure the bottom cover to the computer.
4. Use a nonmarking, nonconductive tool (1) to release the rear edge of the bottom cover from the computer
(2).
5. Remove the bottom cover (3) from the computer.
To replace the bottom cover, reverse the removal procedures.
Battery
To remove the battery, use this procedure and illustration.
ENWW Component replacement procedures 27
