To reassemble and replace the display assembly, reverse the removal procedures.
Touchpad cable

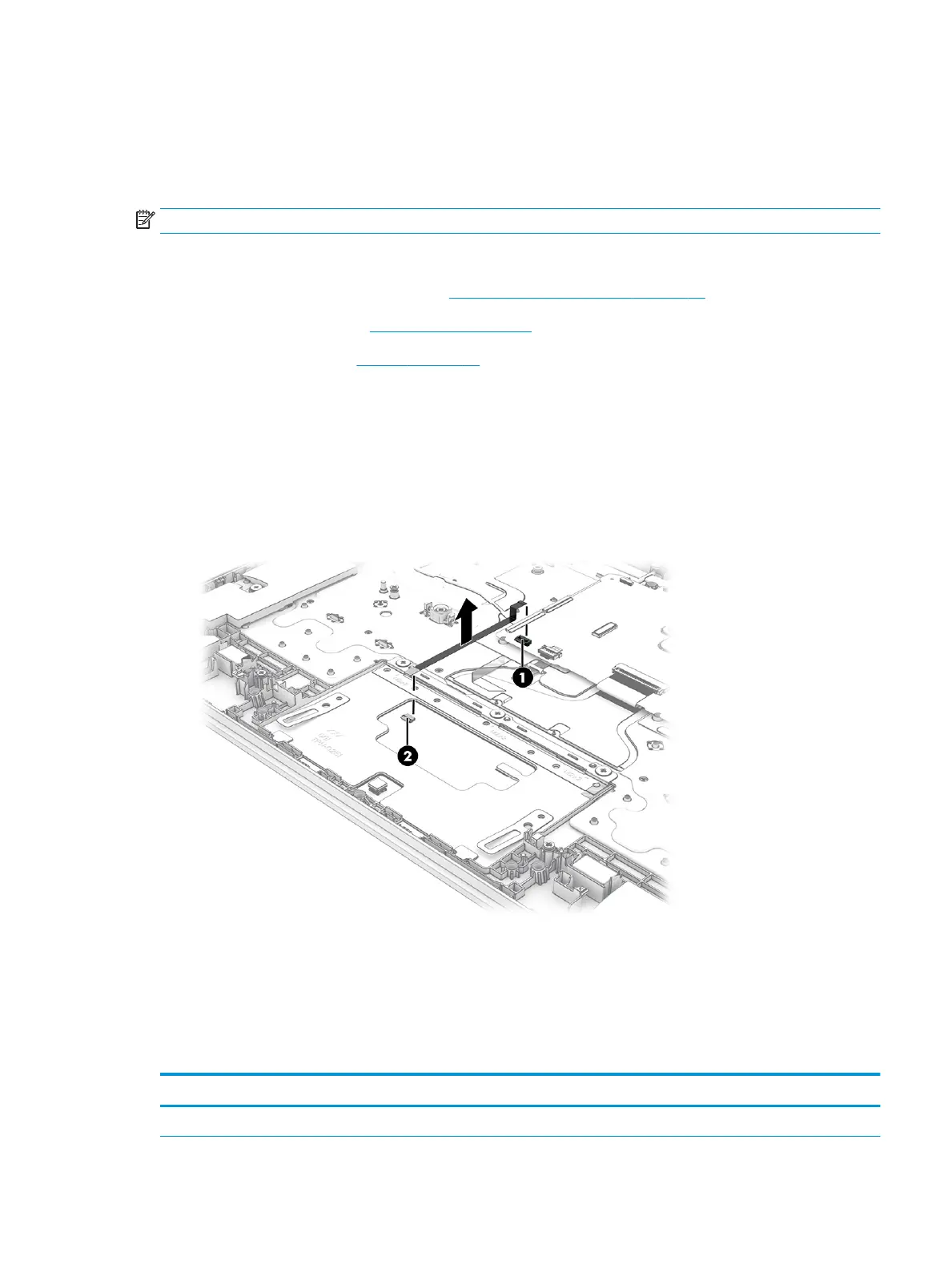

To remove the touchpad cable, use this procedure and illustration.
NOTE: The touchpad cable is available as spare part number M15293-001.
Before removing the touchpad cable, follow these steps:
1. Prepare the computer for disassembly (Preparation for disassembly on page 26).
2. Remove the bottom cover (Bottom cover on page 26).
3. Remove the battery (see Battery on page 27).
Remove the touchpad cable:
1. Release the ZIF connector (1) to which the touchpad cable is connected, and then disconnect the touchpad
cable from the system board.
2. Release the ZIF connector (1) to which the touchpad cable is connected, and then disconnect the touchpad
cable from the touchpad.
3. Remove the touchpad cable (3).
To replace the touchpad cable, reverse the removal procedures.
Touchpad
To remove the touchpad, use this procedure and illustration.
Table
5-8 Touchpad description and part number
Description Spare part number
In natural silver nish for use with computer models in ceramic white, forest teal, and mineral silver nish M15295-001
ENWW Component replacement procedures 47
