Table 5-8 Touchpad description and part number (continued)
Description Spare part number
In light teal nish for use with computer models in light teal nish M20850-001
NOTE: The touchpad cable is not included with the touchpad spare part kit. The touchpad cable is available using spare part number
M15296-001.
Before removing the touchpad, follow these steps:
1. Prepare the computer for disassembly (Preparation for disassembly on page 26).
2. Remove the bottom cover (Bottom cover on page 26).
Remove the battery (see Battery on page 27).

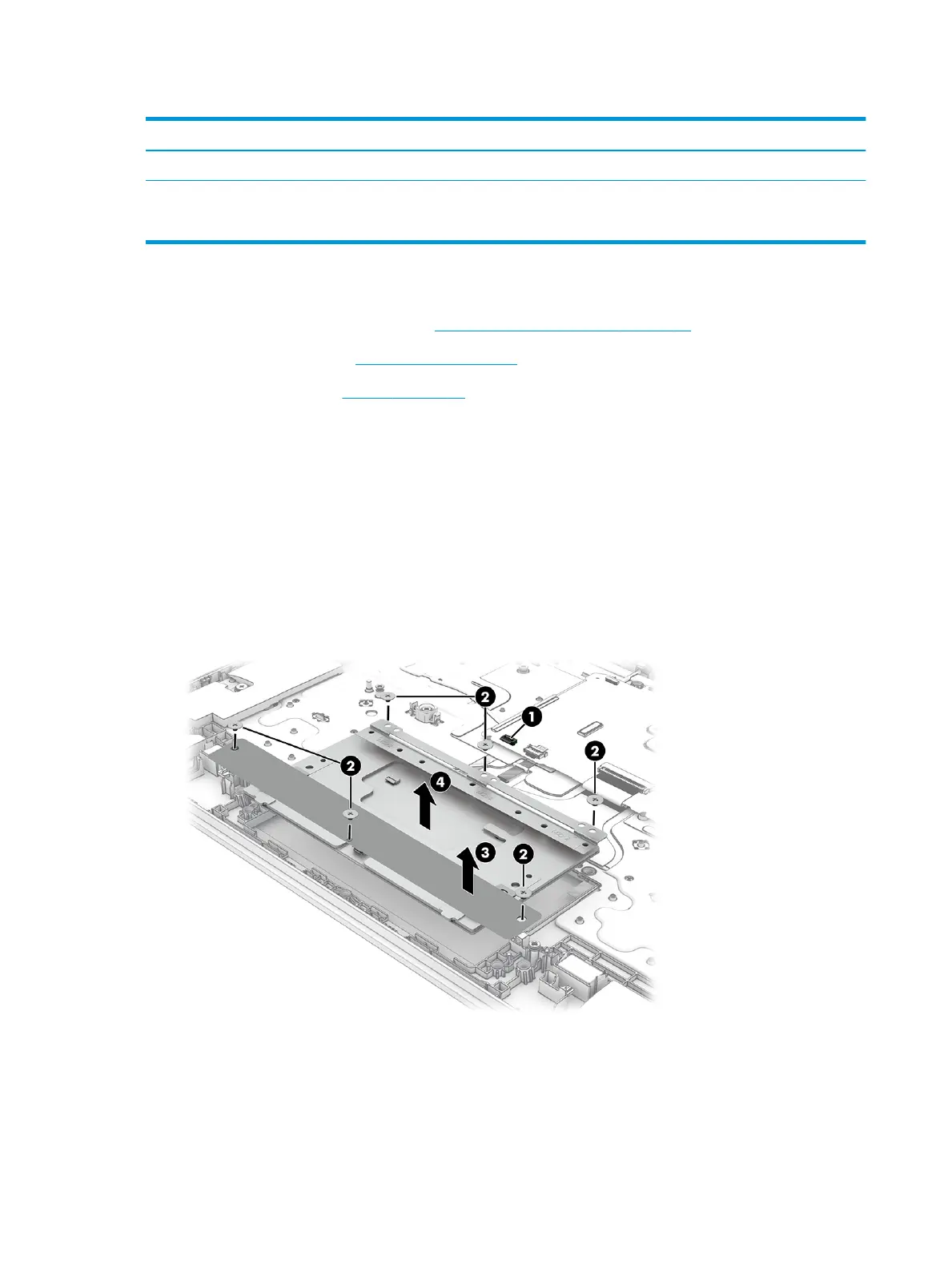

Remove the touchpad:
1. Release the ZIF connector (1) to which the touchpad cable is connected, and then disconnect the touchpad
cable from the system board.
2. Remove the six Phillips M2.0 × 2.3 broad head screws (2) that secure the touchpad and touchpad bracket
to the computer.
3. Remove the touchpad bracket (3).
The touchpad bracket is not available as a spare part component.
4. Remove the touchpad (4).
To replace the touchpad, reverse the removal procedures.
48 Chapter 5 Removal and replacement procedures for authorized service provider parts ENWW
