Table 5-4 Speaker description and part number
Description Spare part number
Speakers (include cables and four rubber isolators) M15298-001
Before removing the speakers, follow these steps:
1. Prepare the computer for disassembly (Preparation for disassembly on page 26).
2. Remove the bottom cover (Bottom cover on page 26).
3. Disconnect the battery cable from the system board (see Battery on page 27).

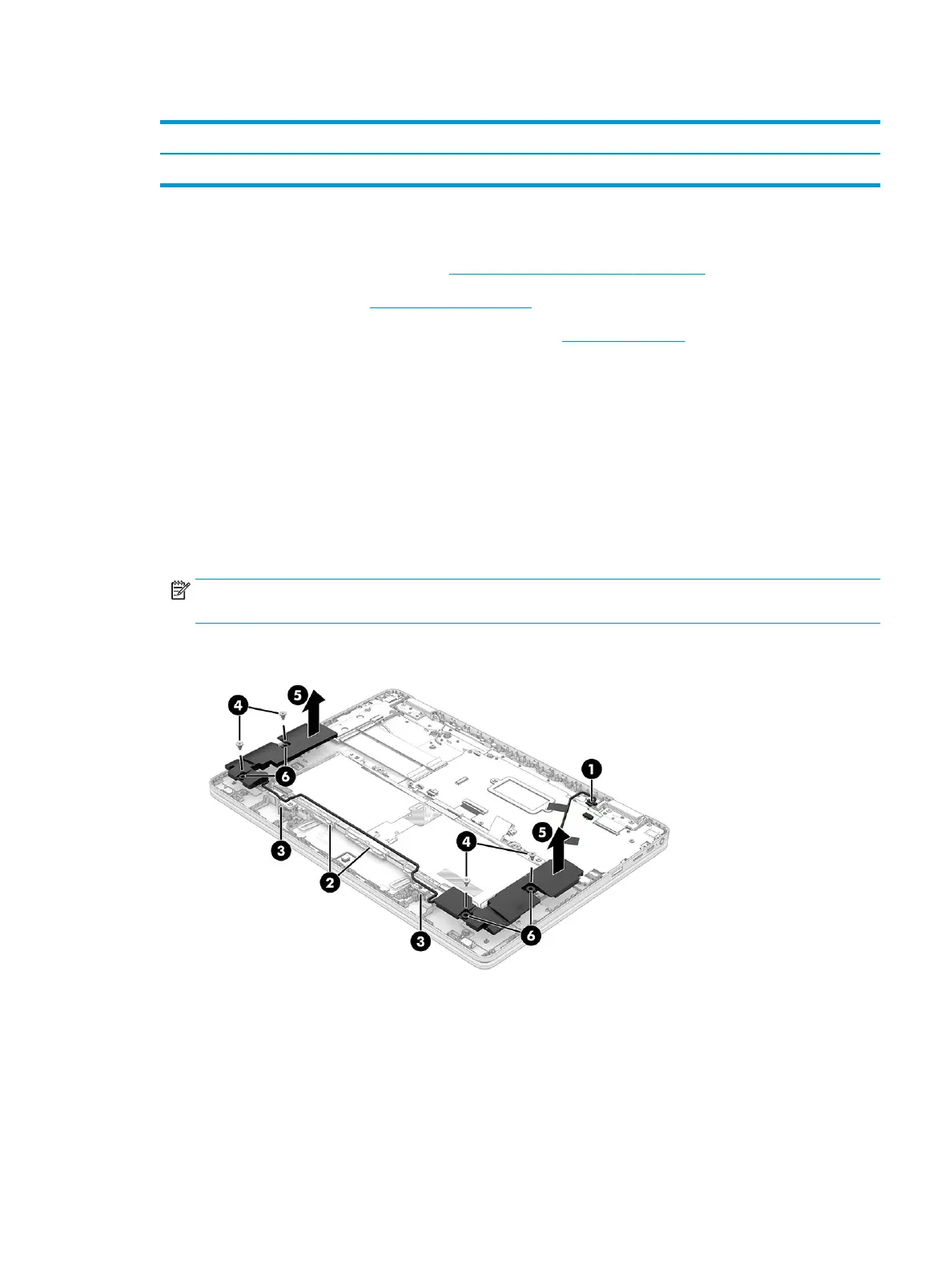

Remove the speakers:
1. Disconnect the speaker cable (1) from the system board.
2. Release the speaker cable from the retention clips (2) built into the front edge of the battery.
3. Release the speaker cable from the retention clips (3) built into the top cover.
4. Remove the four Phillips M2.0 × 5.4 broad head shoulder screws (4) that secure the speakers to the
computer.
5. Remove the speakers (5) from the computer.
NOTE: When removing the speakers, make note of the location of the four rubber isolators (6). The
absence of or damage to these isolators can result in degraded speaker performance.
To replace the speakers, reverse the removal procedures.
Connector board cables
To remove the connector board cables, use this procedure and illustration.
ENWW Component replacement procedures 31
