NOTE: The connector board high-speed cable is available as spare part number M15294-001. The connector
board low-speed cable is available as spare part number M15293-001.
Before removing the connector board cables, follow these steps:
1. Prepare the computer for disassembly (Preparation for disassembly on page 26).
2. Remove the bottom cover (Bottom cover on page 26).
3. Disconnect the battery cable from the system board (see Battery on page 27).
Remove the connector board cables:

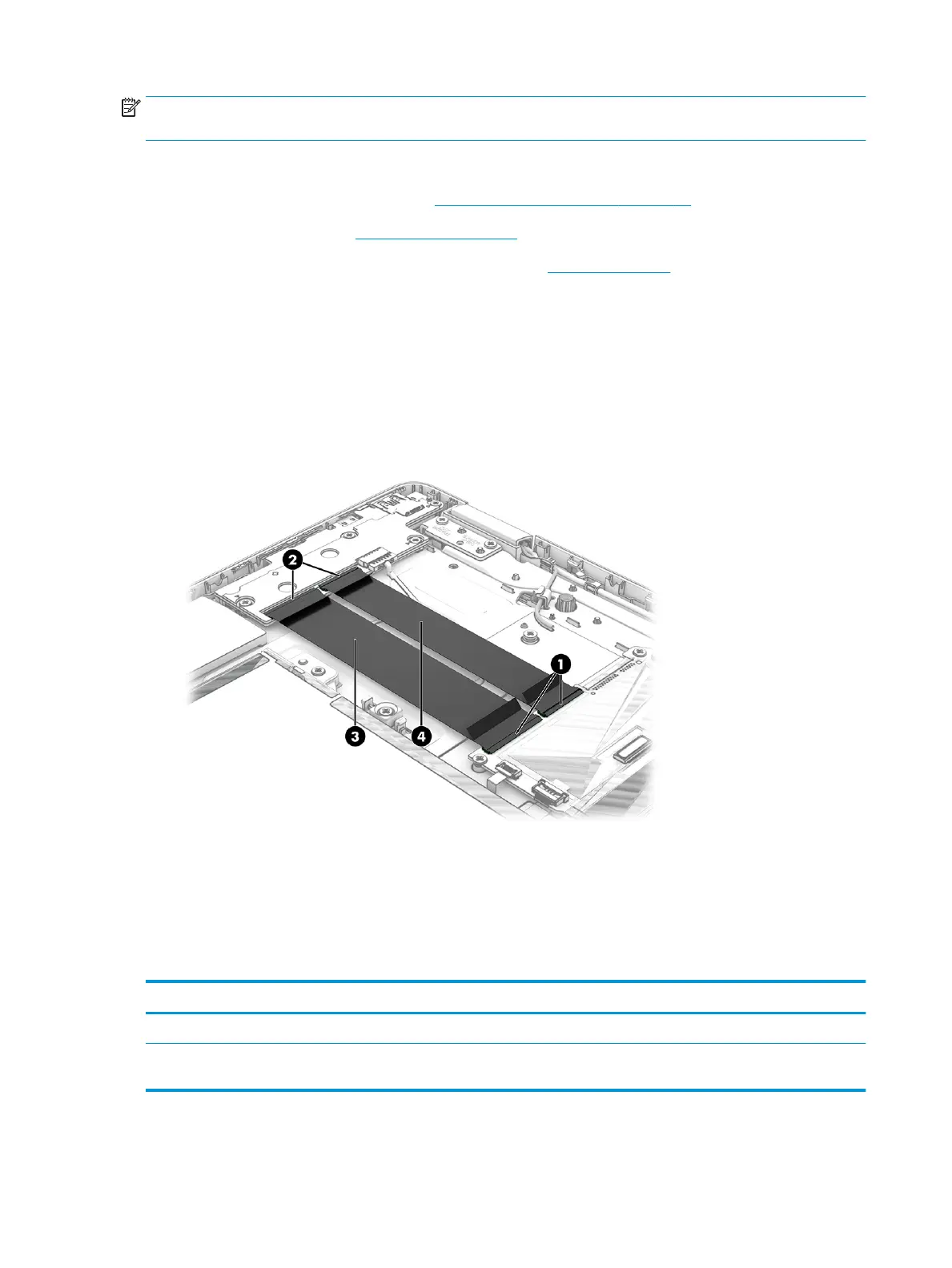

1. Release the zero insertion force (ZIF) connectors (1) to which the connector board cables are connected,
and then disconnect the cables from the system board.
2. Release the ZIF connectors (2) to which the connector board cables are connected, and then disconnect the
cables from the connector board.
3. Remove the connector board high-power cable (3) and the connector board low-power cable (4).
To replace the connector board cables, reverse the removal procedures.
Connector board
To remove the connector board, use this procedure and illustration.
Table
5-5 Connector board description and part number
Description Spare part number
Connector board M15292-001
NOTE: The connector board high-speed cable is available using spare part number M15294-001. The connector board low-speed cable
is available using spare part number M15293-001.
Before removing the connector board, follow these steps:
32 Chapter 5 Removal and replacement procedures for authorized service provider parts ENWW
