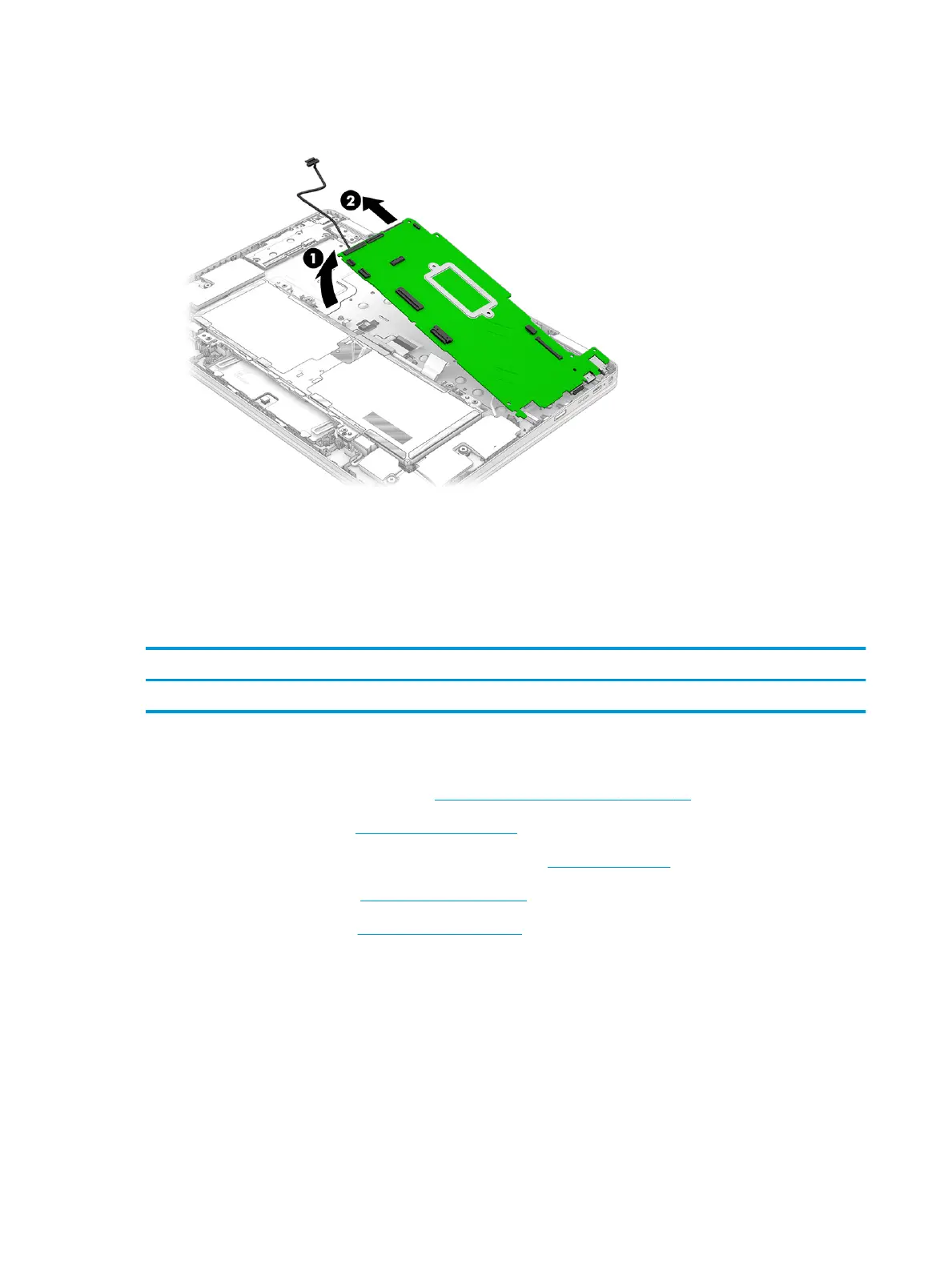

9. Remove the system board (2) by sliding it up and to the left at an angle.
To replace the system board, reverse the removal procedures.
Power cable
To remove the power cable, use this procedure and illustration.
Table
5-7 Power cable description and part number
Description Spare part number
Power cable M15300-001
Before removing the power cable, follow these steps:
1. Prepare the computer for disassembly (Preparation for disassembly on page 26).
2. Remove the bottom cover (Bottom cover on page 26).
3. Disconnect the battery cable from the system board (see Battery on page 27).
4. Remove the WLAN module (WLAN module on page 29).
5. Remove the system board (System board on page 33).
Remove the power cable:
1. Turn the removed system board upside down with the rear toward you.
