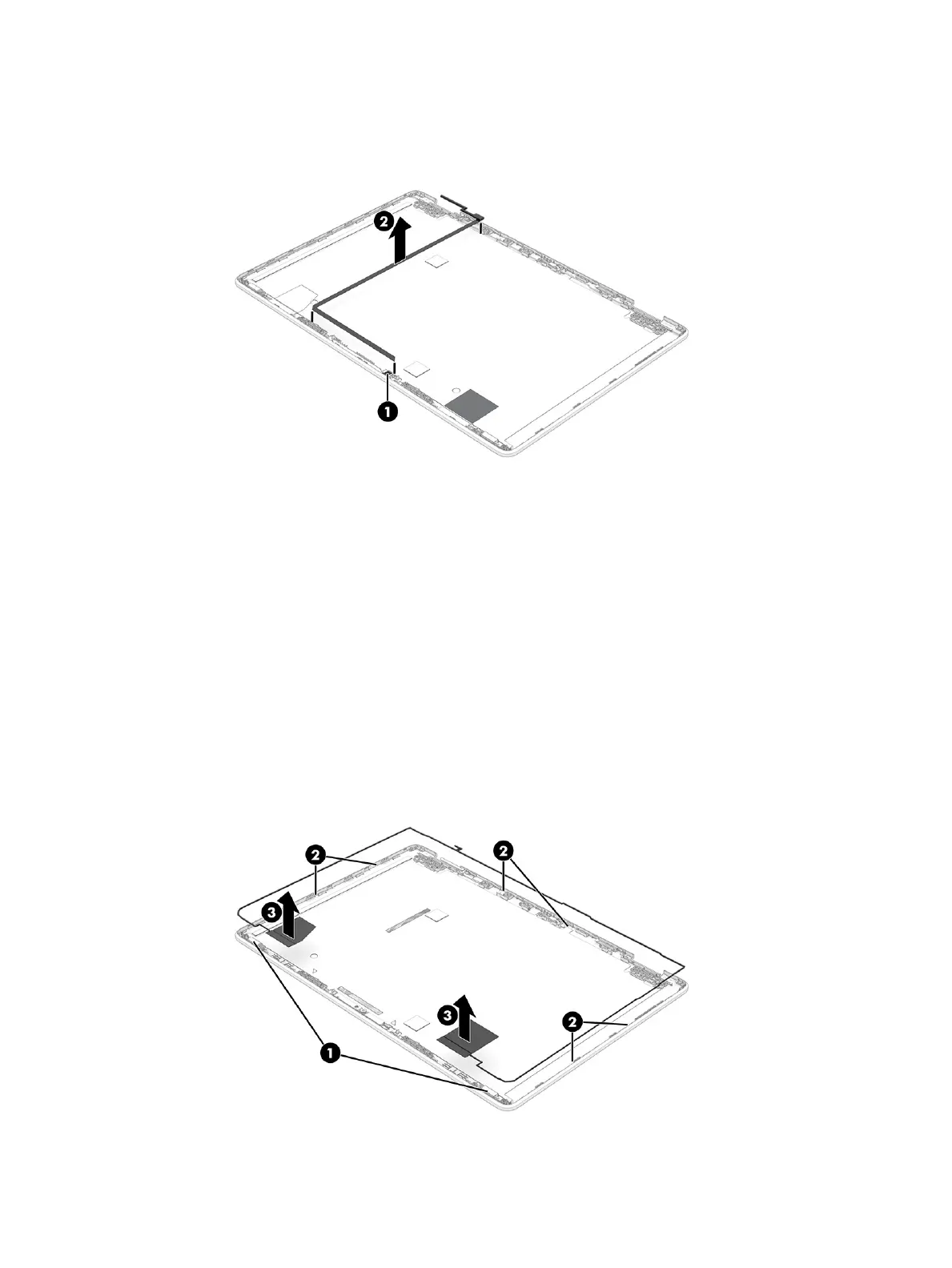

f. Remove the webcam/microphone module cable (2).

18. If you need to replace the wireless antennas:

a. Remove the display bezel.

b. Remove the display panel.

c. Remove the display hinges.

d. Detach the wireless antenna transceivers (1) from the display back cover. (The wireless antenna

transceivers are attached to the display back cover with double-sided adhesive.)

e. Release the wireless antenna cables from the retention clips (2) and routing channels built into the

left and right sides and the bottom edge of the display enclosure.

f. Remove the wireless antennas (3).

46 Chapter 5 Removal and replacement procedures for authorized service provider parts ENWW

Questions and Answers:

Need help?

Do you have a question about the HP Chromebook x360 14a and is the answer not in the manual?

HP Chromebook x360 14a Specifications

General

Display Size	14 inches
RAM	4 GB
Operating System	Chrome OS
Graphics	Intel UHD Graphics 600
Bluetooth	Bluetooth 5
Storage	64 GB eMMC
Ports	2 x USB-C, 1 x USB-A, 1 x headphone/microphone combo
Display	HD (1366 x 768) Touchscreen
Wireless	802.11a/b/g/n/ac
Dimensions	12.82 x 8.60 x 0.70 inches
Processor	Intel Celeron N4020 / Intel Pentium Silver N5030
Weight	3.28 lbs
