Installation and Setup
Installation
A-5

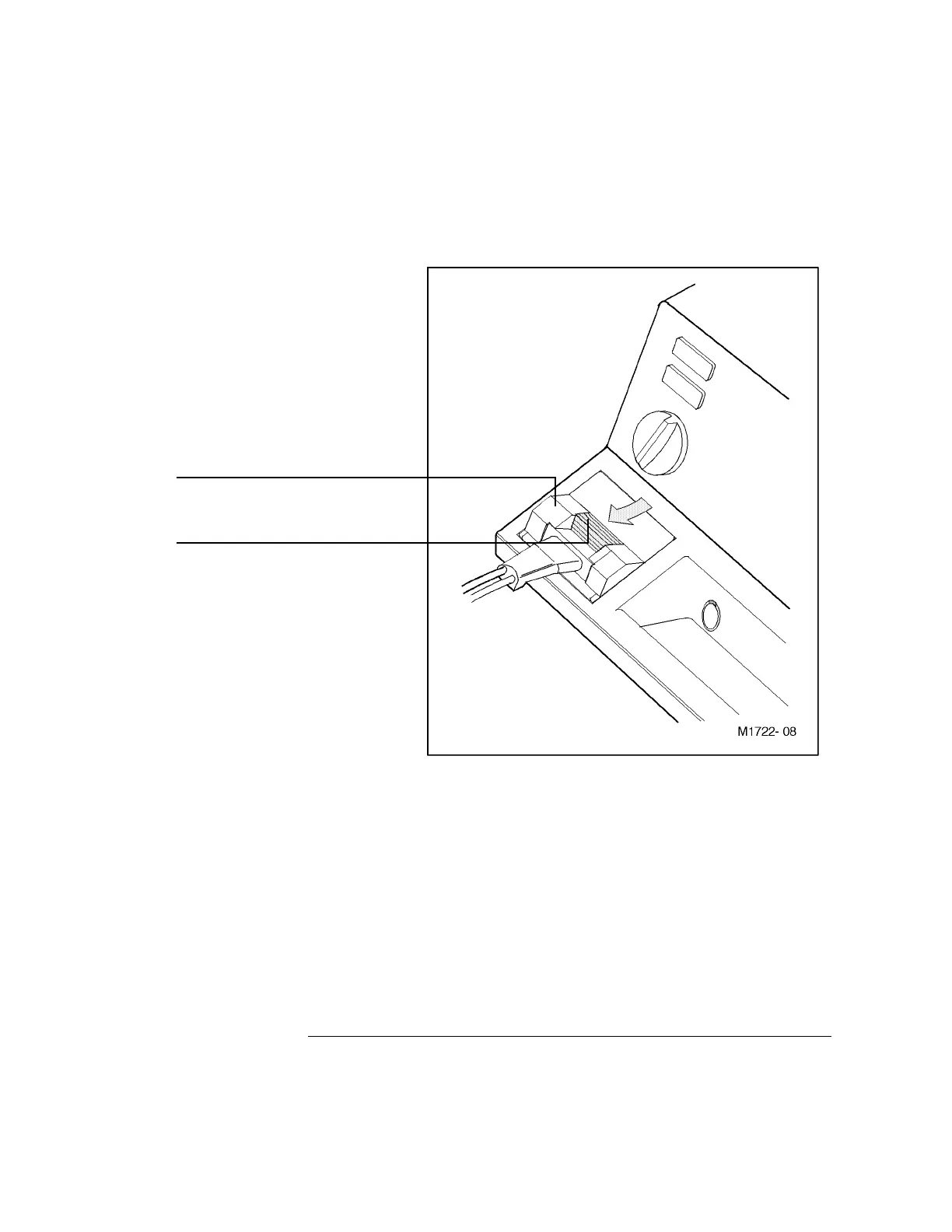

Figure 1-2
Connecting External Paddles, Adhesive Pads, or Internal Paddles
ECG Input Connector
The ECG Input connector on the defibrillator is a 6-, 8-, or 12-pin connector,
depending on the option purchased with the instrument. For each connector option,
several different patient cables can be used for various ECG sources and
applications.
Refer to Table 3-1, “Cardiac Monitoring Configurations,” on page 3-1 for a list of
available patient cables and lead sets, and their part numbers.
Push the lock in the direction
indicated by the arrow to move the
lock to the lock position (shown).
Connector lock
Paddles plug in paddles connector
