HP Color LaserJet 9500 User Manual

ENWW Chapter 6 Removal and replacement 107
Paper deflector (deflector weight)
The paper deflector is in three parts.

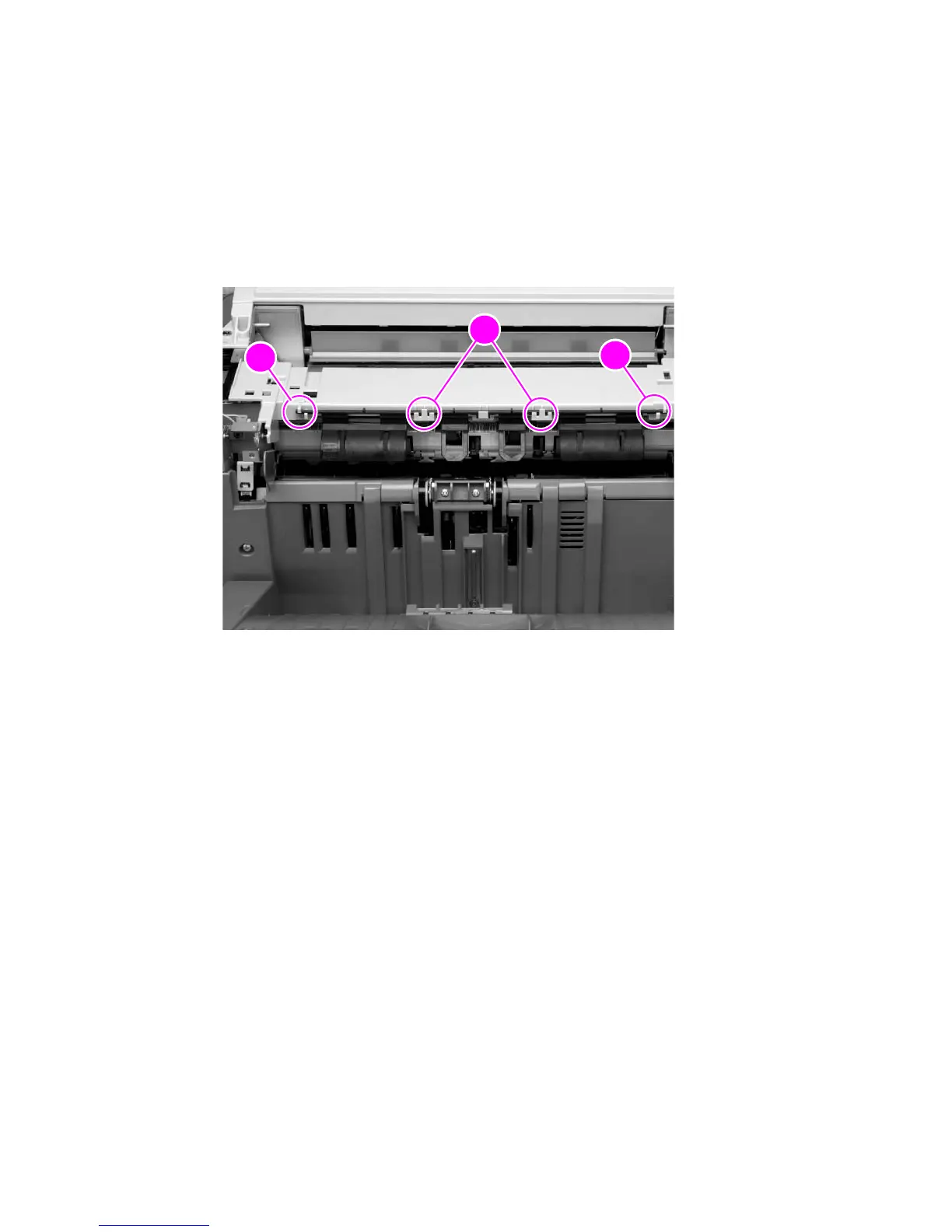

Callouts 1 and 3 in figure 66 show holders at one end of both the part at the back of the
multifunction finisher and the part at the front. Callout 2 shows the holders at each end of the part
at the center. The holders of the part at the center also hold the other ends of the parts at the
back and the front.
1 For each part, gently flex the paper deflector, and release one end from its holder.
2 Slide each part to clear the holder at the other end, and then lift each part out of the
multifunction finisher.
Figure 66. Paper deflector (1 of 2)
2
2
2
1
2
3
