HP Color LaserJet 9500 User Manual

ENWW Chapter 6 Removal and replacement 113
Stapling-door switch
1 Remove the front cover. See page 96.
2 Unplug two cable connectors (callout 1), and unroute the cables from the cable guides
(callout 2).
3 Unplug the voltage connector (callout 3).
4 Remove one screw (callout 4).
5 Remove the stapling-door switch.

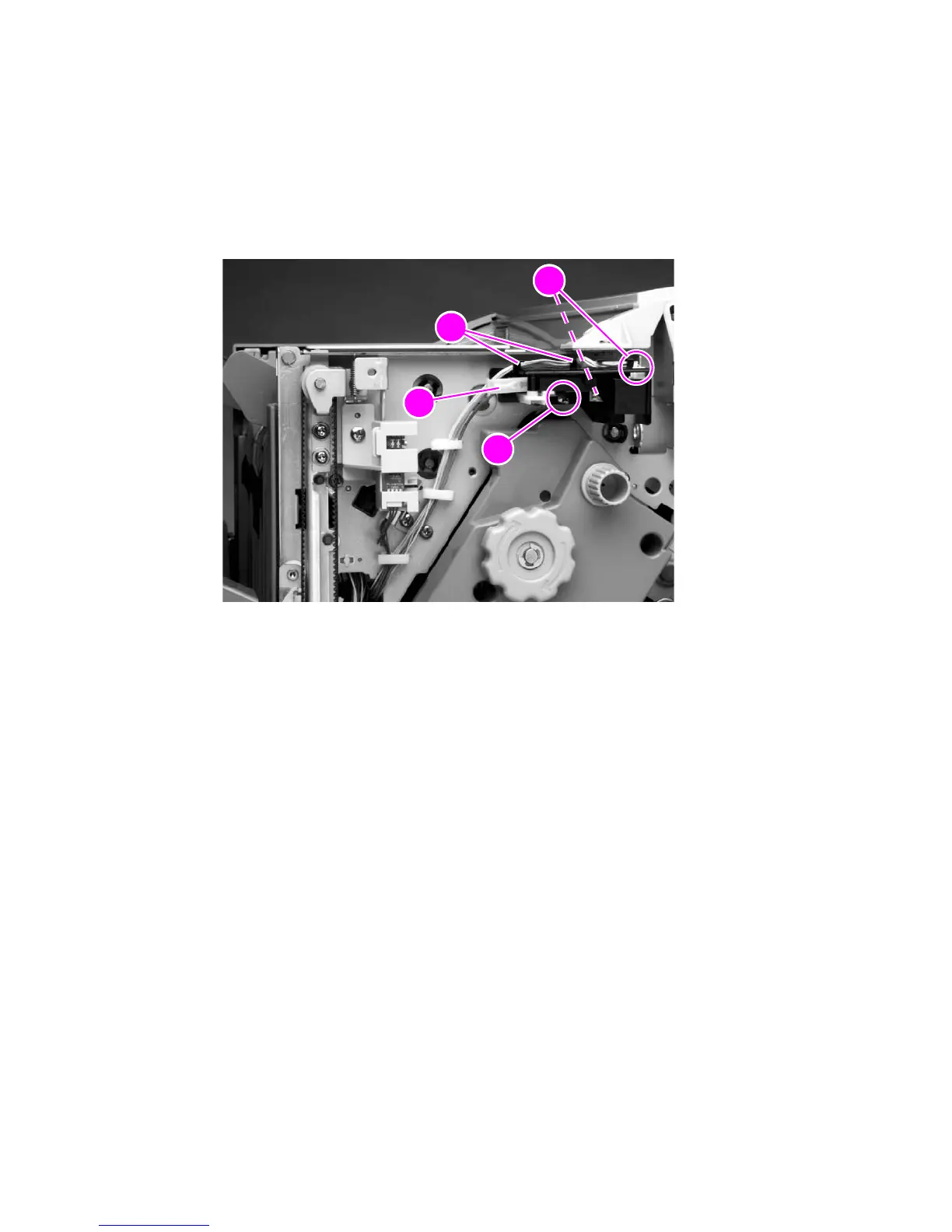

Figure 73. Stapling-door switch
2
2
2
1
3
2
2
4
2
1
