Performing calibration and adjustment

Multifunction finisher

Performing booklet adjustment by using the control panel

1 Print a one-sheet booklet.

2 Measure the distance “d” (see figure 184).

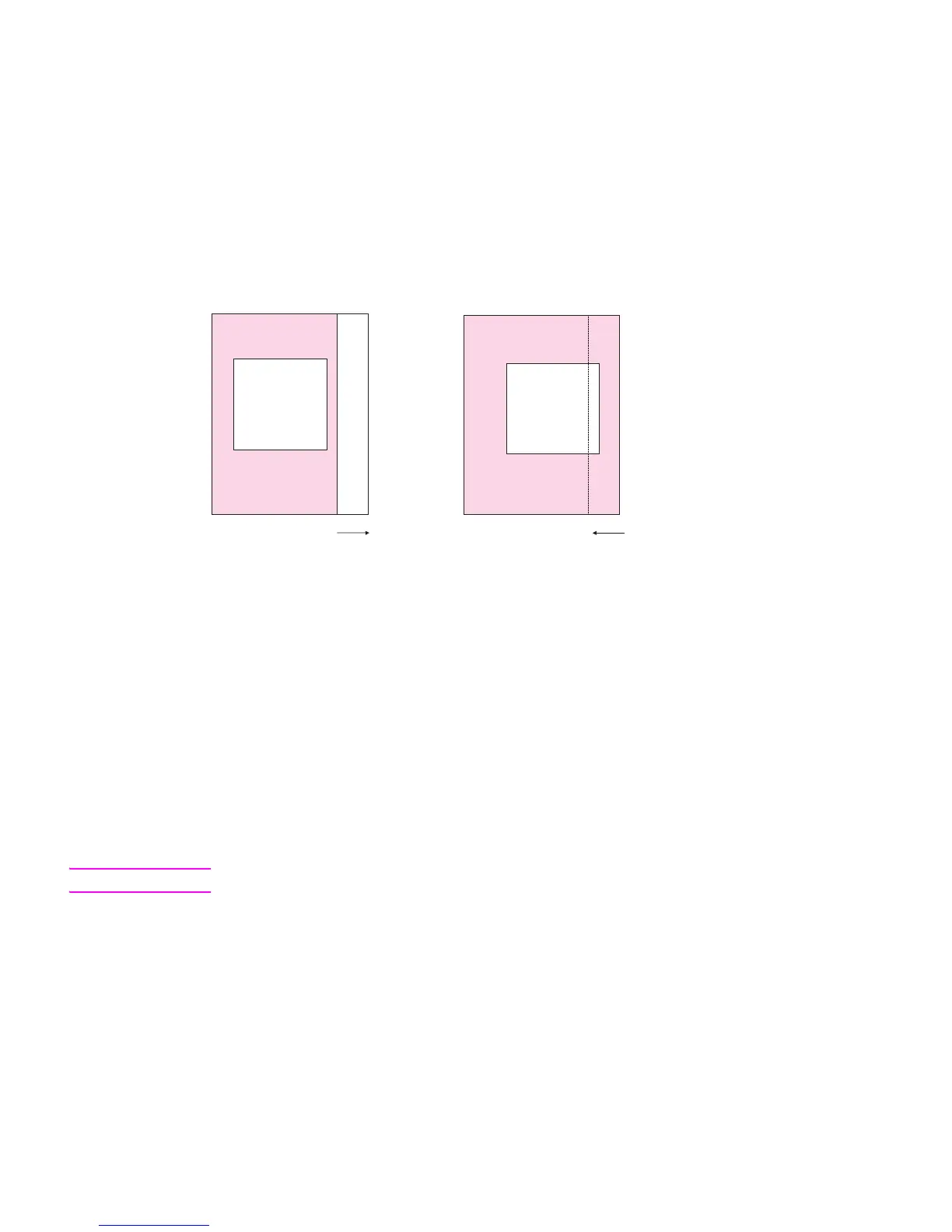

Figure 184. Booklet adjustment—multifunction finisher

3 On the control panel, touch Configure Device, touch Multifunction Finisher, and then

touch the menu item that corresponds to the paper-size of the booklet that should be

adjusted:

• Fold line adjust LTR-R and A4-R,

• Fold line adjust LEGAL and JISB4, or

• Fold line adjust 11x17 and A3

4 Choose a positive value for adjustment if the front-page edge (usually the front cover of a

booklet) is smaller than the back page. Choose a negative value for adjustment if the front

page edge is larger than the back-page edge.

5 Repeat the procedure to test the adjustment.

Note The control panel shows the distance of “d” in millimeters only.

Front

cover

Front

cover

d (+) d (-)
