HP Color LaserJet 9500 User Manual

ENWW Chapter 6 Removal and replacement 135
Controller PCA cover
1 Use a Torx screwdriver to remove four screws (callout 1) from the cover.

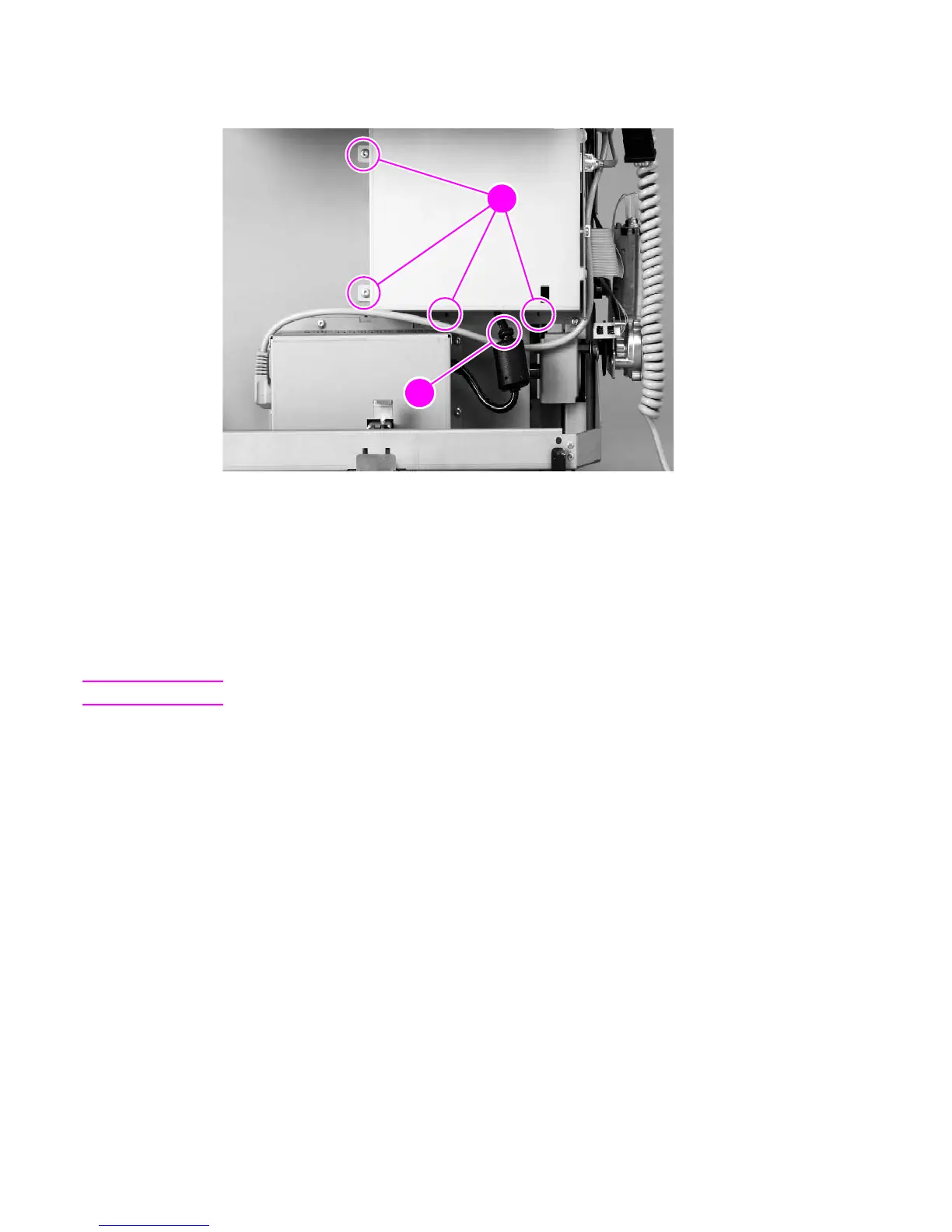

Figure 102. Controller PCA cover
2 Rotate the cover to clear the tabs.
3 Remove the controller PCA cover.
To reinstall
Make sure that you insert the power cord rubber grommet (callout 2) into the slot on the bottom
of the cover.
Note When the power cord is correctly installed, the rubber grommet is not visible.
2
2
2
1

HP Color LaserJet 9500 Specifications

General

Print Speed (Black)	Up to 24 ppm
Print Speed (Color)	Up to 24 ppm
Print Resolution (Black)	Up to 600 x 600 dpi
Print Resolution (Color)	Up to 600 x 600 dpi
Standard Memory	128 MB
Standard Paper Capacity	1, 100 sheets
Compatible Printers	HP Color LaserJet 9500 series
Type	Toner Cartridge
Media Types	Plain, bond, glossy, labels, transparencies, envelopes, cardstock
Media Sizes	Letter, legal, executive
Connectivity	Ethernet
Category	Printer
Color	Cyan, Magenta, Yellow, Black
