Engine control system
The engine control system coordinates all product functions and drives the other three systems.
The engine control system contains the DC controller, high-voltage power supply PCA, and power
supply unit.

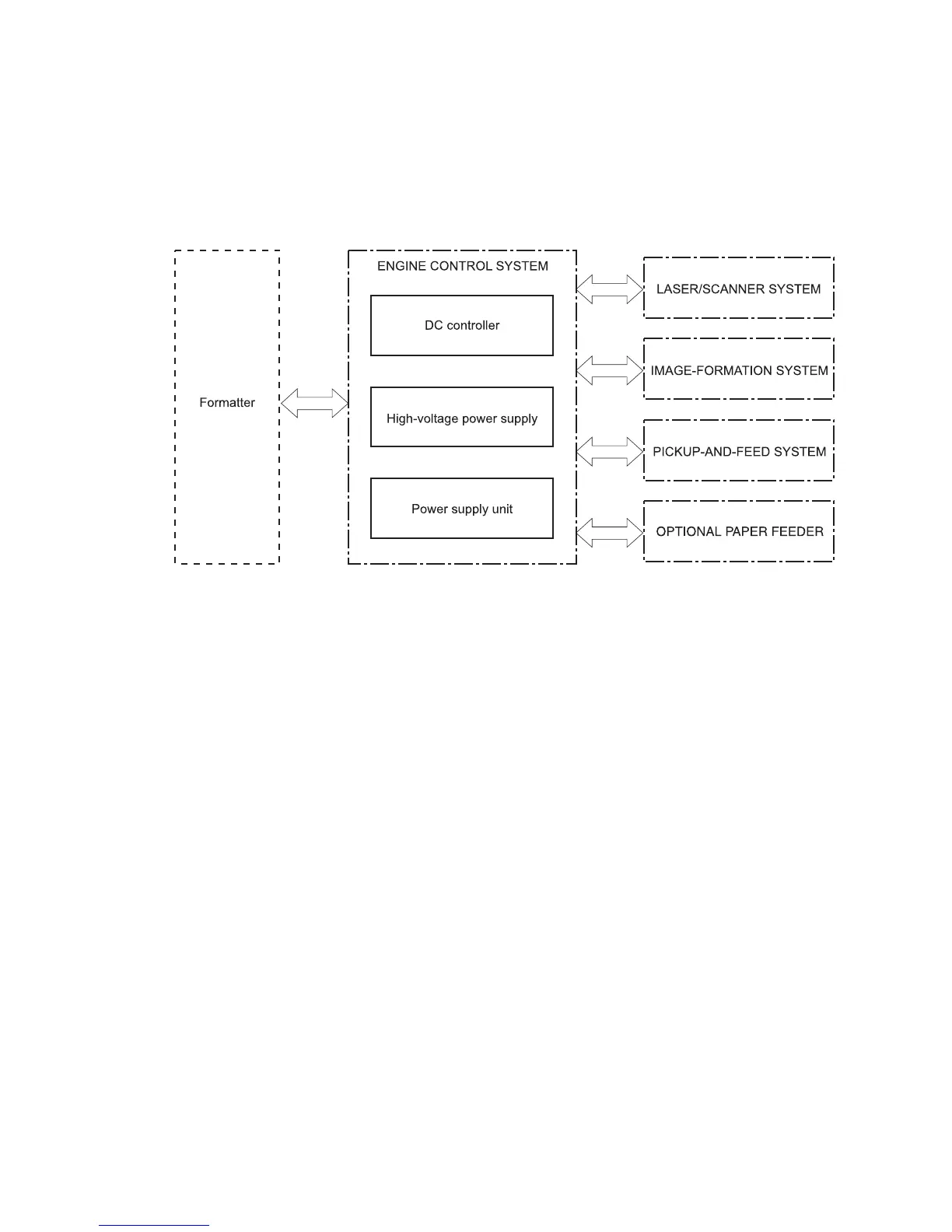

Figure 5-3 Engine control system components
ENWW Engine control system 85
