Front Panel Components
Drive configuration may vary by model.

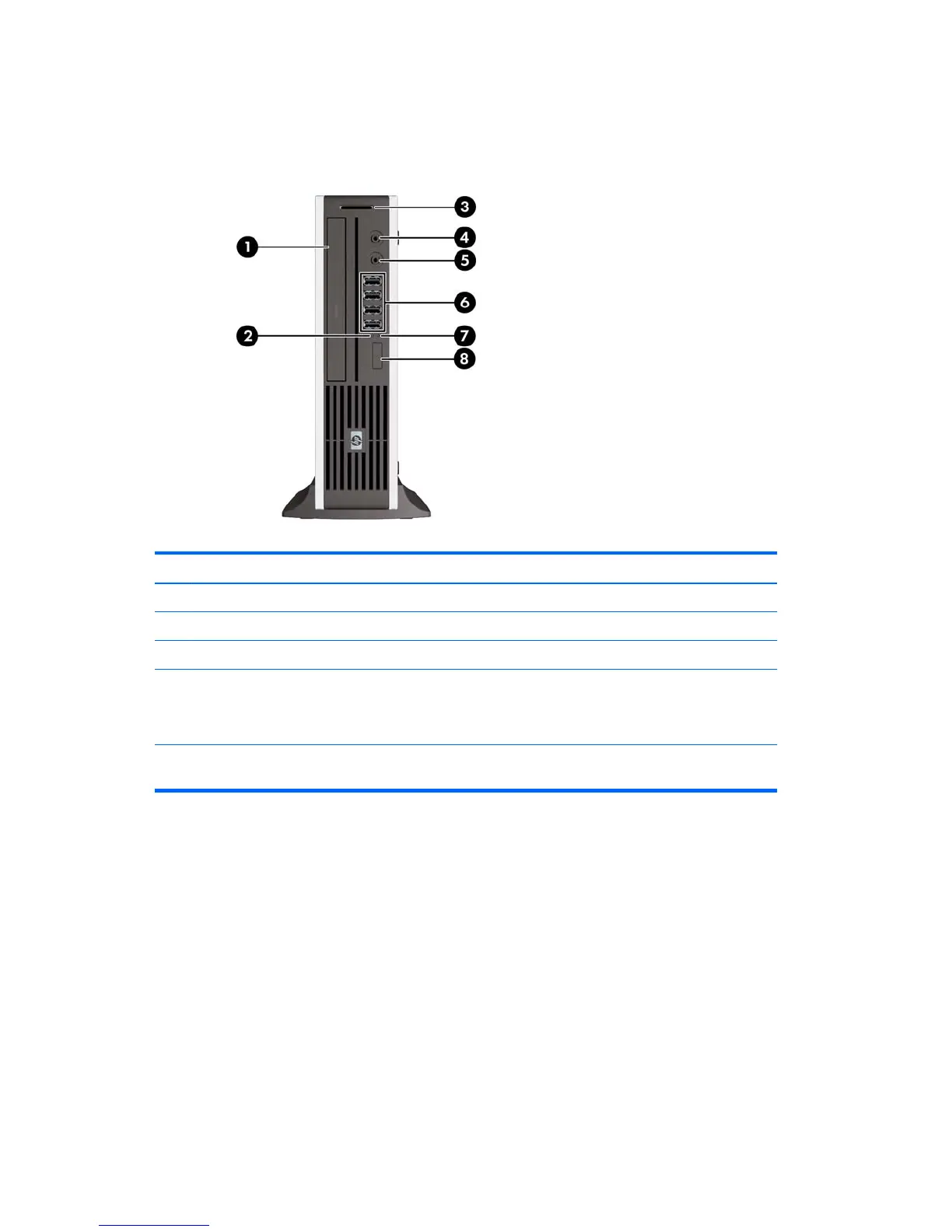

Figure 1-2 Front Panel Components
Table 1-1 Front Panel Components
1 Optical Drive 5 Microphone/Headphone Connector
2 System Power LED 6 USB (Universal Serial Bus) Ports
3 SD Media Card Reader (optional) 7 Hard Drive Activity Light
4 Headphone Connector 8 Dual-State Power Button
NOTE: When a device is plugged into the Microphone/Headphone Connector, a dialog box will pop up
asking if you want to use the connector for a microphone line Line-In device or a headphone. You can
reconfigure the connector at any time by double-clicking the Realtek HD Audio Manager icon in the Windows
taskbar.
NOTE: The Power On Light is normally green when the power is on. If it is flashing red, there is a problem
with the computer and it is displaying a diagnostic code.
2 Chapter 1 Product Features ENWW
