Rear Panel Components

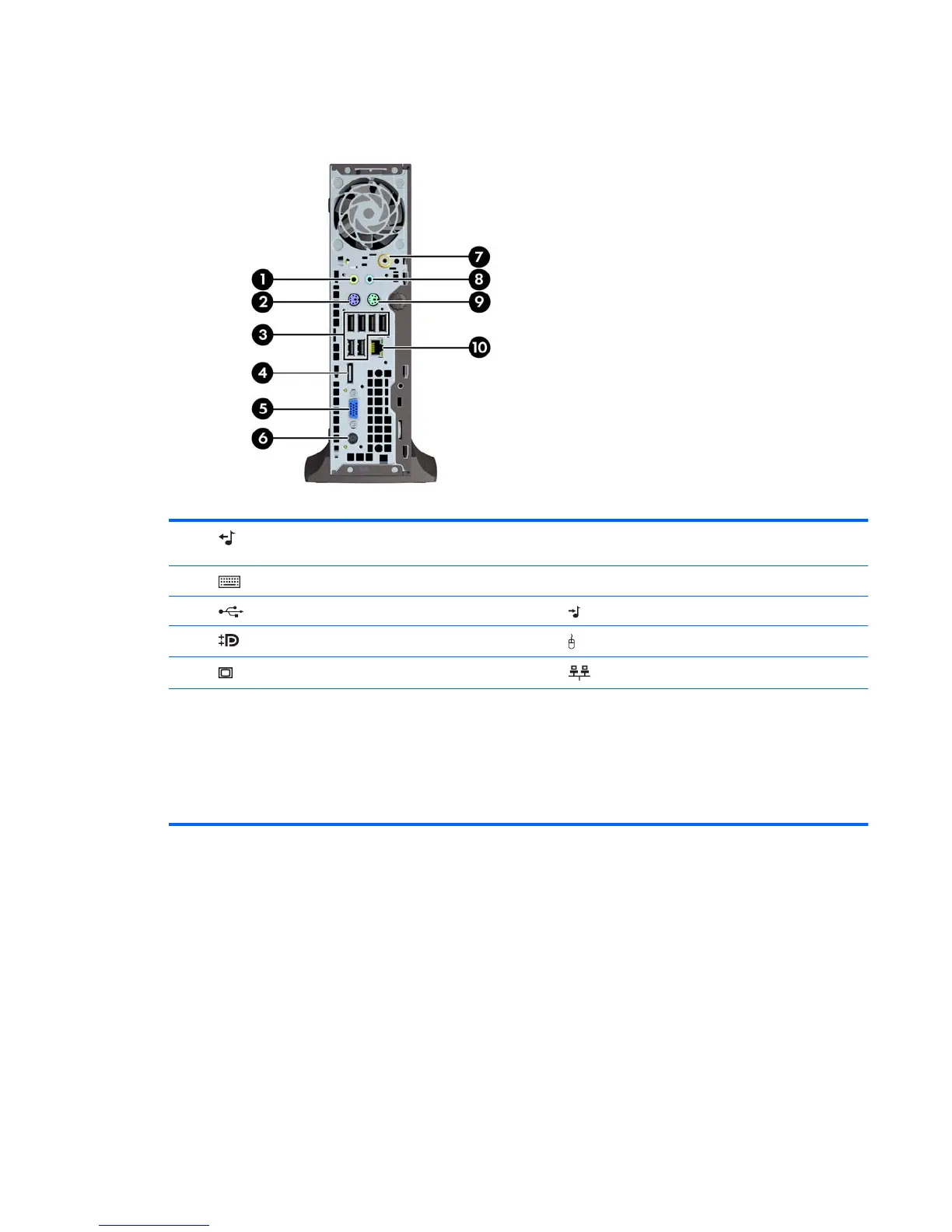

Figure 1-3 Rear Panel Components
Table 1-2 Rear Panel Components
1 Line-Out Connector for powered audio
devices (green)
6 Power Cord Connector
2
PS/2 Keyboard Connector (purple) 7 TV Tuner (optional)
3
Universal Serial Bus (USB) (6) 8 Line-In Audio Connector (blue)
4
DisplayPort Monitor Connector 9 PS/2 Mouse Connector (green)
5
VGA Monitor Connector (blue) 10 RJ-45 Network Connector
NOTE: Arrangement and number of connectors may vary by model.
On some models the optional TV tuner is replaced by an optional wireless antenna. On other models, there are no optional
components in this location.
When a device is plugged into the blue Line-In Audio Connector, a dialog box will pop up asking if you want to use the
connector for a line-in device or a microphone. You can reconfigure the connector at any time by double-clicking the Realtek
HD Audio Manager icon in the Windows taskbar.
ENWW Rear Panel Components 3
