HP COMPAQ 6510B User Manual

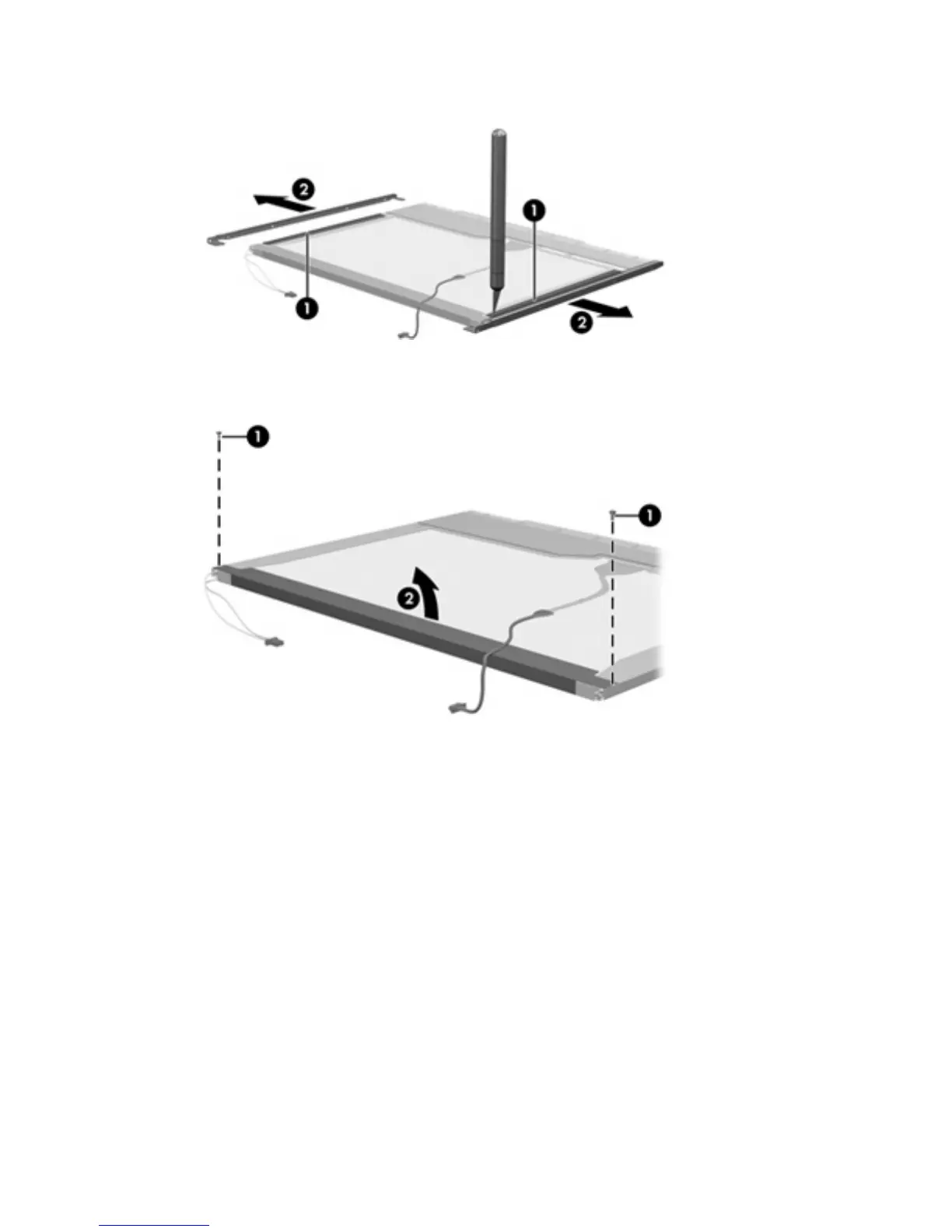

10. Remove the display panel frame (2) from the display panel.
11. Remove the screws (1) that secure the backlight cover to the display panel.
12. Lift the top edge of the backlight cover (2) and swing it outward.
13. Remove the backlight cover.
14. Turn the display panel right-side up.
Display 151

HP COMPAQ 6510B Specifications

General

Processor	Intel Core 2 Duo
Display	14.1-inch
RAM	Up to 4 GB DDR2
Graphics	Intel GMA X3100
Operating System	Windows Vista Business
Battery	6-cell Lithium-Ion
Display Resolution	1280 x 800 (WXGA)
Storage	Up to 160 GB HDD
Weight	2.36 kg
Chipset	Intel GM965
Battery Life	Up to 4 hours
Optical Drive	DVD±RW
Networking	Wi-Fi 802.11a/b/g
Ports	3 USB 2.0
