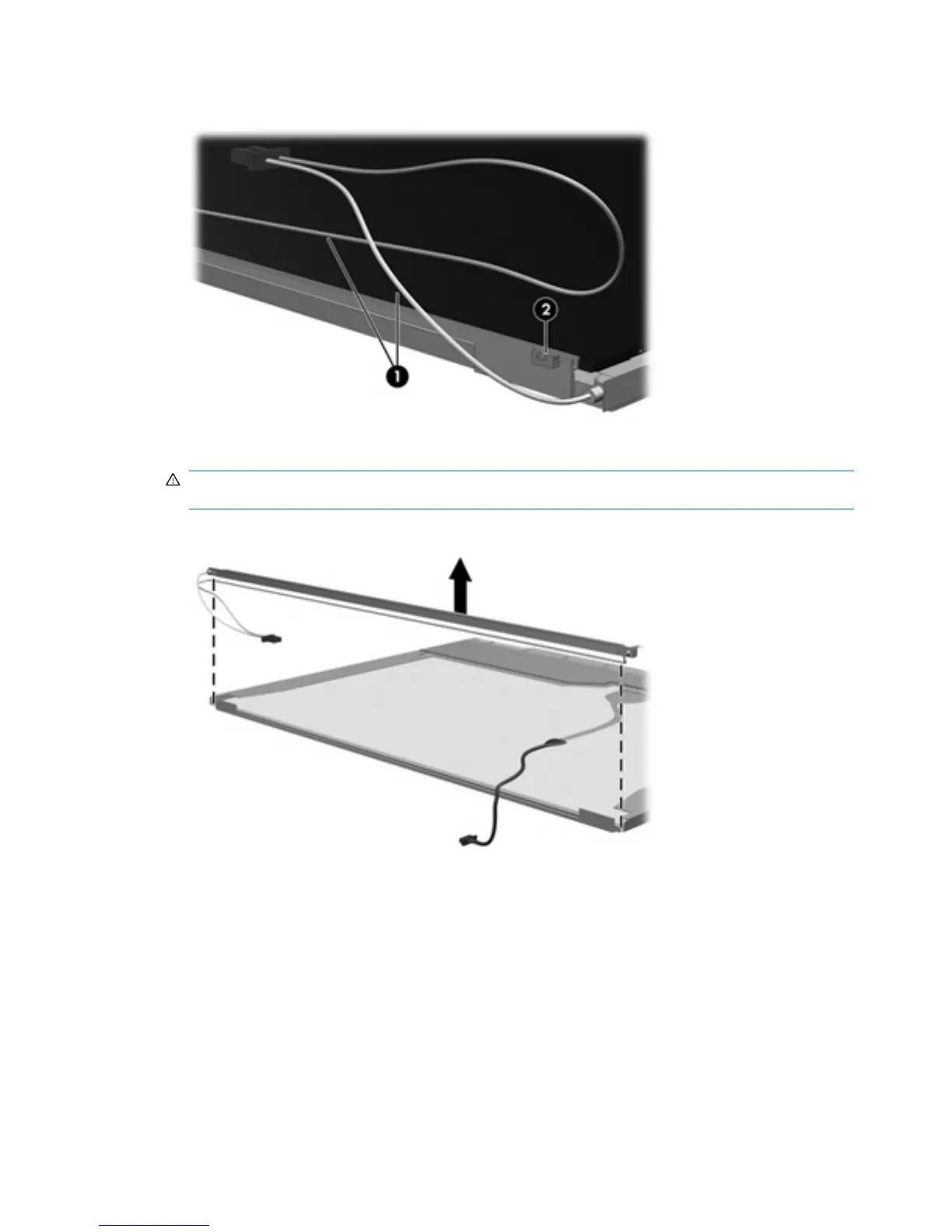

15. Remove the backlight cables (1) from the clip (2) in the display panel.
16. Turn the display panel upside down.
WARNING! The backlight contains mercury. Exercise caution when removing and handling the
backlight to avoid damaging this component and causing exposure to the mercury.
17. Remove the backlight frame from the display panel.
152 Chapter 11 Recycling

HP COMPAQ 6510B Specifications

General

Processor	Intel Core 2 Duo
Display	14.1-inch
RAM	Up to 4 GB DDR2
Graphics	Intel GMA X3100
Operating System	Windows Vista Business
Battery	6-cell Lithium-Ion
Display Resolution	1280 x 800 (WXGA)
Storage	Up to 160 GB HDD
Weight	2.36 kg
Chipset	Intel GM965
Battery Life	Up to 4 hours
Optical Drive	DVD±RW
Networking	Wi-Fi 802.11a/b/g
Ports	3 USB 2.0
