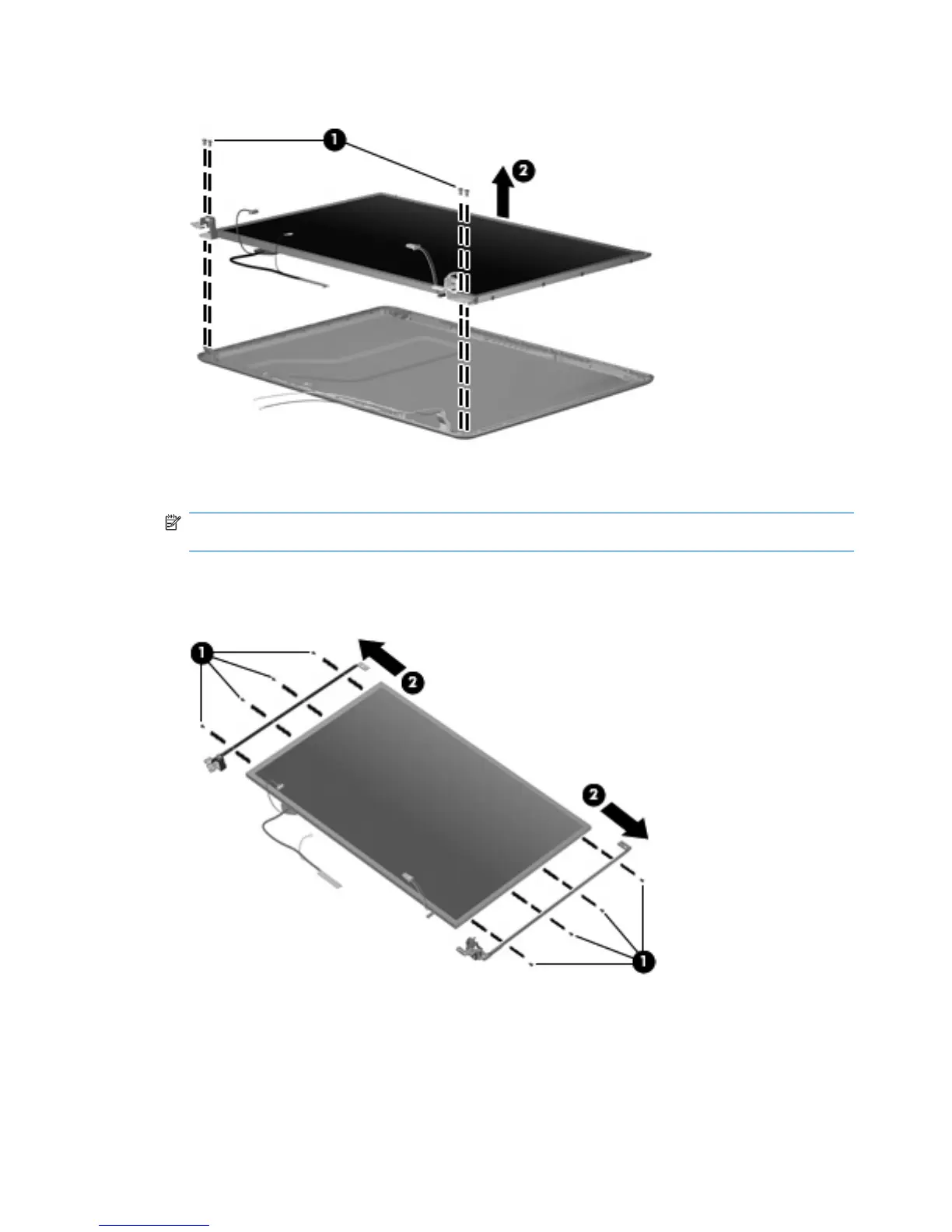

10. Remove the display panel (2).
11. Remove the four Phillips PM2.0×3.0 screws (1) that secure each display hinge to the display
panel.
NOTE: When removing or replacing the eight Phillips screws, be sure to remove or replace them
in the same sequence as the numbering found on the display hinges (1–2–3–4).
12. Remove the display hinges (2). The left and right display hinges are available in the Bracket Kit,
spare part numbers 493170-001 (for use only with HP Compaq 6535s Notebook PC models) and
491639-001 (for use only with HP Compaq 6530s and 6531s Notebook PC models).
13. If it is necessary to replace the wireless antenna cables, remove the two Torx T8M2.5×4.0
screws (1) that secure the wireless antenna transceiver to the top cover. The wireless antenna
cables are included in the Display Cable Kit, spare part numbers 497620-001 (for use only with HP
Compaq 6535s Notebook PC models) and 491637-001 (for use only with HP Compaq 6530s and
6531s Notebook PC models).
66 Chapter 4 Removal and replacement procedures
