Service Reference Guide, d200 336493-004 6–3
Removal and Replacement Procedures— Microtower Type 2 Chassis
6.3 Front Bezel
1. Prepare the computer for disassembly (Section 6.1, “Preparation for Disassembly”).
2. Remove the access panels (Section 6.2, “Access Panel”).

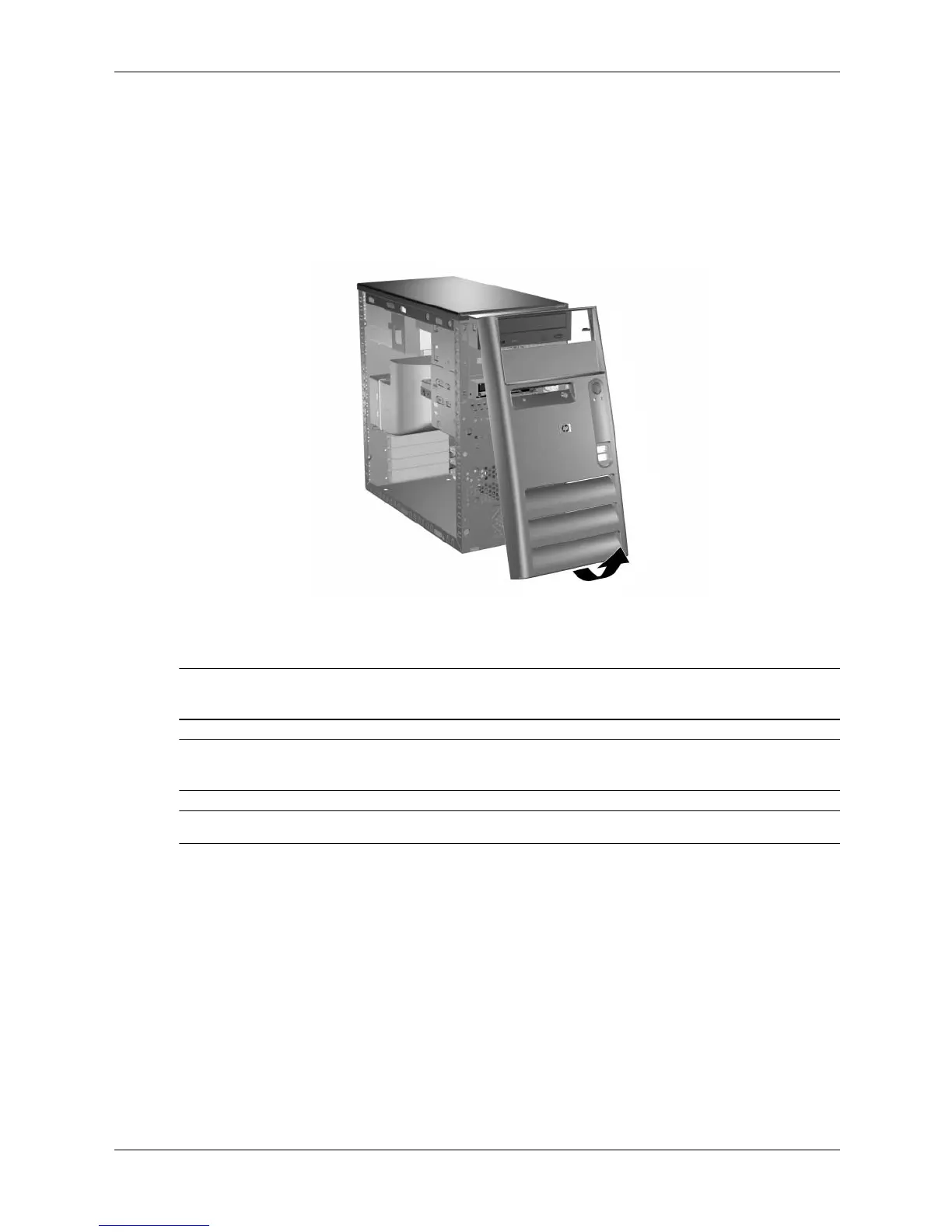

3. Grasp the bottom of the front panel below the lowest air vent and pull the panel out and up to
release it from the chassis.
To install the front bezel, insert the top two latches into their respective holes in the chassis and
push the bezel in until it is fully seated.
✎
The front bezel shown may be different than the one on your computer but the removal and
replacement procedures are identical.
✎
When replacing the front bezel, ensure that the top of the front bezel is flush with the top of the
chassis before pressing it into place.
✎
Some models may not have an air shroud surrounding the processor.
