6–14 336493-004 Service Reference Guide, d200
Removal and Replacement Procedures— Microtower Type 2 Chassis
6.8 Front USB Device
1. Prepare the computer for disassembly (Section 6.1, “Preparation for Disassembly”).
2. Remove the right access panel (Section 6.2, “Access Panel”).
3. Remove the front bezel (Section 6.3, “Front Bezel”).
4. Disconnect the front USB cable from the system board.

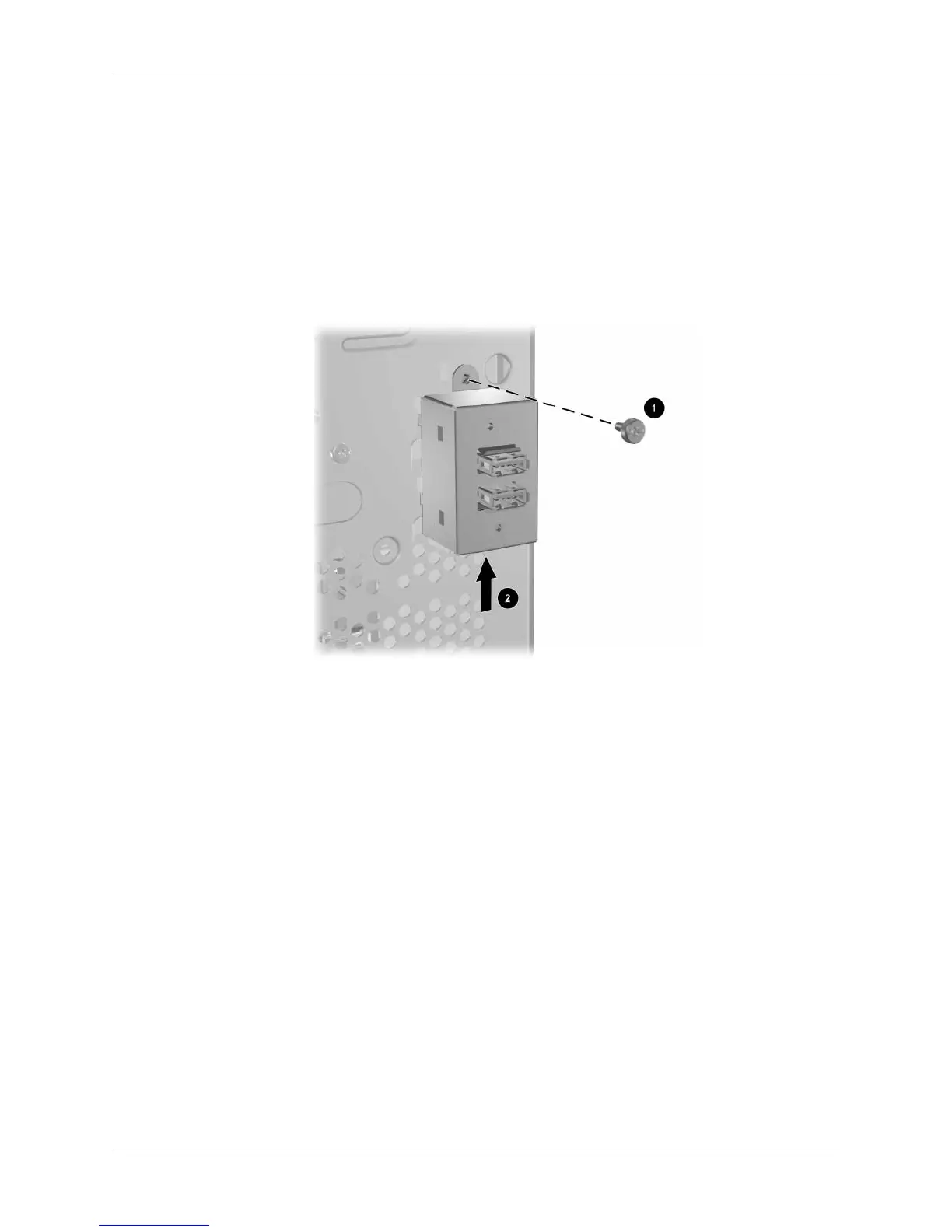

5. Remove the single screw that secures the front USB device to the chassis 1, then slide the
USB housing up to release it from the chassis 2.
