6–24 336493-004 Service Reference Guide, d200
Removal and Replacement Procedures— Microtower Type 2 Chassis
6.15.1 Type 1 Battery Holder

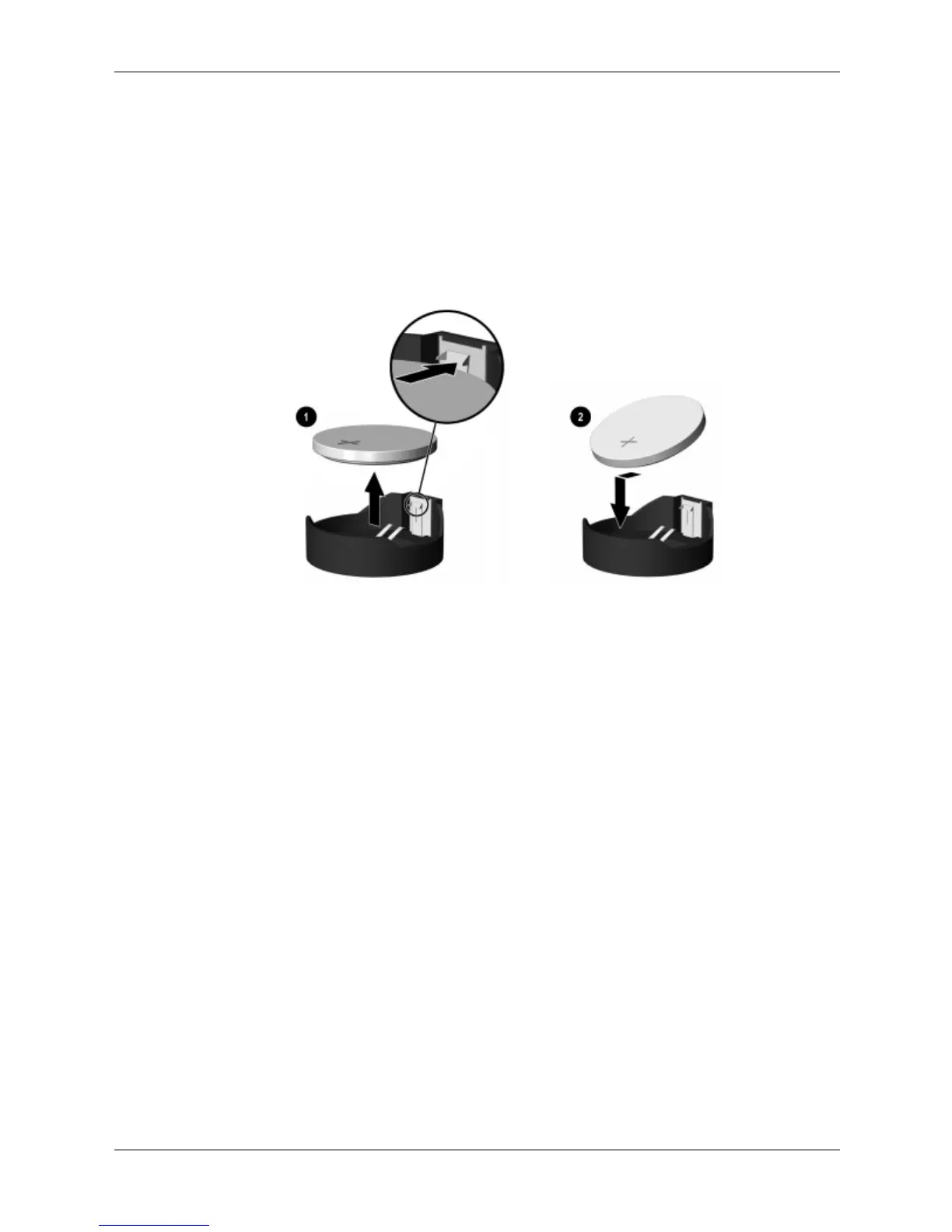

1. To release the battery from its holder 1, squeeze the metal clamp that extends above one
edge of the battery.
2. When the battery pops up, lift it out.
3. To insert the new battery 2, slide one edge of the replacement battery under the holder’s lip
with the positive side up. Push the other edge down until the clamp snaps over the other edge
of the battery.
4. Replace the computer cover or access panel.
5. Plug in the computer and turn on power to the computer.
6. Reset the date and time, your passwords, and any special system setups, using Computer
Setup.
