Service Reference Guide, d200 336493-004 6–19
Removal and Replacement Procedures— Microtower Type 2 Chassis

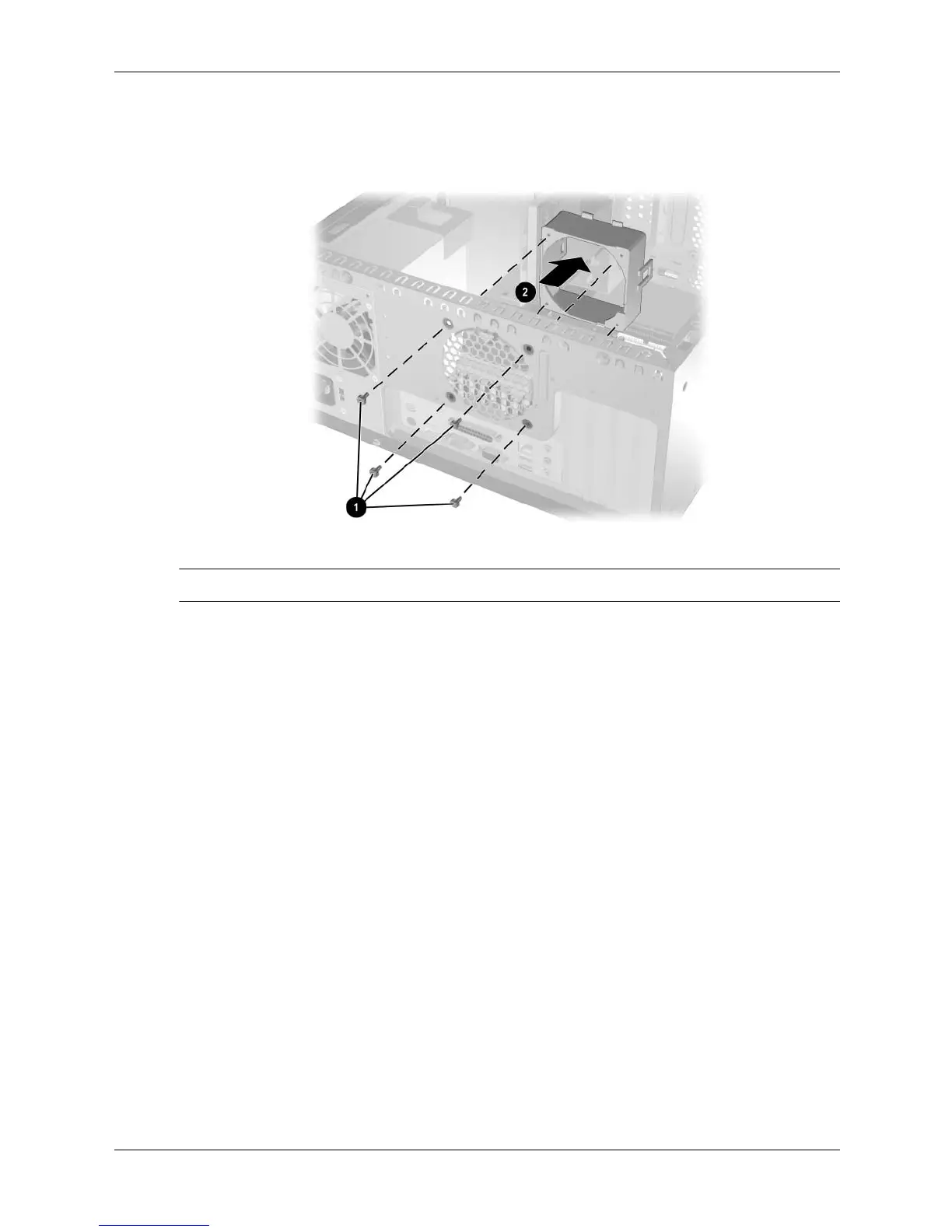

5. The fixed portion of the air baffle can be removed by removing the four retaining screws
from the back of the chassis 1 and then pulling the part towards the front of the computer 2
to release it.
To install the air baffle, reverse the removal procedures.
✎
When replacing the fixed portion of the air baffle, make sure that the two prongs are facing up.
