Service Reference Guide, dc5700 437804-001 7–9
Removal and Replacement Procedures— Small Form Factor (SFF) Chassis
7.7.2 O p ti cal Drive
Ä
CAUTION: All removable media should be taken out of the drives before removing the drive from the
computer.
An optical drive is a CD-ROM, CD-R/RW, DVD-ROM, DVD+R/RW, or CD-RW/DVD Combo
drive.
1. Prepare the computer for disassembly (Section 7.1).
2. Remove the access panel (Section 7.3).
3. Remove the front bezel (Section 7.4).

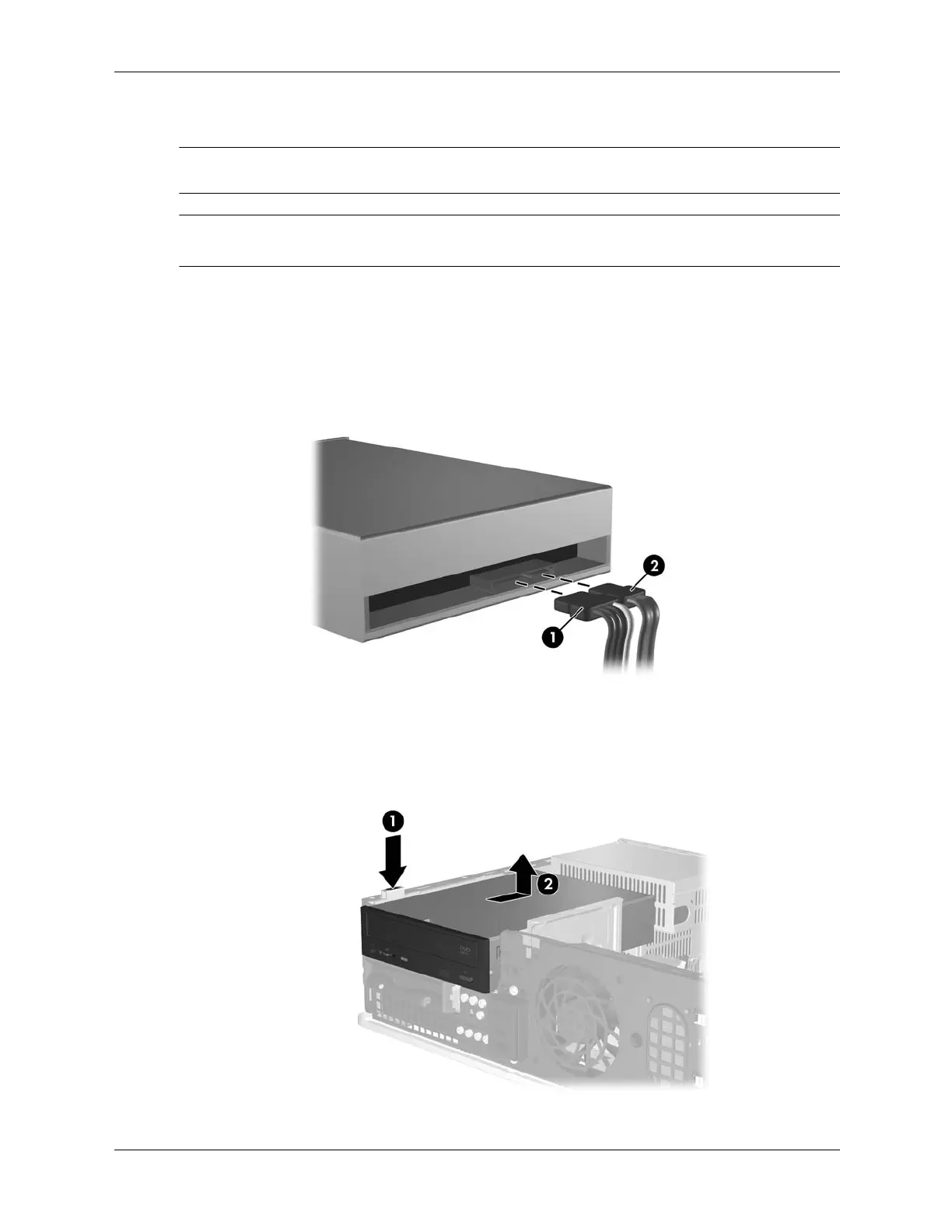

4. Disconnect the power 1 cable and data 2 cables from the rear of the optical drive.
5. Press down on the lever to the left of the drive 1, slide the drive back until it stops, and lift it
straight up and out of the drive bay 2.
