HP Compaq dc5700 MT User Manual

Service Reference Guide, dc5700 437804-001 6–33
Removal and Replacement Procedures— Microtower (MT) Chassis
6.17 System Board
1. Prepare the computer for disassembly (Section 6.1).
2. Remove the access panel and rotate the computer so the system board is parallel to the table
to make it easier to work on (Section 6.3).
3. Remove all PCI expansion cards (Section 6.8).
4. Disconnect all cables connected to the system board, noting their location for reinstallation.

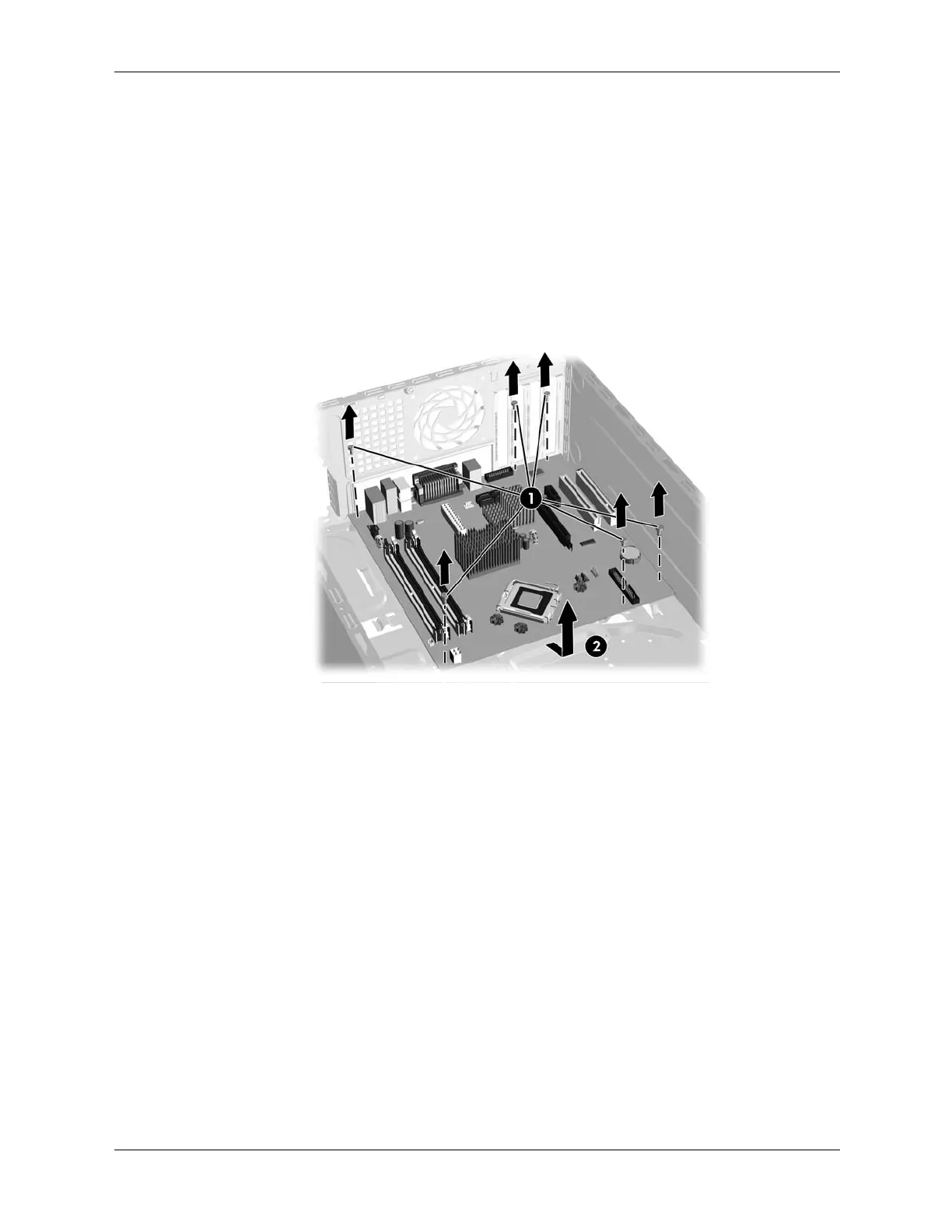

5. Remove the six screws that secure the system board to the chassis 1, then slide the system
board towards the front of the chassis to remove it 2.
To install the system board, reverse the removal procedures.

HP Compaq dc5700 MT Specifications

General

Chipset	Intel Q965 Express
Audio	Integrated High Definition audio
Network	Integrated Broadcom NetXtreme Gigabit Ethernet
Power Supply	300W
Form Factor	Microtower
Processor	Intel Pentium D, Intel Celeron D
Memory	Up to 4 GB DDR2
Graphics	Intel Graphics Media Accelerator 3000
Optical Drive	DVD-ROM
Expansion Slots	1 PCI Express x16
Ports	USB 2.0, VGA, serial, parallel
Operating System	Windows XP Professional, Windows Vista
Storage	SATA Hard Drive
