Service Reference Guide, dc5700 437804-001 7ā27
Removal and Replacement Proceduresā Small Form Factor (SFF) Chassis
7.15 S pe aker
1. Prepare the computer for disassembly (Section 7.1).
2. Remove the access panel(Section 7.3).
3. Remove the fan shroud (Section 7.11).
4. Disconnect the speaker wire from the system board.

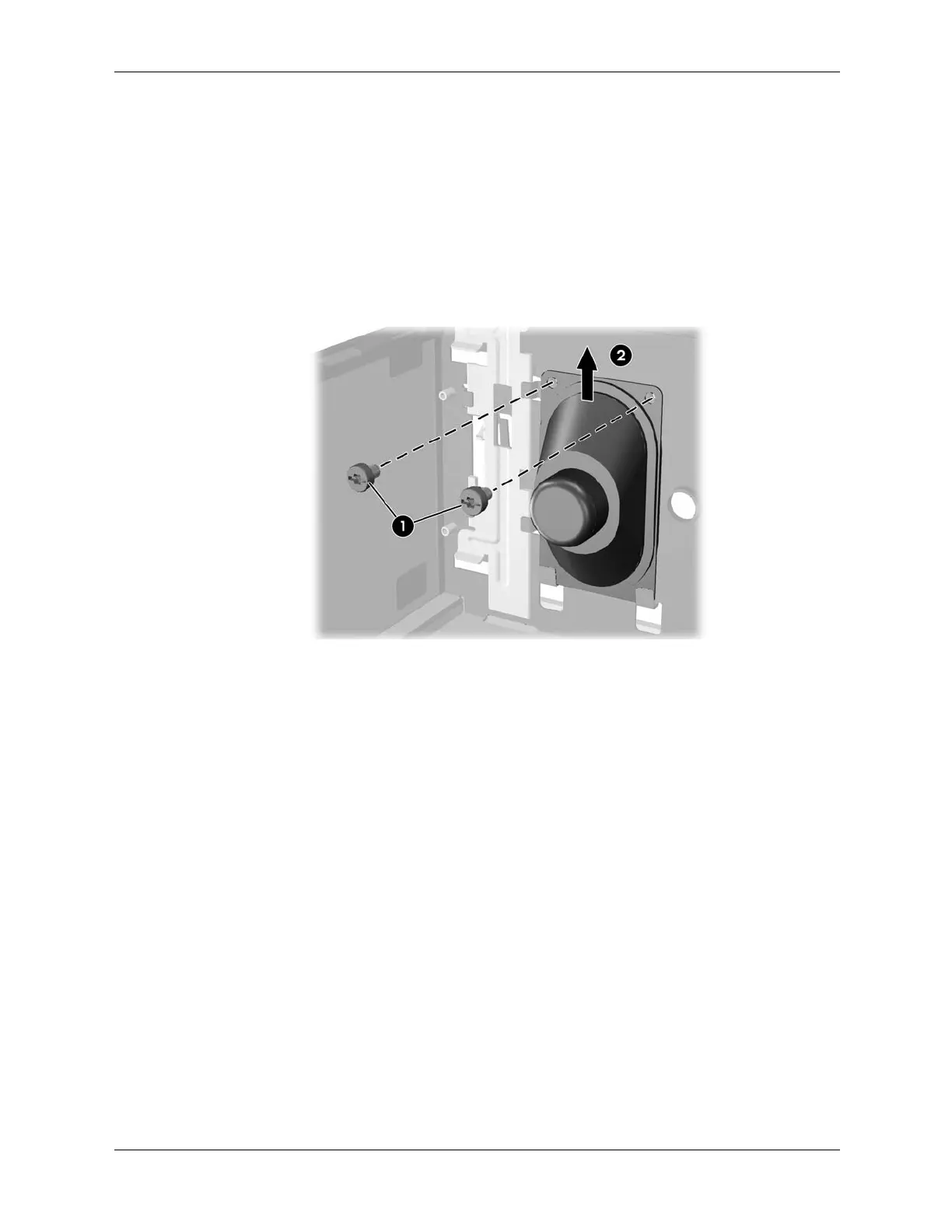

5. Remove the two screws that secure the speaker to the chassis 1, then lift the speaker up and
out of the chassis 2.
To install the speaker, reverse the removal procedures.
