7–26 437804-001 Service Reference Guide, dc5700
Removal and Replacement Procedures— Small Form Factor (SFF) Chassis

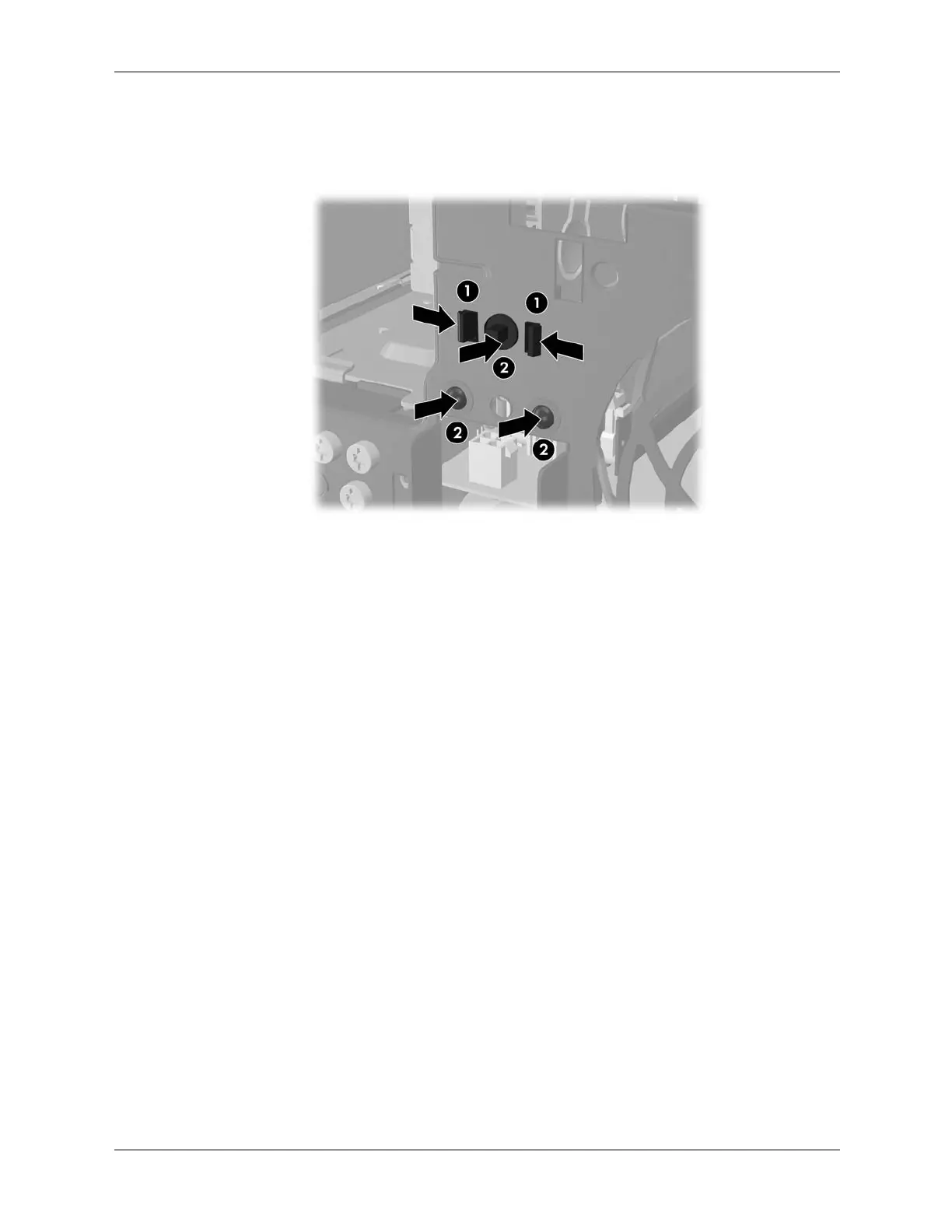

7. Squeeze the switch holder retaining clips together at the front of the chassis 1 and push the
switch assembly out of the chassis 2. Push the two LEDs out of the chassis 3.
To install the power switch and LEDs, reverse the removal procedure.
