Service Reference Guide, dc5700 437804-001 7ā15
Removal and Replacement Proceduresā Small Form Factor (SFF) Chassis

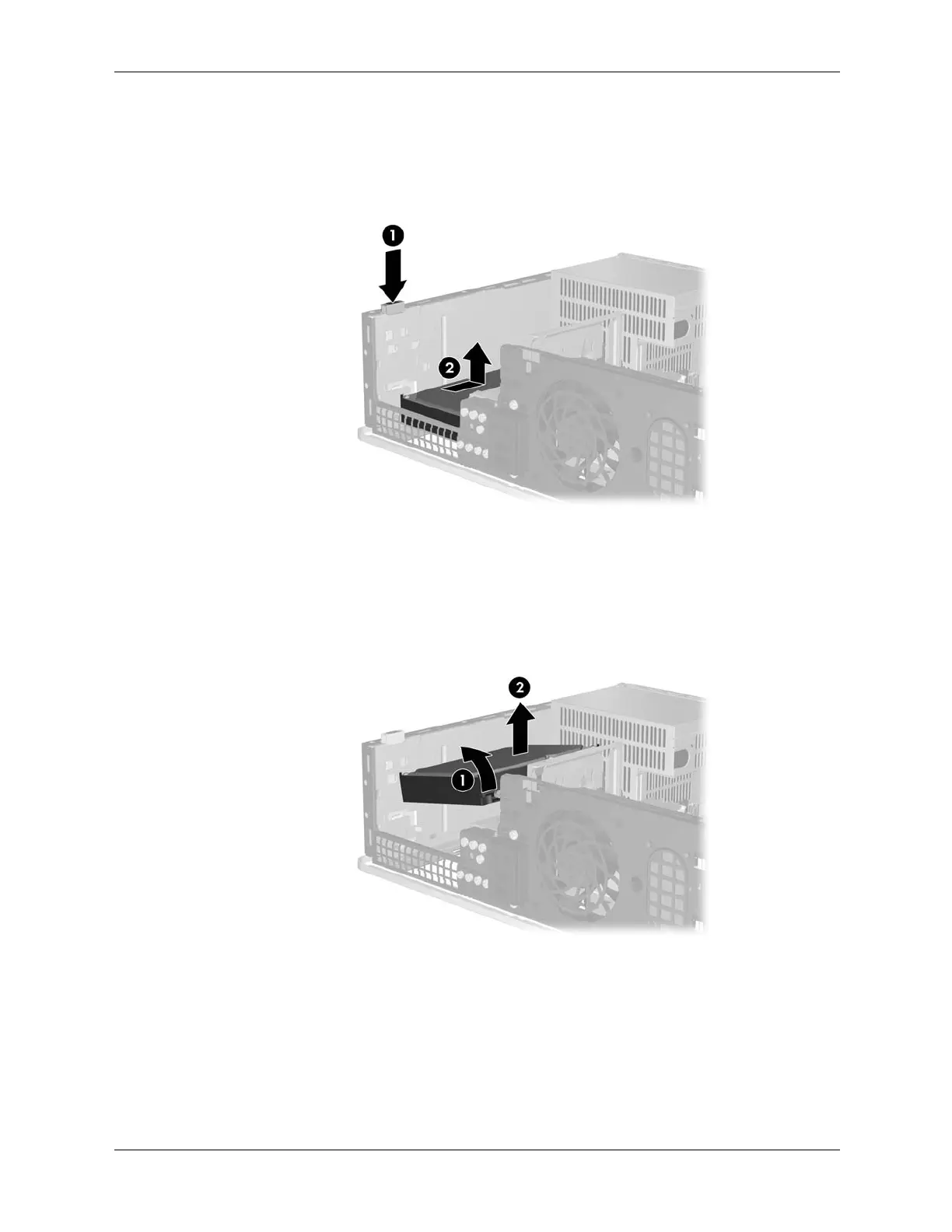

7. Press down on the lever to the left of the hard drive 1, slide the drive back until it stops, and
lift it straight up 2.
8. Tilt the left side of the hard drive down slightly 1 so that the top lips of the guide screws are
not caught behind the metal frame, then pull the drive out of the drive bay 2.
To install a hard drive, reverse the removal procedure.
