HP Compaq dc5700 MT User Manual

Service Reference Guide, dc5700 437804-001 A–3

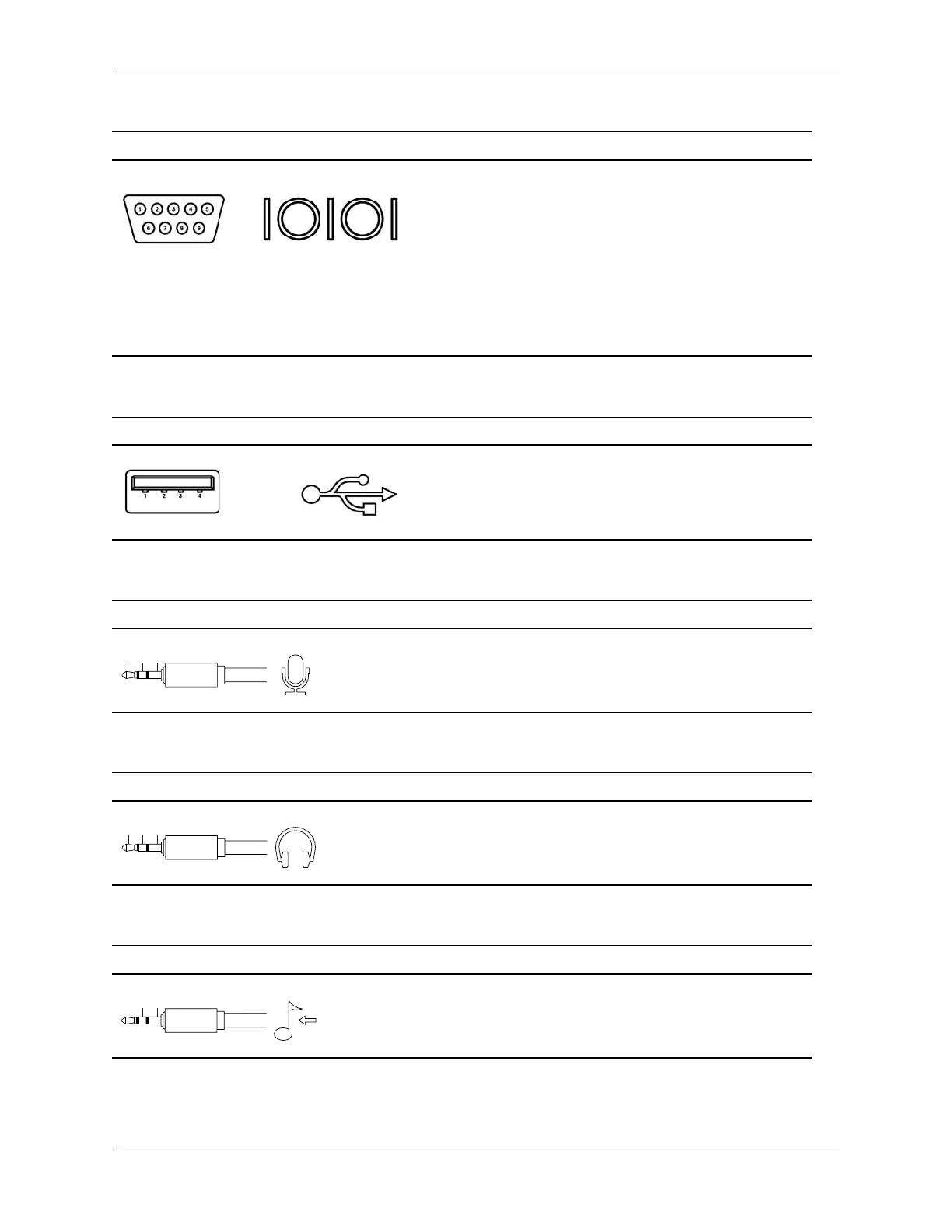

Connector Pin Assignments
Serial Interface, Powered and Non-Powered
Connector and Icon Pin Signal
1
2
3
Carrier Detect (12V if powered)
Receive Data
Transmit Data
4
5
6
Data Terminal Ready
Signal Ground
Data Set Ready
7
8
9
Request to Send
Clear to Send
Ring Indicator (5V if powered)
USB
Connector and Icon Pin Signal
1
2
3
4
+5 VDC
- Data
+ Data
Ground
Microphone
Connector and Icon (1/8” miniphone) Pin Signal
1 (Tip) Left audio and power
2 (Ring) Right audio and power
3 (Shield) Ground
1
2
3
1
2
3
Headphone
Connector and Icon (1/8” miniphone) Pin Signal
1 (Tip) Audio_Left
2 (Ring) Audio_Right
3 (Shield) Ground
1
2
3
Line-In Audio
Connector and Icon (1/8” miniphone) Pin Signal
1 (Tip) Audio_In_Left
2 (Ring) Audio_In_Right
3 (Shield) Ground
1
2
3

HP Compaq dc5700 MT Specifications

General

Chipset	Intel Q965 Express
Audio	Integrated High Definition audio
Network	Integrated Broadcom NetXtreme Gigabit Ethernet
Power Supply	300W
Form Factor	Microtower
Processor	Intel Pentium D, Intel Celeron D
Memory	Up to 4 GB DDR2
Graphics	Intel Graphics Media Accelerator 3000
Optical Drive	DVD-ROM
Expansion Slots	1 PCI Express x16
Ports	USB 2.0, VGA, serial, parallel
Operating System	Windows XP Professional, Windows Vista
Storage	SATA Hard Drive
