Hardware Reference Guide www.hp.com 2-15
Hardware Upgrades
8. Install the expansion card by sliding the card under the slot cover
retention latch then pressing the card down into the slot on the
system board.
✎
Be sure not to scrape other components in the chassis when installing
an expansion card.

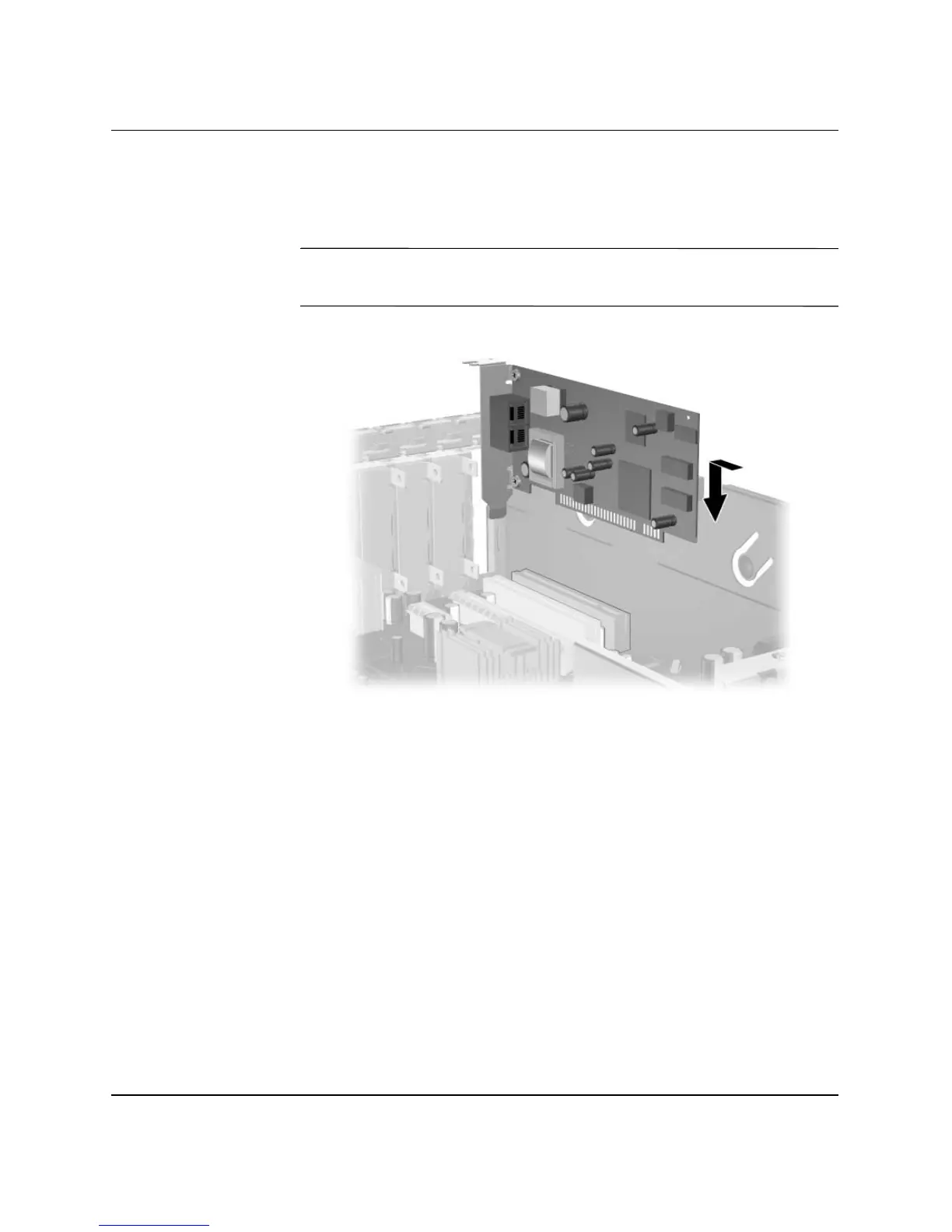

Installing an Expansion Card
9. Rotate the slot cover retention latch back in place to secure the
expansion card.
10. Connect external cables to the installed card, if needed. Connect
internal cables to the system board, if needed. If the card requires
audio, connect the audio cable to the connector on the system
board labeled “Aux” (located towards the edge of the system
board under the power supply cage).
11. Replace the computer cover.
12. Plug in the power cord and and turn on the computer.
13. If you normally lock the Smart Cover Lock, use Computer Setup
to relock the lock and enable the Smart Cover Sensor.

HP Compaq dc7600 SFF Specifications

General

Processor Speed	Up to 3.8 GHz
Memory	Up to 4 GB DDR2 SDRAM
Form Factor	Small Form Factor (SFF)
Power Supply	240W
Processor	Intel Pentium 4, Intel Celeron D
Storage	Up to 250 GB SATA HDD
Graphics	Intel Graphics Media Accelerator 950
Optical Drive	DVD-ROM, DVD\u00b1RW
Network	Integrated Gigabit Ethernet
Expansion Slots	1 low-profile PCI Express x16, 1 low-profile PCI Express x1, 1 low-profile PCI
Ports	USB 2.0, serial, parallel, PS/2, VGA
Operating System	Windows XP Professional
Chipset	Intel 945G Express Chipset
