Product Features

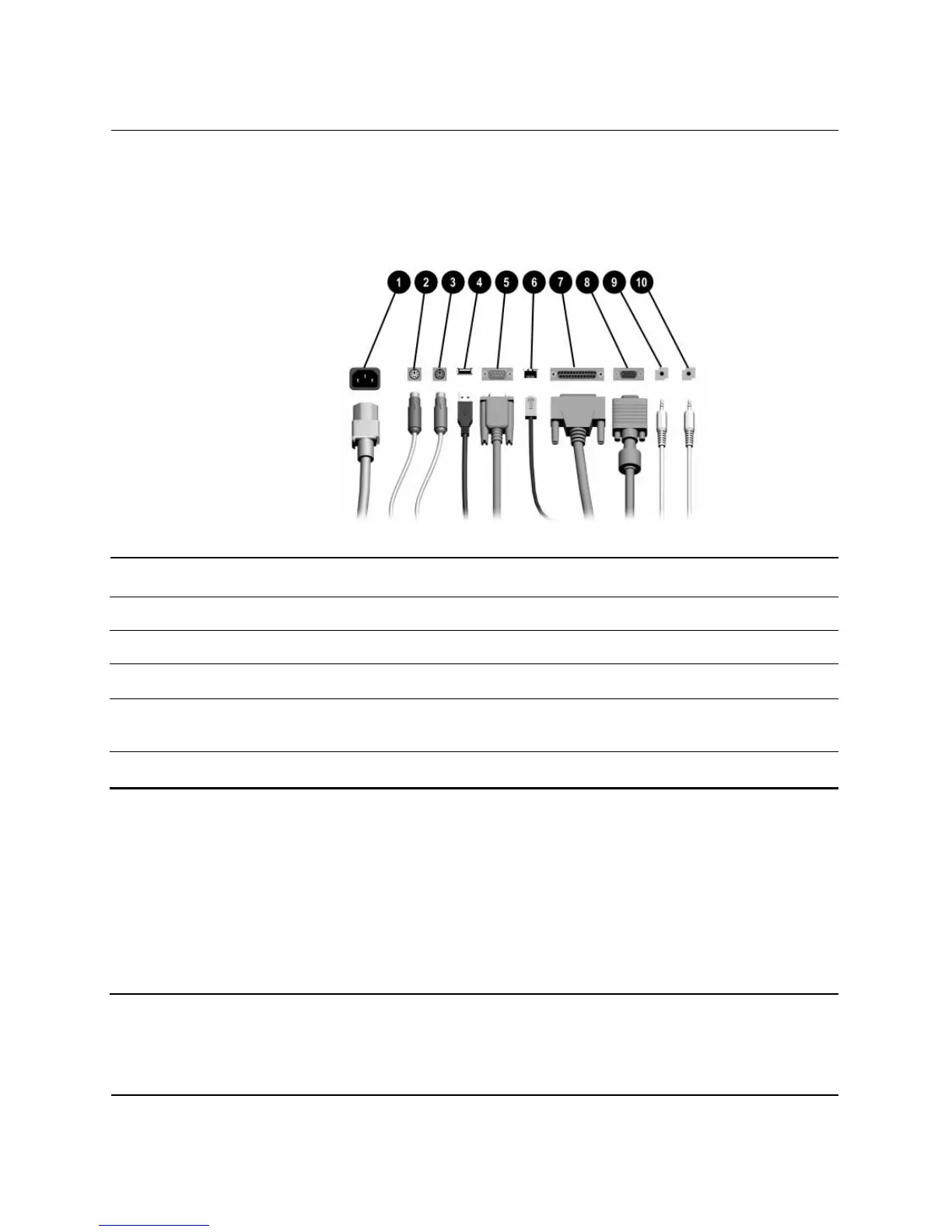

Rear Panel Components
Rear Panel Components
1 Power Cord Connector 6
n
RJ-45 Network Connector
2
b
PS/2 Mouse Connector (green) 7
l
Parallel Connector
3
a
PS/2 Keyboard Connector (purple) 8
c
Monitor Connector
4
o
Universal Serial Bus (USB) 9
k
Line-Out Connector for powered
audio devices (green)
5
m
Serial Connector* -
j
Line-In Audio Connector (blue)
✎
Arrangement and number of connectors may vary by model.
The monitor connector on the system board is inactive when a PCI Express graphics card is
installed in the computer.
If an ADD2 graphics card is installed, the connectors on the card and the system board may
be used at the same time. Some settings may need to be changed in Computer Setup to use
both connectors. For information about Boot Order, refer to the Computer Setup (F10) Utility
Guide on the Documentation and Diagnostics CD.
*An optional second serial connector is available from HP.

HP Compaq dc7600 SFF Specifications

General

Processor Speed	Up to 3.8 GHz
Memory	Up to 4 GB DDR2 SDRAM
Form Factor	Small Form Factor (SFF)
Power Supply	240W
Processor	Intel Pentium 4, Intel Celeron D
Storage	Up to 250 GB SATA HDD
Graphics	Intel Graphics Media Accelerator 950
Optical Drive	DVD-ROM, DVD\u00b1RW
Network	Integrated Gigabit Ethernet
Expansion Slots	1 low-profile PCI Express x16, 1 low-profile PCI Express x1, 1 low-profile PCI
Ports	USB 2.0, serial, parallel, PS/2, VGA
Operating System	Windows XP Professional
Chipset	Intel 945G Express Chipset
