HP Compaq dc7600 SFF User Manual

Hardware Reference Guide www.hp.com 2-17
Hardware Upgrades
Removing a PCI Express x16 Expansion Card
To remove a PCI Express x16 expansion card:
1. If you have locked the Smart Cover Lock, restart the computer
and enter Computer Setup to unlock the lock.
2. Turn off the computer properly through the operating system,
then turn off any external devices.
3. Disconnect the power cord from the power outlet and disconnect
any external devices.
4. Remove the computer cover. Refer to “Removing the Computer
Cover.”
5. Release the slot cover retention latch on the back of the computer
that secures the PCI slot covers by lifting the green tab on the
latch and rotating the latch to the open position.
6. Pull the retention arm on the back of the PCI Express x16
expansion socket away from the card and carefully rock the card
back and forth until the connectors pull free from the socket. Pull
the expansion card straight up from the socket then away from the
inside of the chassis. Be sure not to scrape the card against the
other components.

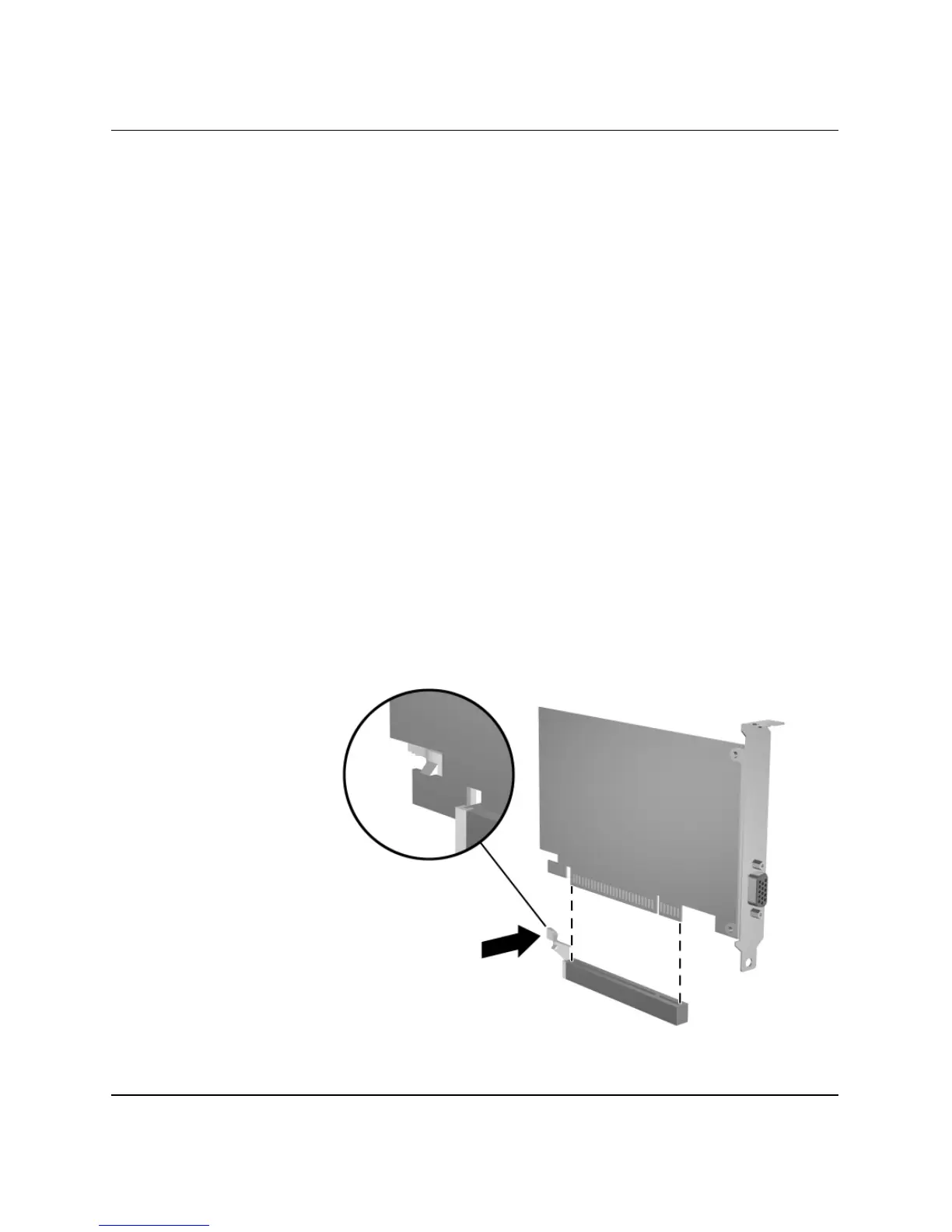

Removing a PCI Express x16 Expansion Card

HP Compaq dc7600 SFF Specifications

General

Processor Speed	Up to 3.8 GHz
Memory	Up to 4 GB DDR2 SDRAM
Form Factor	Small Form Factor (SFF)
Power Supply	240W
Processor	Intel Pentium 4, Intel Celeron D
Storage	Up to 250 GB SATA HDD
Graphics	Intel Graphics Media Accelerator 950
Optical Drive	DVD-ROM, DVD\u00b1RW
Network	Integrated Gigabit Ethernet
Expansion Slots	1 low-profile PCI Express x16, 1 low-profile PCI Express x1, 1 low-profile PCI
Ports	USB 2.0, serial, parallel, PS/2, VGA
Operating System	Windows XP Professional
Chipset	Intel 945G Express Chipset
