4. Lift the rear of the drive up so that the rear guide screws clear the
top of the drive cage 1. As the drive rises it automatically slides
forward until it is free from the drive cage 2.

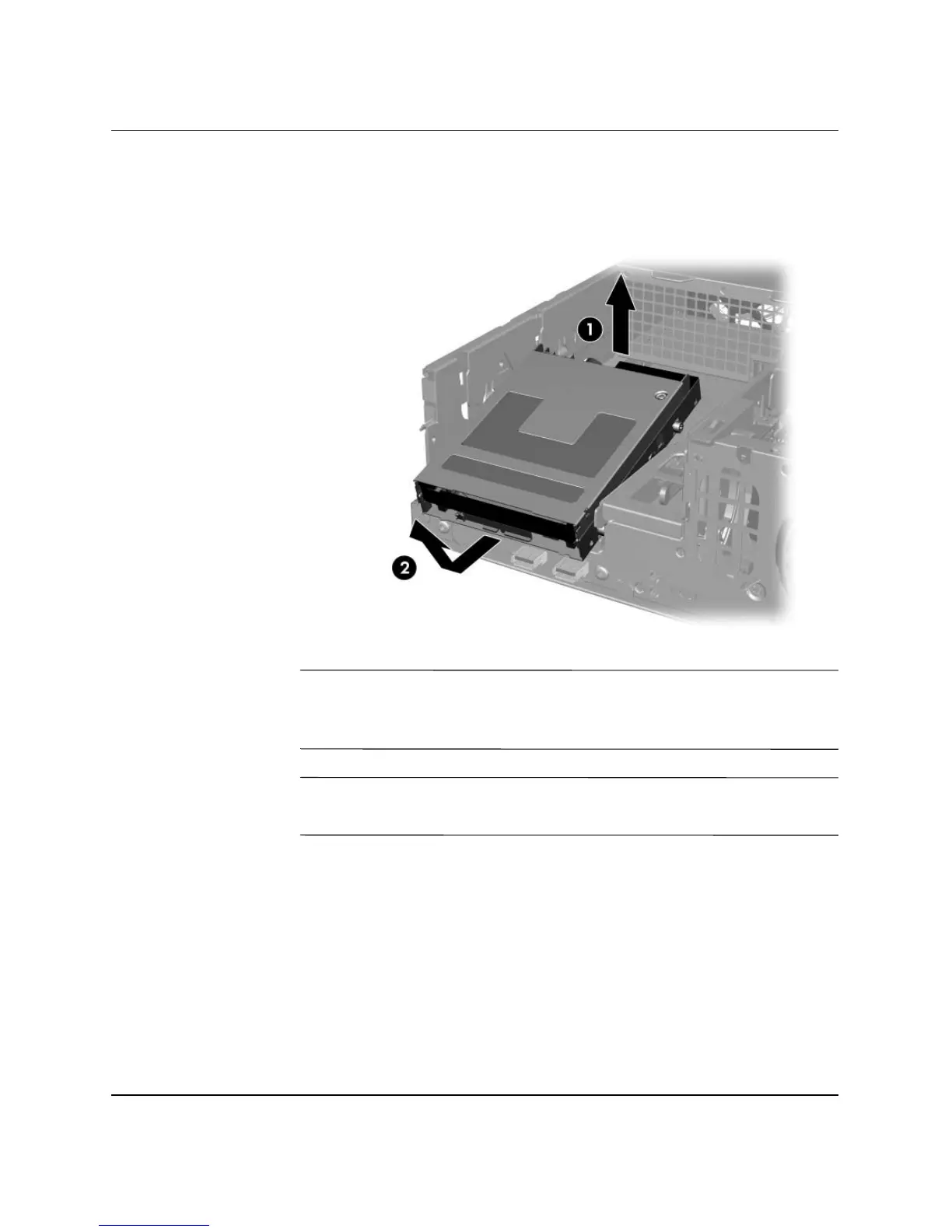

Removing the Diskette Drive
✎
To replace the diskette drive, reverse the removal procedure making
sure you slide the front guide screws into the cage first then rotate the
rear of the drive down and slide it back until it locks into position.
✎
When replacing a drive, transfer the four guide screws from the old
drive to the new one. The screws take the place of drive rails.
