Hardware Reference Guide www.hp.com 2-41
Hardware Upgrades
3. Align the rear guide screws with the rear J-slots on the drive cage
and press down on the rear of the drive 1, then slide the drive
back until it locks into place 2.

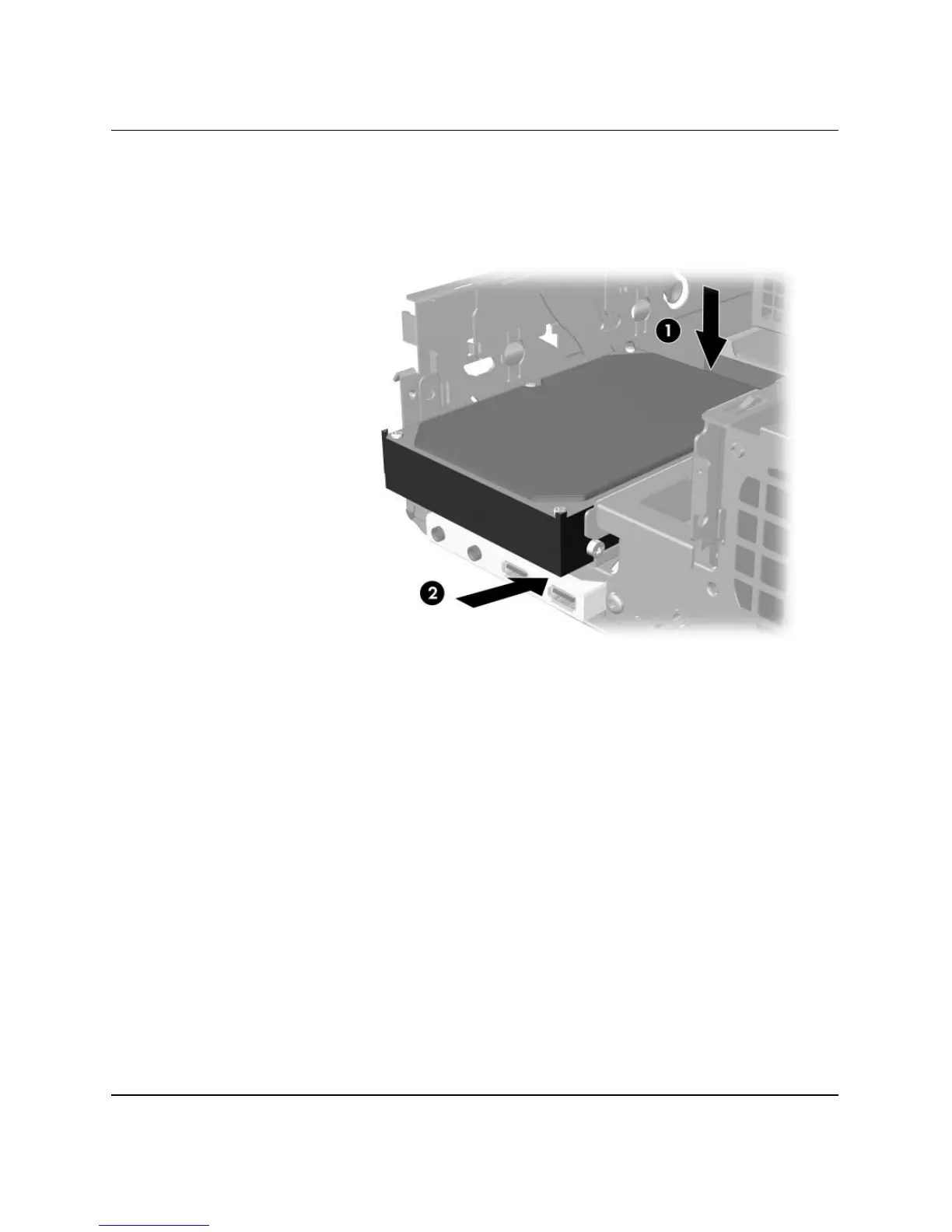

Installing a Drive into the 3.5-inch Drive Bay (Hard Drive shown)
4. Connect the power and data cables to the rear of the drive. If
installing a second hard drive, connect the other end of the data
cable to the white system board connector labeled P61 SATA 1.
5. Replace the optical drive.
