Service Reference Guide, dx7300 433611-001 6 –33
Removal and Replacement Procedures— Microtower (MT) Chassis

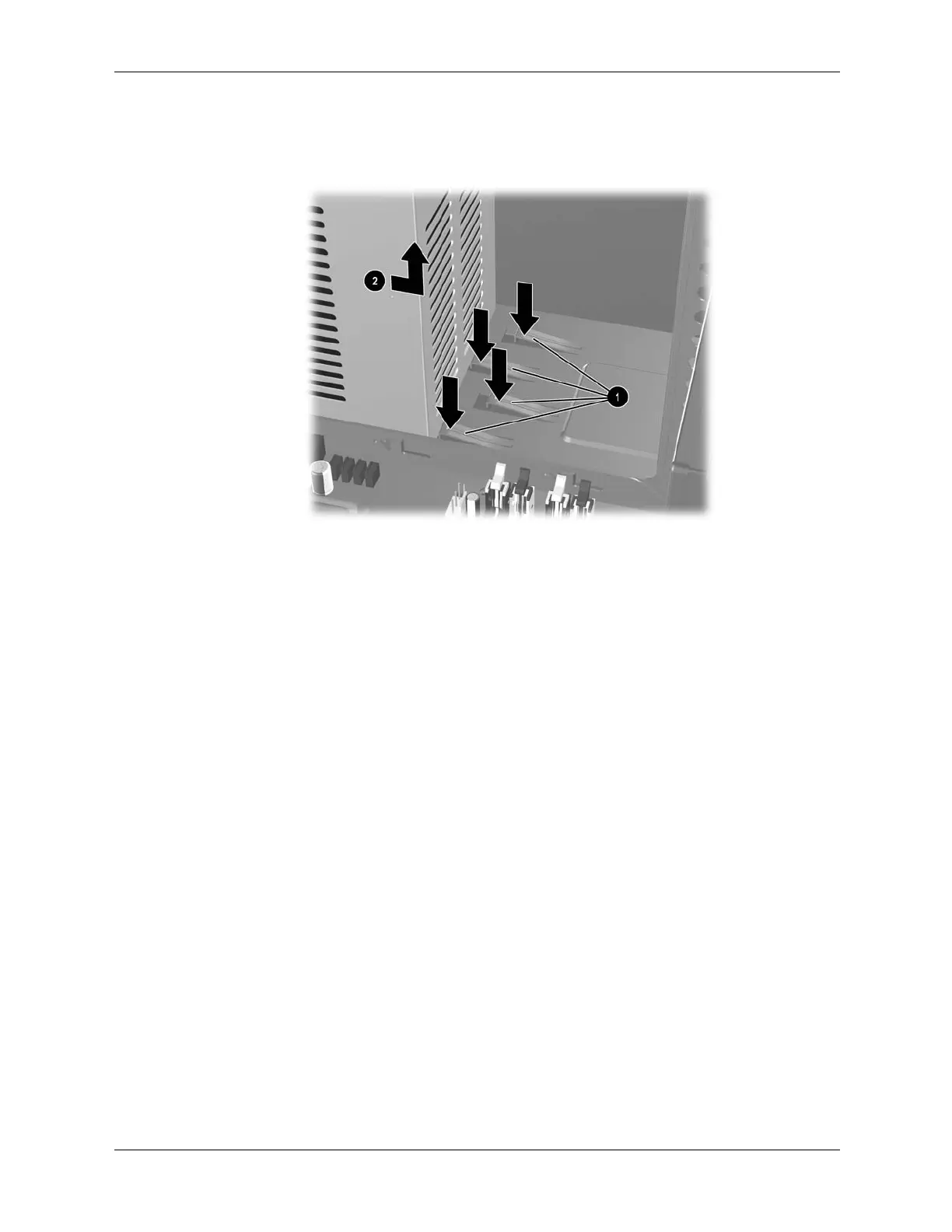

5. Pull the power supply towards the front of the chassis while depressing the two sets of
retaining clips 1 to allow the power supply to move far enough to lift it from the chassis 2.
To install the power supply, reverse the removal procedure.
