Service Reference Guide, dx7300 433611-001 6–25
Removal and Replacement Procedures— Microtower (MT) Chassis
6.12 Front I/O Devices
1. Prepare the computer for disassembly (Section 6.1).
2. Remove the access panel and rotate the computer so the system board is parallel to the table
to make it easier to work on (Section 6.3).
3. Remove the front I/O panel assembly (Section 6.11).

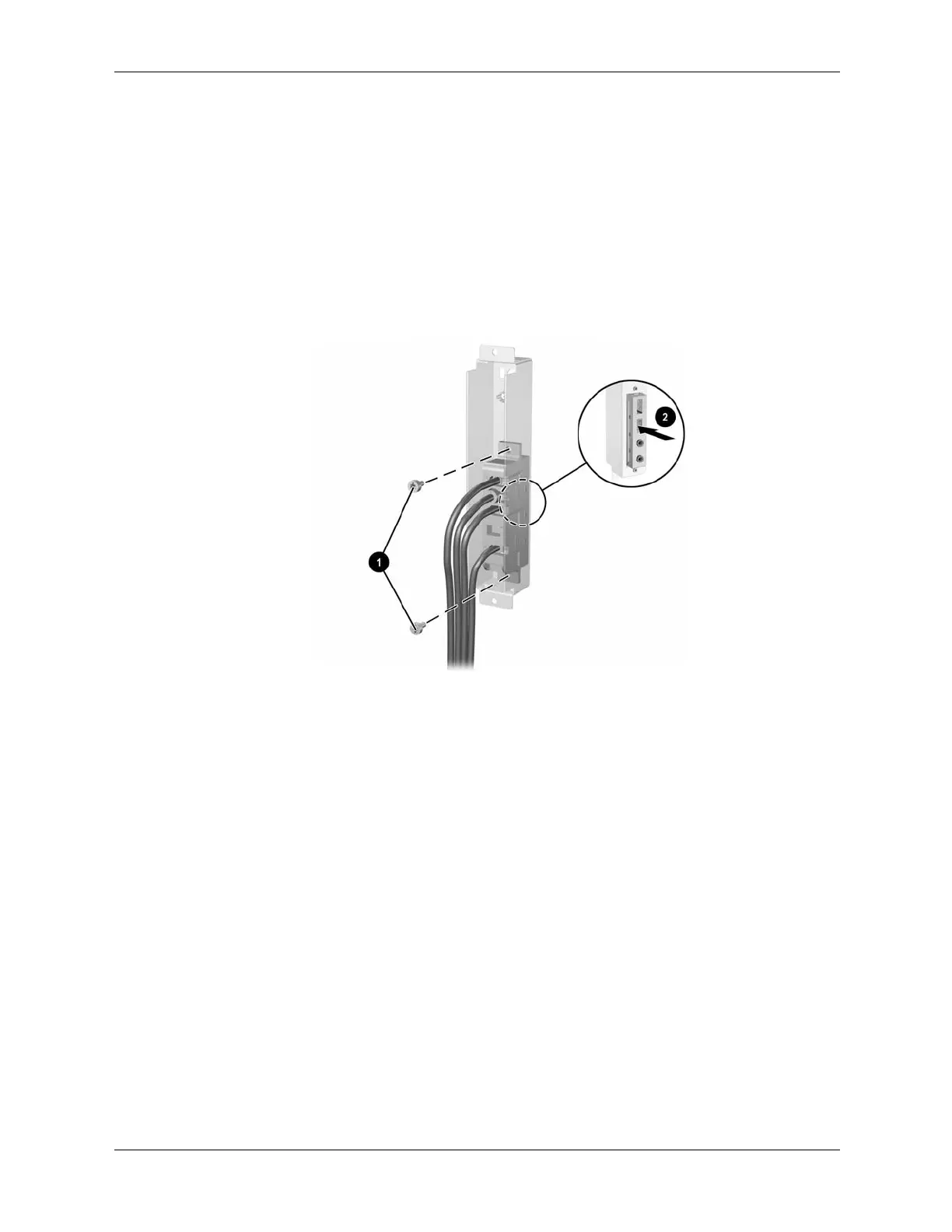

4. Remove the two screws that hold the USB and audio port assembly in place 1.
5. Remove the I/O device assembly from the I/O panel by pushing it out of the housing 2.
To install the I/O devices, reverse the removal procedures and then reinstall the housing
assembly.
