6–18 433611-001 Service Reference Guide, dx7300
Removal and Replacement Procedures— Microtower (MT) Chassis
6.9.2 Removing a Drive
1. Remove any removable media, such as a compact disc or diskette, from the drive.
2. Prepare the computer for disassembly (Section 6.1).
3. Remove the access panel and rotate the computer so the system board is parallel to the table
to make it easier to work on (Section 6.3).
4. Remove the front bezel (Section 6.4).
5. Disconnect the power and data cables from the back of the drive, as shown in the following
illustrations.

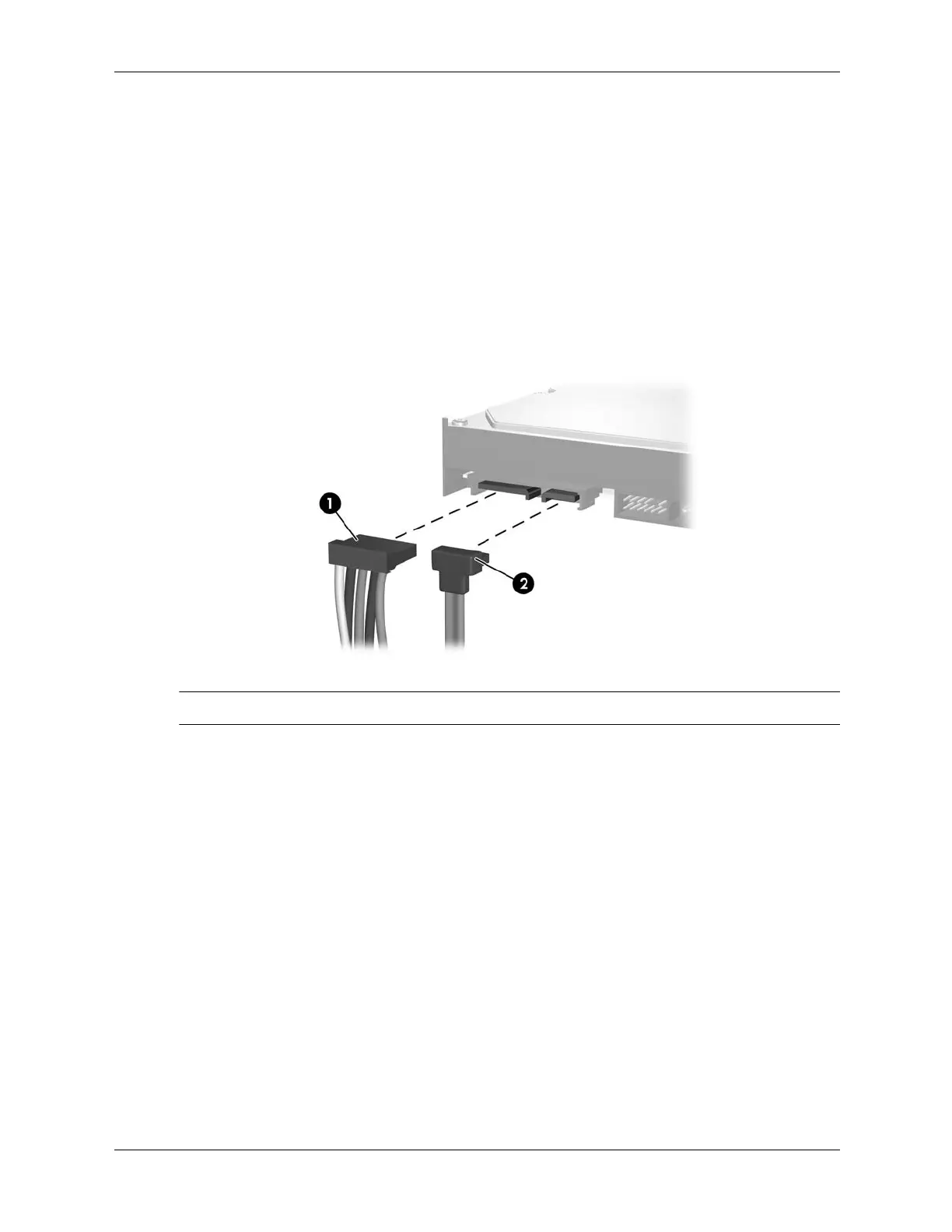

Disconnecting Optical or Hard Drive Cables
✎
Some products use straight cable connectors while others use right angle connectors.
