6–8 433611-001 Service Reference Guide, dx7300
Removal and Replacement Procedures— Microtower (MT) Chassis
6.5.2 Diskette Drive Bezel

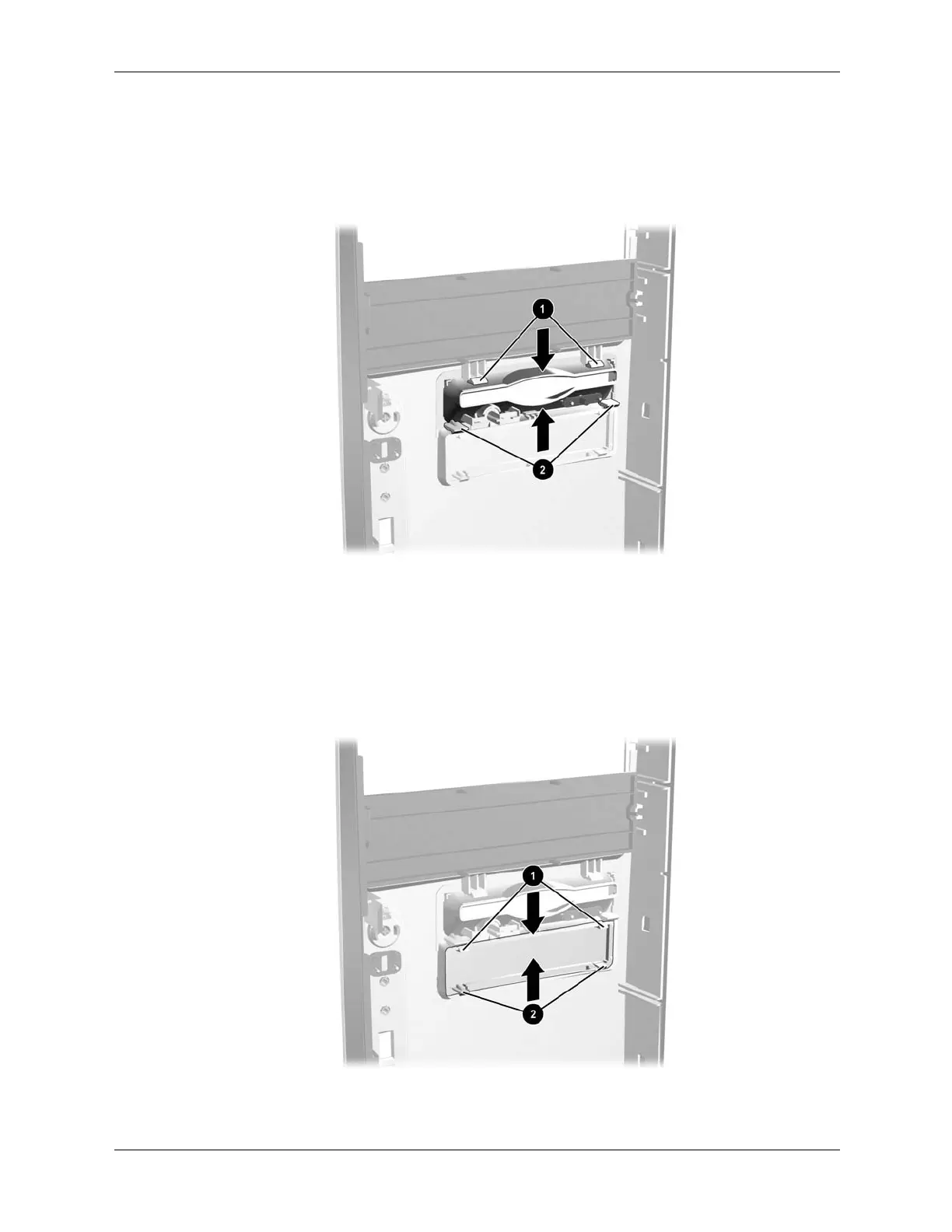

Press the two upper 1 or the two lower 2 tabs for the diskette drive bezel towards the center of
the drive bezel and push the bezel out to remove it from the front bezel.
To install a bezel or a bezel blank, reverse the removal procedure.
6.5.3 3.5" Drive Bezel Blank
Press the two upper 1 or the two lower 2 tabs for the 3.5" drive bezel towards the center of the
3.5" drive bezel and push the bezel blank out to remove it from the front bezel.
To install a bezel blank, reverse the removal procedure.
