7–26 433611-001 Service Reference Guide, dx7300
Removal and Replacement Procedures— Slim Tower (ST) Chassis
6. Rotate the drive cage down to its normal position before trying to remove the drive.

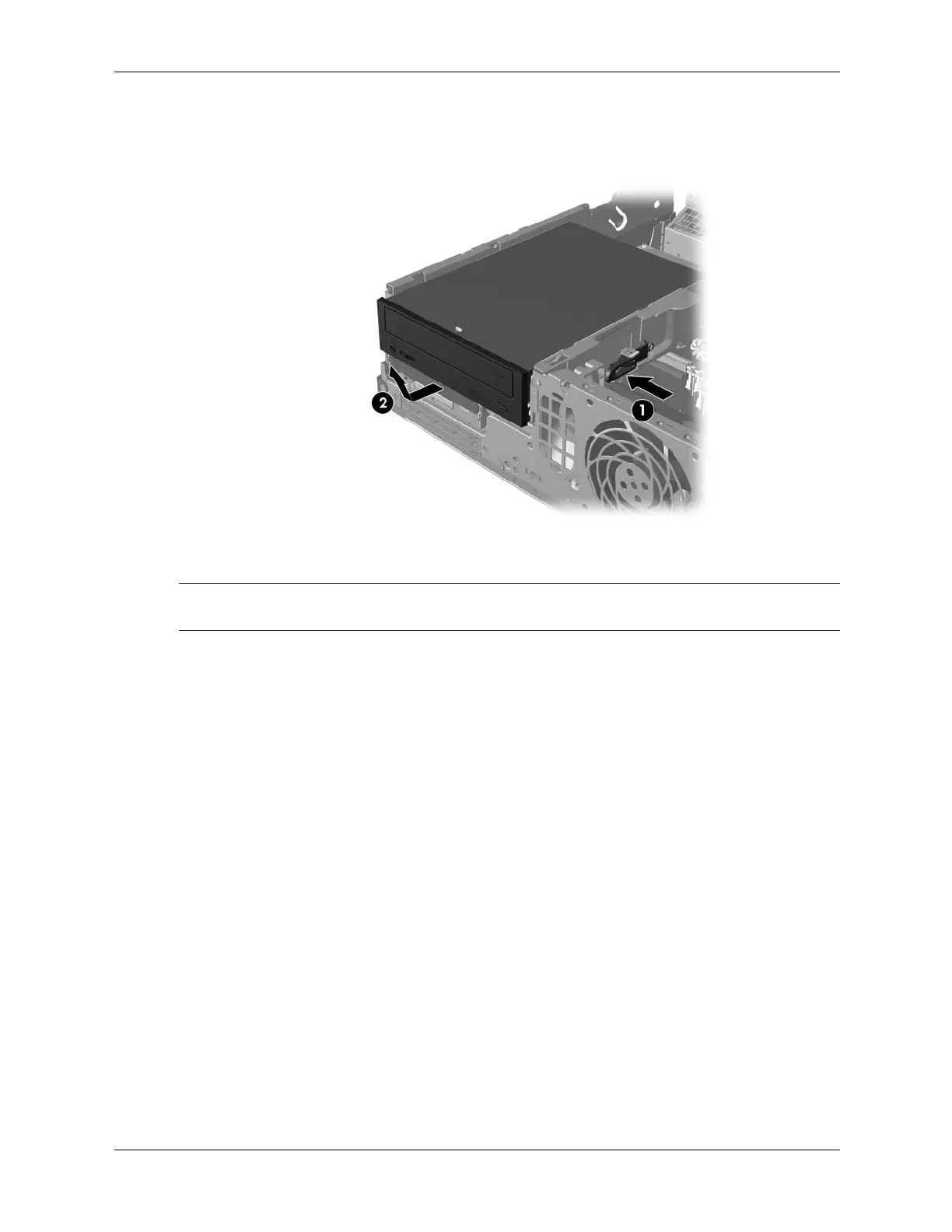

7. Press the green drive retainer latch and slide the drive forward and lift it from the drive cage.
8. When replacing the drive, transfer the four screws from the old drive to the new one. The
screws take the place of drive rails.
Ä
CAUTION: Use only 5-mm long screws as guide screws. Longer screws can damage the internal
components of the drive.
