7–28 433611-001 Service Reference Guide, dx7300
Removal and Replacement Procedures— Slim Tower (ST) Chassis

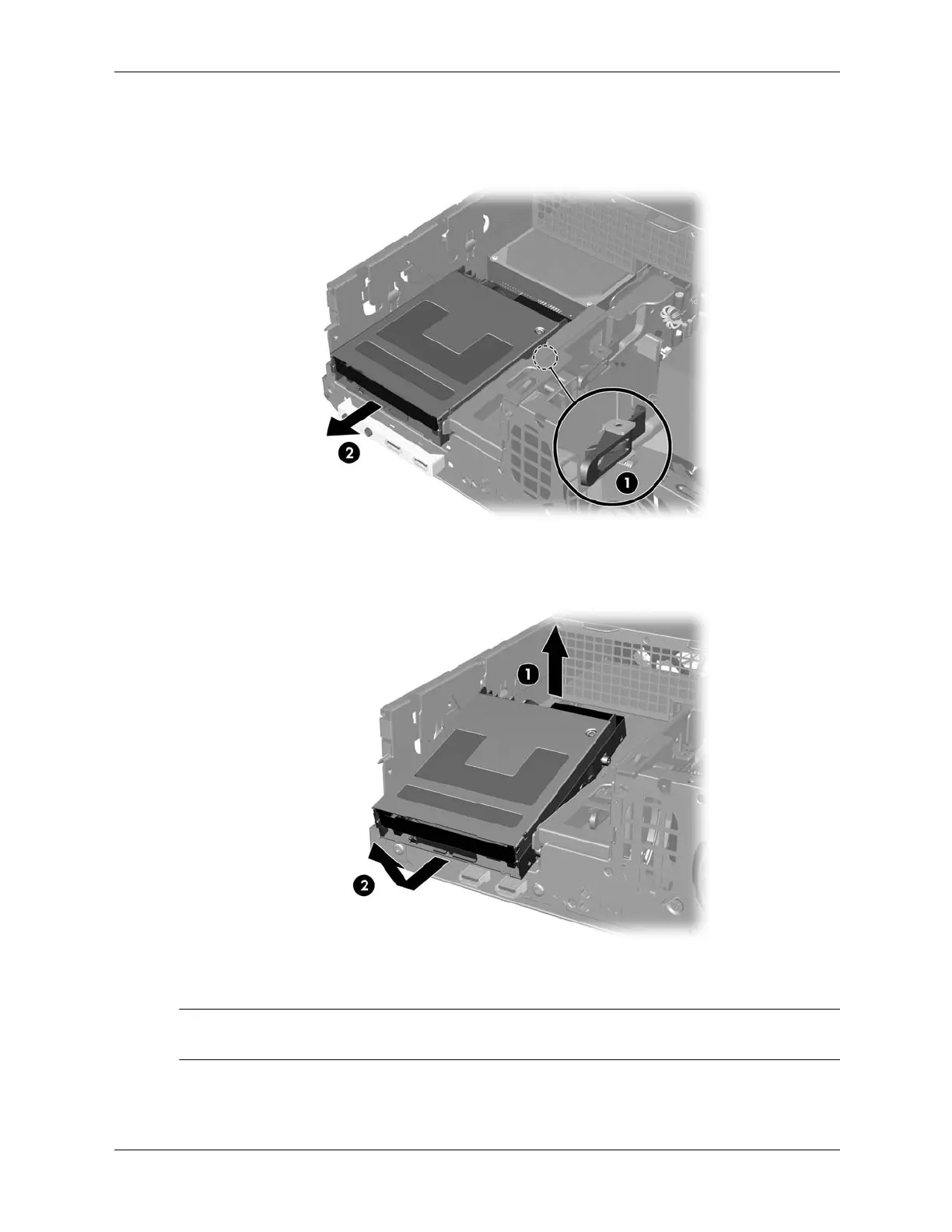

8. Press the green drive retention latch 1 located on the side of the diskette drive to disengage
the drive from the drive cage and slide the diskette drive forward approximately 6mm
(1/4 inch) 2.
9. Lift the rear of the drive up so that the rear guide screws clear the top of the drive cage 1.
As the drive rises it automatically slides forward until it is free from the drive cage 2.
To replace the drive, reverse the removal procedure making sure you rotate the rear of the drive
down, pivoting on the front screws.
✎
When replacing the drive, transfer the four metric screws from the old drive to the new one. The
screws take the place of drive rails.
