6–6 433611-001 Service Reference Guide, dx7300
Removal and Replacement Procedures— Microtower (MT) Chassis

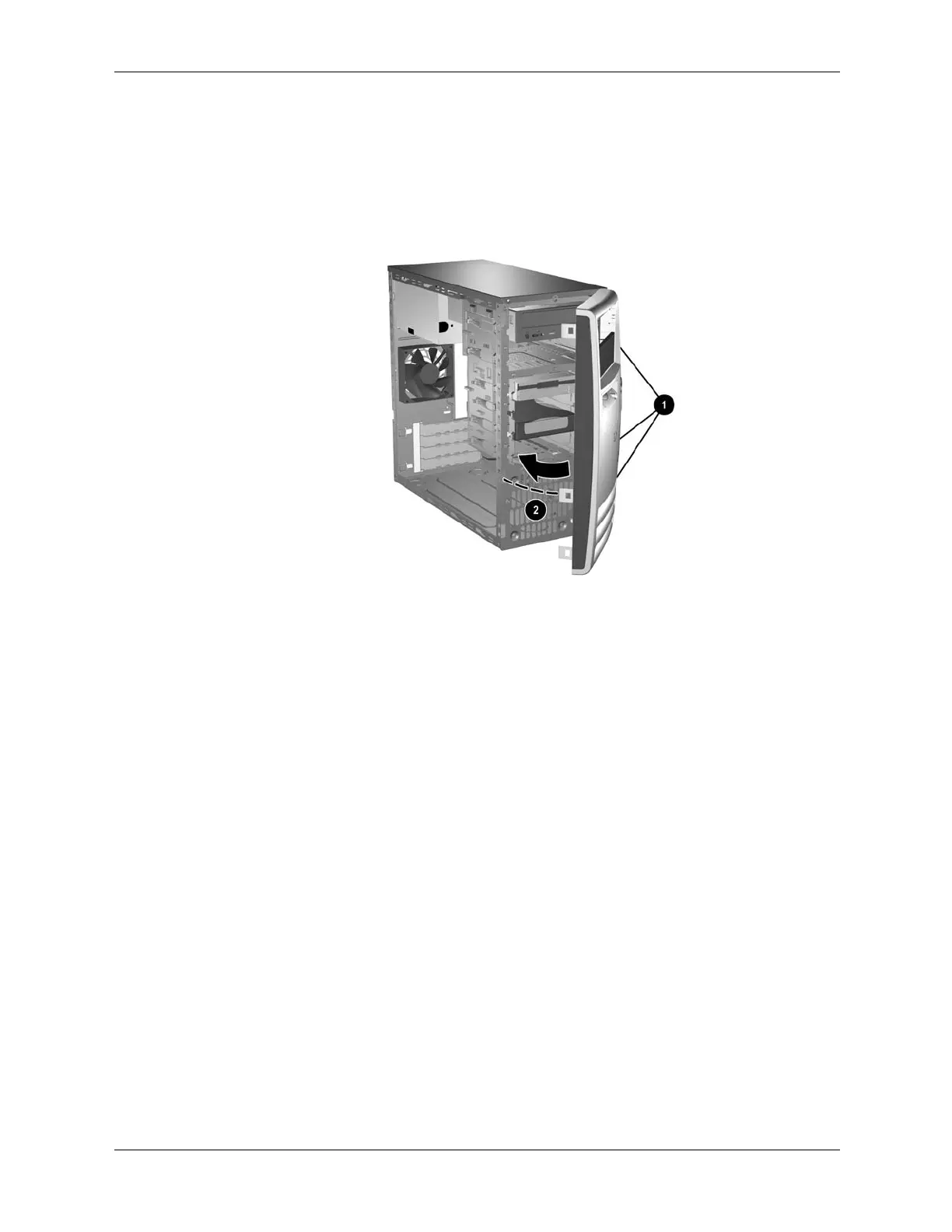

To reinstall the front bezel:
1. Position the chassis in the upright position.
2. Insert the hooks on the right side of the bezel into the rectangular holes on the chassis 1 then
rotate the bezel into place 2 so that the three tabs on the left side of the bezel and the single
tab on the upper right corner of the bezel snap into the slots on the chassis.
