1–4 Modem & Networking
Using an Internal Modem
Using a Country-Specific Modem Cable Adapter
Software for the internal modem supports multiple countries, but
telephone jacks vary by country. To use the modem and the RJ-11
cable outside the country in which you purchased the notebook,
you must obtain a country-specific modem adapter and define
your location in Dialing Properties.
To connect the modem to an analog telephone line that does not
have an RJ-11 telephone jack:
1. If the modem cable has noise suppression circuitry
1
, orient
the circuitry end of the cable toward the notebook.
2. Plug the modem cable into the RJ-11 telephone jack
2
on the
notebook.
3. Plug the country-specific modem adapter
3
into the
telephone jack.
4. Plug the modem cable
4
into the country-specific modem
adapter.

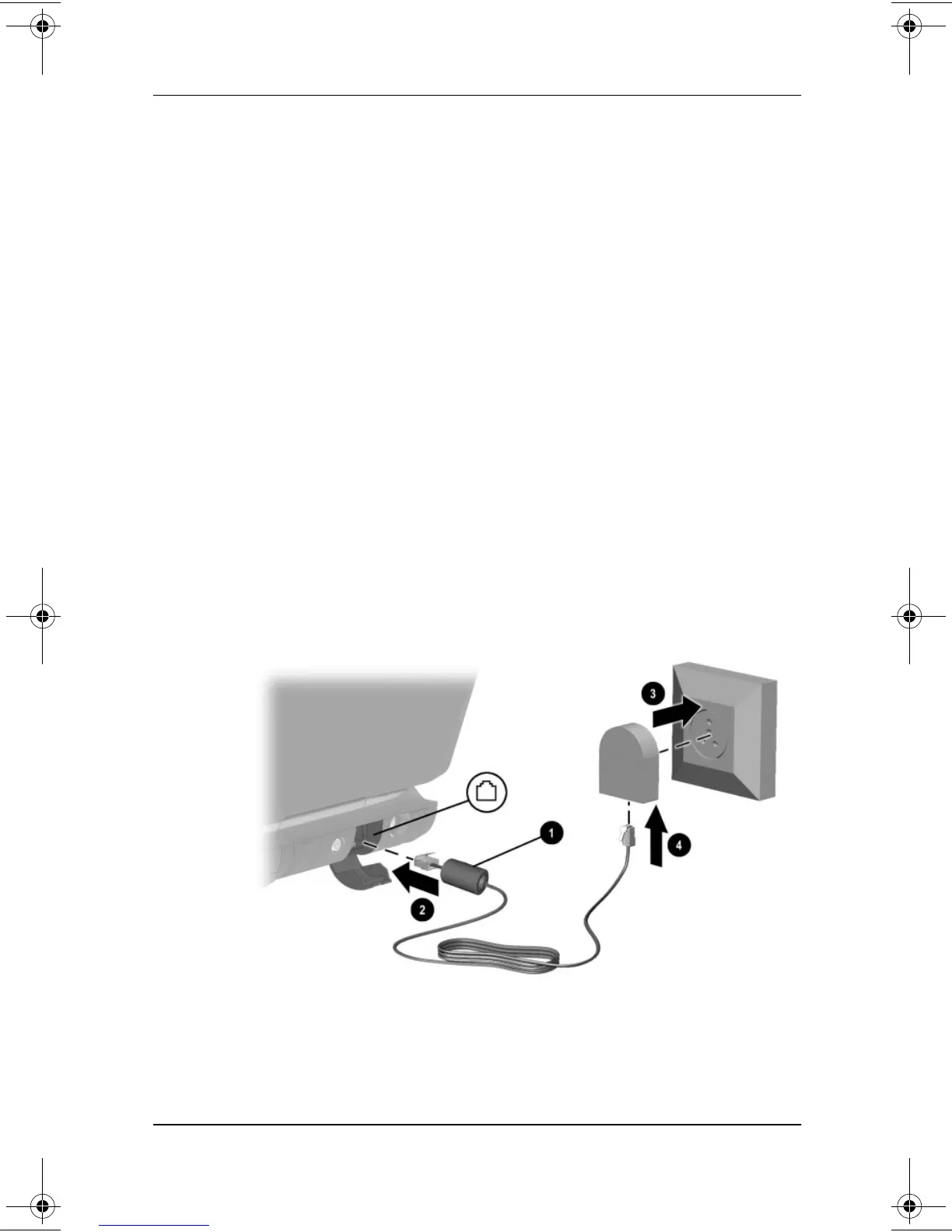

Connecting the modem using a country-specific modem
adapter
267639-001.book Page 4 Friday, January 18, 2002 8:31 AM
