Removal and Replacement Procedures
Maintenance and Service Guide 5–29
7. Position the notebook with the rear panel toward you.
8. Position the display perpendicular to the notebook.
9. Remove the two PM2.0×6.0 screws 1 that secure the
display to the notebook.
10. Lift the display straight up and remove it 2.

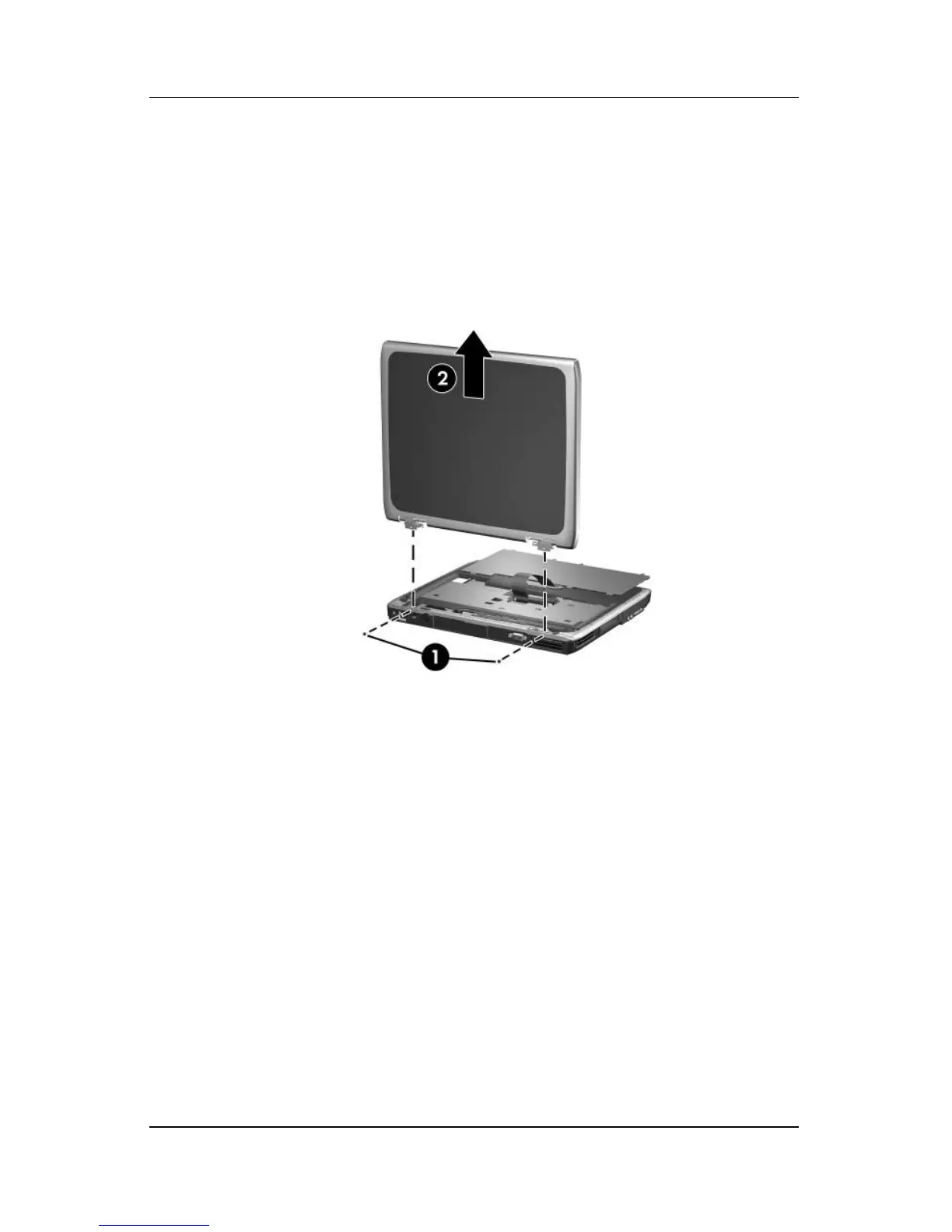

Removing the Display Assembly
Reverse the above procedure to install the display assembly.
