Removal and Replacement Procedures
Maintenance and Service Guide 5–35

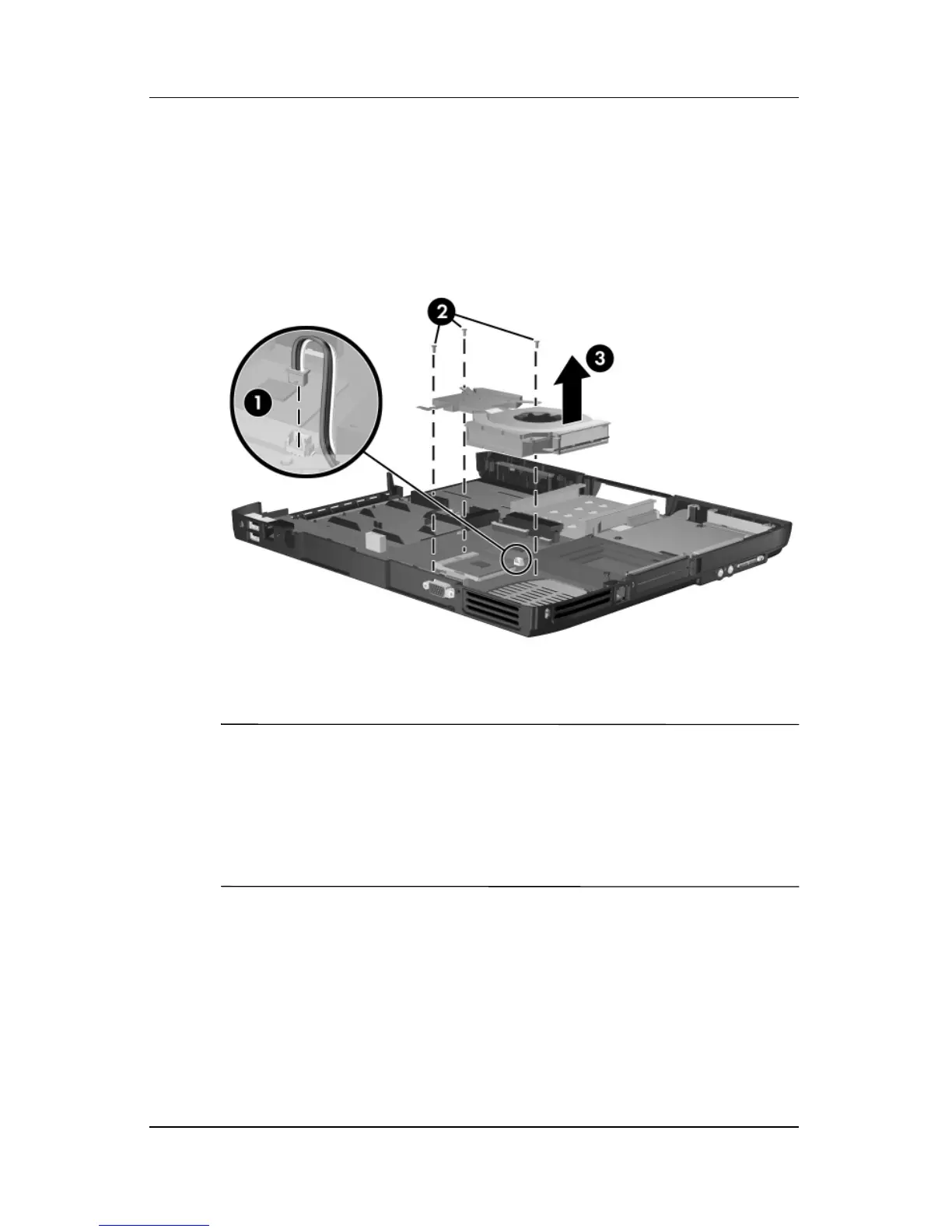

2. Disconnect the fan cable 1 from the system board.
3. Remove the three PM1.5×5.0 screws 2 that secure the
heat sink to the notebook.
4. Remove the heat sink 3.
Removing the Heat Sink
✎
Carefully clean any thermal pad residue from the heat sink and
processor surfaces each time you remove the heat sink. Install
a new thermal pad.
A thermal pad is included with the replacement heat sink and
is also available using spare part number 371809-001.
Reverse the above procedure to install the heat sink.
