Maintenance and Serv
ice Gui
de
5–43
2.

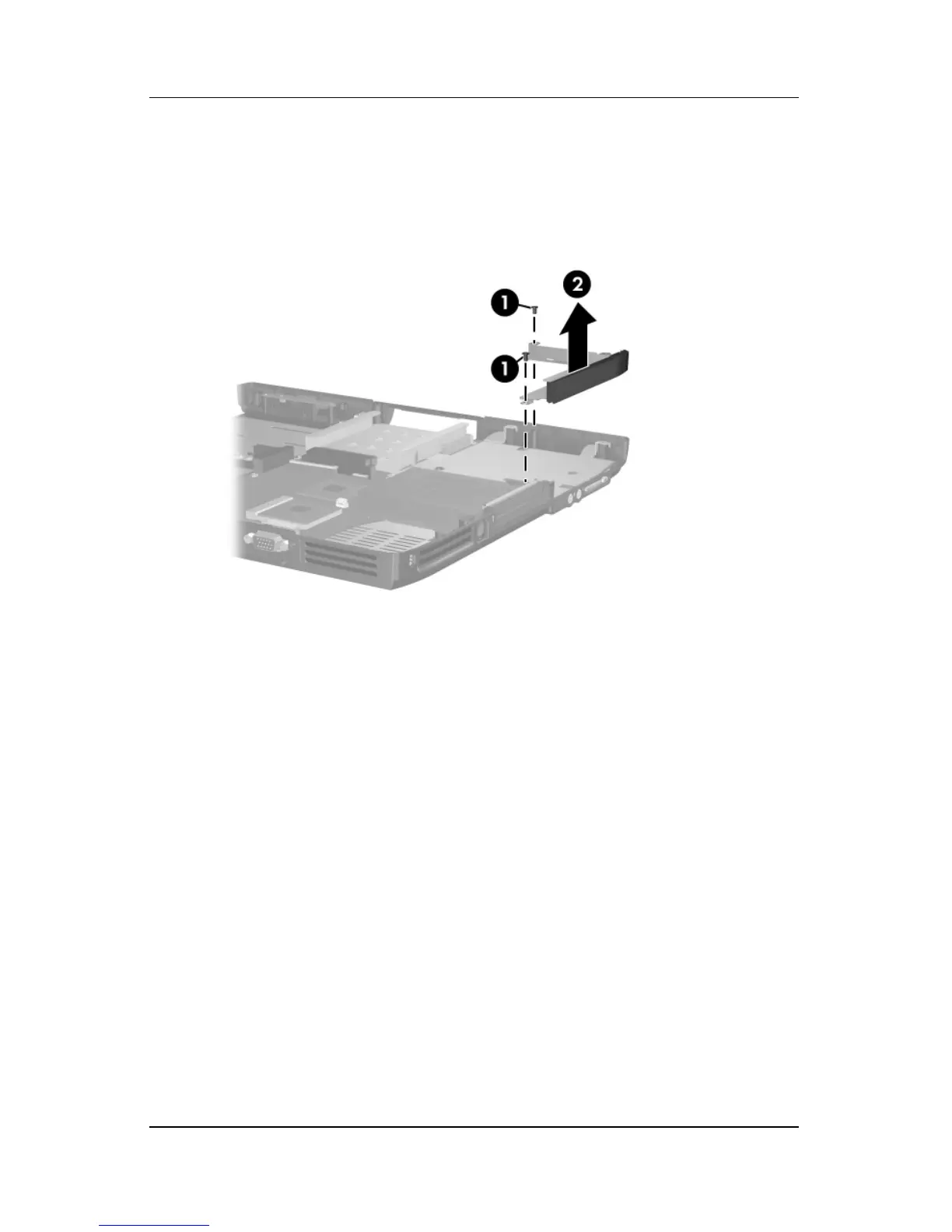

Remov
e the two PM2.0×4.0 scre
ws
1
that secure the diskette
dri
ve cov
er to the notebook.
3.
Remov
e the diskette dri
ve cov
er
2
.
R
emo
v
ing the Diskette Dr
iv
e Co
ver
Re
verse the abo
ve procedure to install the diskette dri
ve co
ver
.
130
132
Table of Contents
Default Chapter
3
Table of Contents
3
1 Product Description
5
Models
6
Features
14
Resetting the Notebook
16
Power Management
17
External Components
18
Keyboard Components
27
Top Components
31
Bottom Components
35
Design Overview
36
2 Troubleshooting
37
Computer Setup
37
Accessing Computer Setup
38
Computer Setup Defaults
38
Selecting from the File Menu
39
Selecting from the Security Menu
40
Selecting from the Tools Menu
41
Selecting from the Advanced Menu
42
Troubleshooting Flowcharts
43
Flowchart 2.1—Initial Troubleshooting
45
Flowchart 2.2—No Power, Part
46
Flowchart 2.3—No Power, Part
47
Flowchart 2.4—No Power, Part
48
Flowchart 2.5—No Power, Part
49
Flowchart 2.6—No Video, Part
50
Flowchart 2.7—No Video, Part
51
Flowchart 2.9—No Operating System (Os) Loading
53
Flowchart 2.13—No os Loading, Diskette Drive
57
3 Illustrated Parts Catalog
65
Serial Number Location
65
Notebook Major Components
66
Mass Storage Devices
78
Miscellaneous
80
Removal and Replacement Preliminaries
81
Tools Required
81
Service Considerations
82
Preventing Damage to Removable Drives
83
Preventing Electrostatic Damage
84
Packaging and Transporting Precautions
85
Workstation Precautions
86
Grounding Equipment and Methods
87
Typical Electrostatic Voltage Levels
88
5 Removal and Replacement Procedures
89
Serial Number
90
Disassembly Sequence Chart
91
Preparing the Notebook for Disassembly
93
Notebook Feet
98
Memory Module
99
Mini PCI Communications Board
101
Keyboard Cover
104
Keyboard
106
Switch Board
109
Speakers
110
Optical Drive
112
Display Assembly
114
Top Cover
118
Heat Sink
122
Processor
124
Wireless Button Board
126
Diskette Drive
128
Diskette Drive Cover
130
System Board
132
6 Specifications
137
System Dma
152
System Interrupts
153
System Memory Map
158
Connector Pin Assignments
159
Universal Serial Bus
160
External Monitor
163
Conductor Power Cord Set
167
General Requirements
168
Screw Listing
171
