HP Compaq NC4010

Connector Pin Assignments
Maintenance and Service Guide A–7

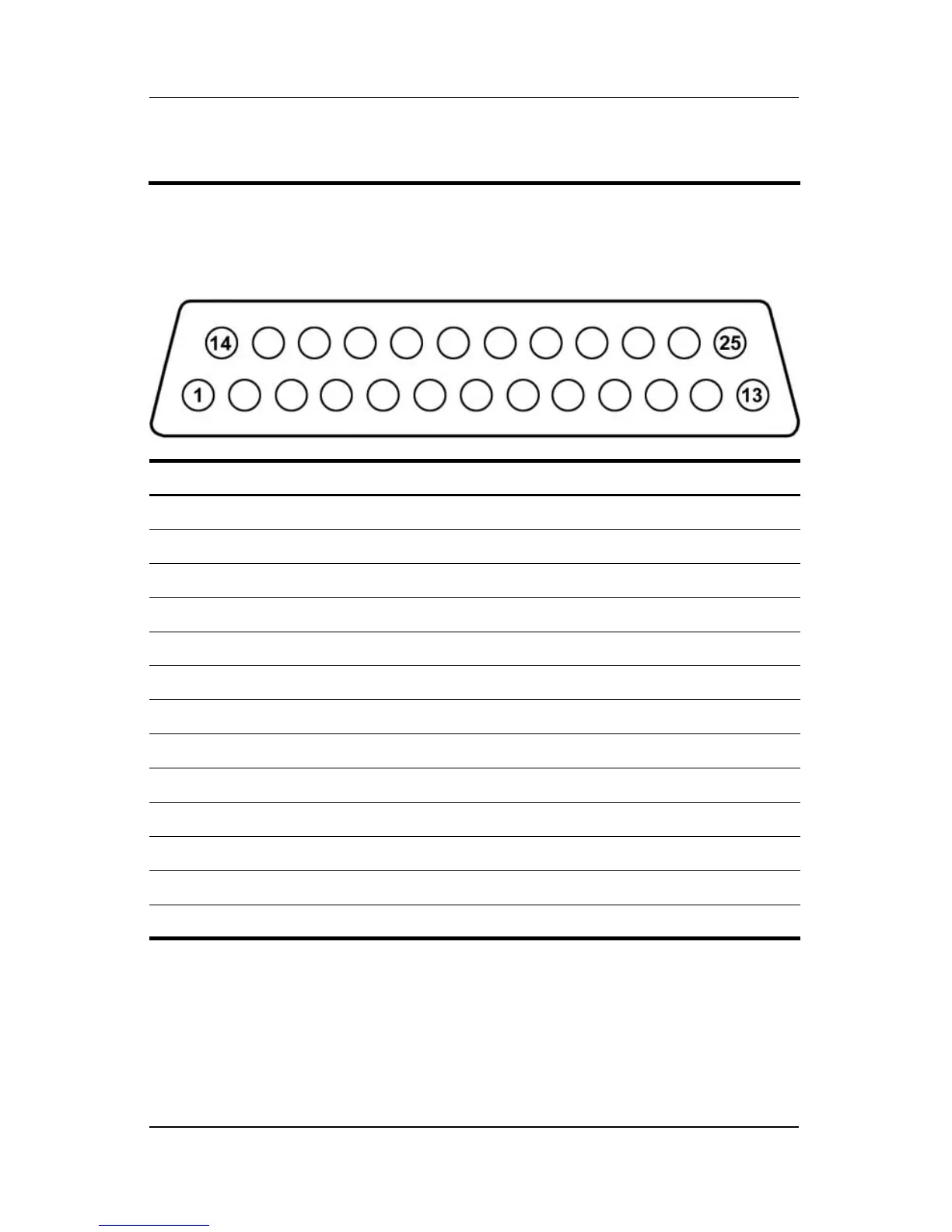

Table A-8
Parallel
Pin Signal Pin Signal
1 Strobe 14 Auto linefeed
2 Data bit 0 15 Error
3 Data bit 1 16 Initialize paper
4 Data bit 2 17 Select in
5 Data bit 3 18 Ground
6 Data bit 4 19 Ground
7 Data bit 5 20 Ground
8 Data bit 6 21 Ground
9 Data bit 7 22 Ground
10 Acknowledge 23 Ground
11 Busy 24 Ground
12 Paper end 25 Ground
13 Select
